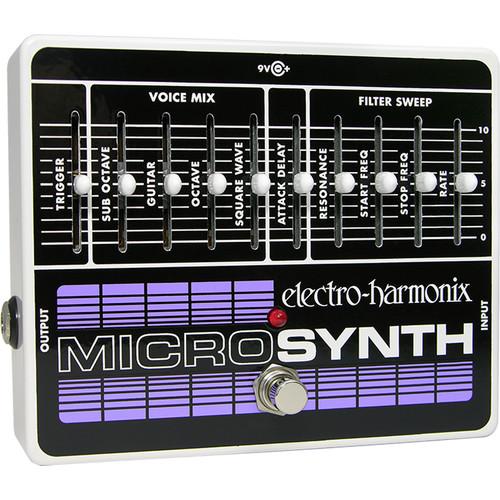

User Manual for Electro-Harmonix Micro Synthesizer Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Micro Synthesizer
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Micro Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Micro Synthesizer from Electro-Harmonix is an analog synthesizer. It features four completely independent and fully mixable voices: Guitar, Octave, Sub-Octave, and Square Wave. The synthesizer can modify the signals with envelope control for a variety of "bowed" and "blown" sounds. In addition, a sophisticated four-slider swept filter control enables you to make highly variable frequency adjustments to the signal. The unit is housed in a tough, compact die-cast chassis and comes with a 9.6 VDC-200BI power supply. Note: WARNING: Your Micro Synthesizer comes equipped with an Electro-Harmonix 9.6DC-200BI power supply (same as used by Boss & Ibanez 9.6 VDC 200mA). The unit requires 55mA @ 9 VDC with a center negative plug. It does not take batteries. Using the wrong adapter may damage your unit and void the warranty. - True bypass, all analog design
- Three-pole analog resonant filter
- Adjustable filter resonance control, and adjustable attack time control for fading-in notes
- Four voice mixer section mixes: sub octave, guitar, octave up, and square wave
- Square wave voice can be used as a distortion tone
- Start and stop filter frequency sliders with adjustable rate for full control over the filter's sweep direction and speed
In the Box Electro-Harmonix Micro Synthesizer Power Supply (US9.6DC-200) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Micro Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix MICRO Specs | Controls and Indicators | 1 x Slider: Trigger
1 x Slider: Guitar
1 x Slider: Sub-octave
1 x Slider: Octave
1 x Slider: Square Wave
1 x Slider: Attack Delay
1 x Slider: Resonance
1 x Slider: Start Frequency
1 x Slider: Stop Frequency
1 x Slider: Rate
1 x Footswitch with LED light | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
DC power jack, 9V power input | | Dimensions | 4.75 x 5.75 x 2.50" (12.1 x 14.6 x 6.4 cm) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
