User Manual for Electro-Harmonix MIG-50 50W Tube Guitar Amplifier Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix MIG-50 50W Tube Guitar Amplifier
- Product category: Guitar Amplifiers Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Guitar Amplifiers
 |
User manual for the Electro-Harmonix MIG-50 50W Tube Guitar Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

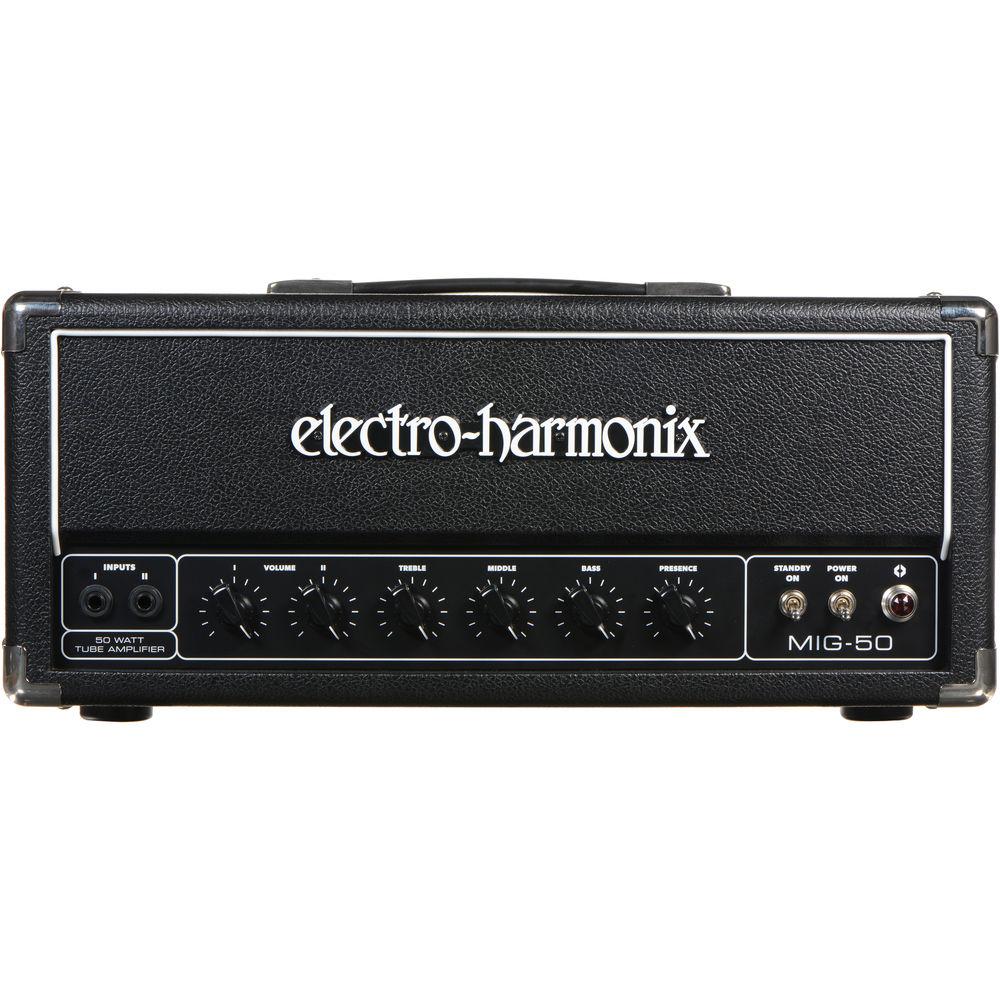

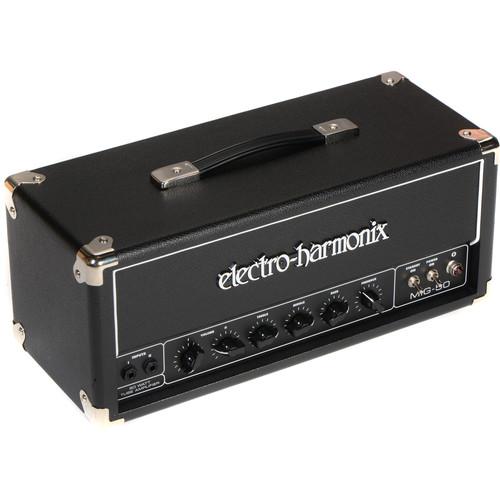

Product description A reissue of the original Sovtek unit with a few updated touches, the Electro-Harmonix MIG-50 is a 50W tube amplifier head intended for use with electric guitar. It sports two channels—one for normal gain, the other for high gain and bright tones—and delivers the powerful tone of the original, heralded amplifier with improved build quality in the jacks, potentiometers, and switches.

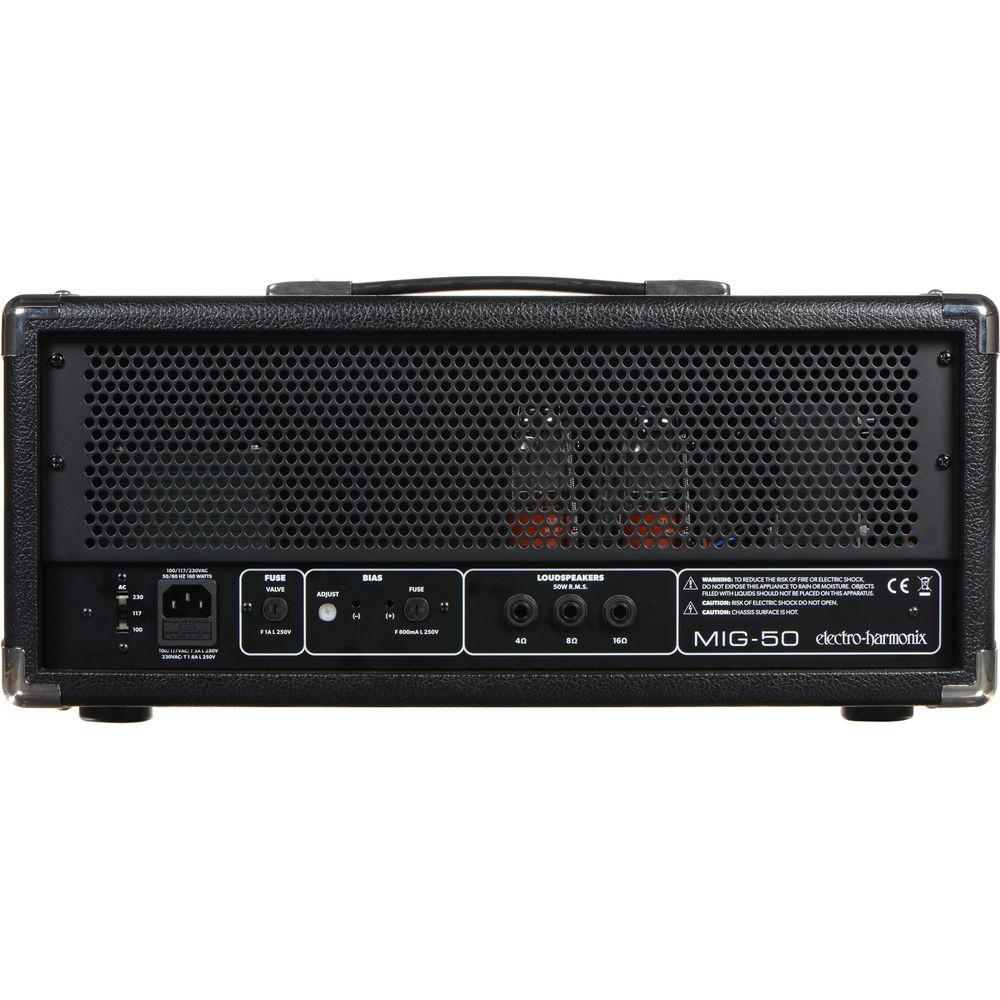

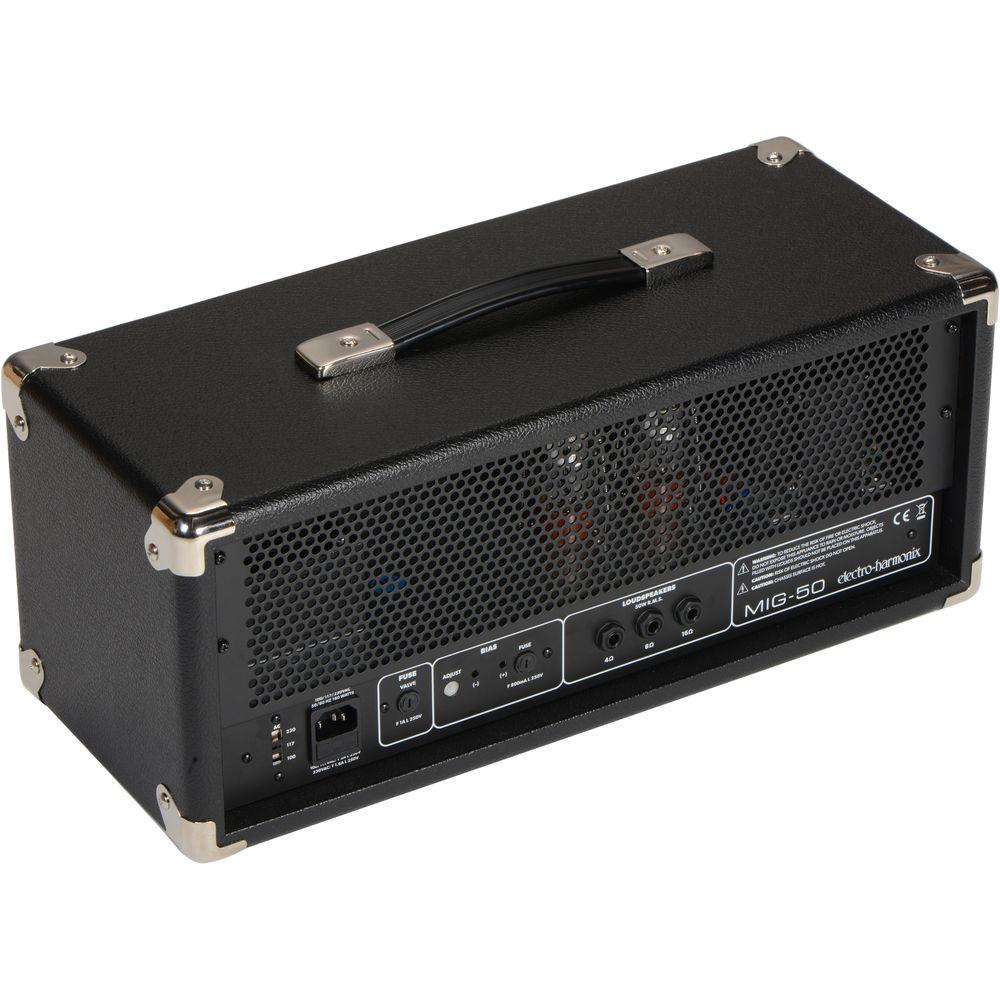

Each channel is accessible through its own separate 1/4" input, and once plugged in, you'll find the controls are relatively simple (volume, bass, middle, treble, and presence), allowing you to use your pedalboard for adding effects and textures. On the amp's back panel, you'll notice three 1/4" speaker outputs, each one suited specifically for four, eight, or 16 Ohm cabinets. Additionally, you'll find external bias controls on the rear of the amp, making calibrating tubes for the head much simpler. The MIG-50 is assembled by hand in the company's New York City factory. - Key Features at a Glance
-
- 50W amplifier head
- 2 channels, each with its own volume control
- Channel 1 is normal, Channel 2 is bright/high gain
- Treble, middle, bass and presence controls
- 2 Tung-Sol 5881 power tubes
- 3 Tung-Sol 12AX7 preamp tubes
- 100V, 117V, 230V, 50/60Hz switchable
- External bias adjustment controls for tubes
- 3 separate speaker outputs for four, eight, or 16 Ohm cabinets
UPC: 683274011813 In the Box Electro-Harmonix MIG-50 50W Tube Guitar Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix MIG-50 50W Tube Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix MIG-50 Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 2 | | Tube Types | 2 x Power 6L6GC/5881
3 x Preamp 12AX7/ECC83 | | Output Impedance | 4/8/16 Ohms Mono | | Effects Loop | No | | Master Volume | No | | Inputs | 2 x 1/4" Mono Instrument | | Outputs | 3 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Presence, Treble
Channel 2: Bass, Channel Volume, Mid, Presence, Treble | | | | Dimensions (WxHxD) | 19.7 x 8.0 x 9.5" / 50.0 x 20.3 x 24.1 cm Amplifier | | Weight | 27 lb / 12.25 kg Amplifier | | | | Package Weight | 31.1 lb | | Box Dimensions (LxWxH) | 22.0 x 11.2 x 10.8" |
