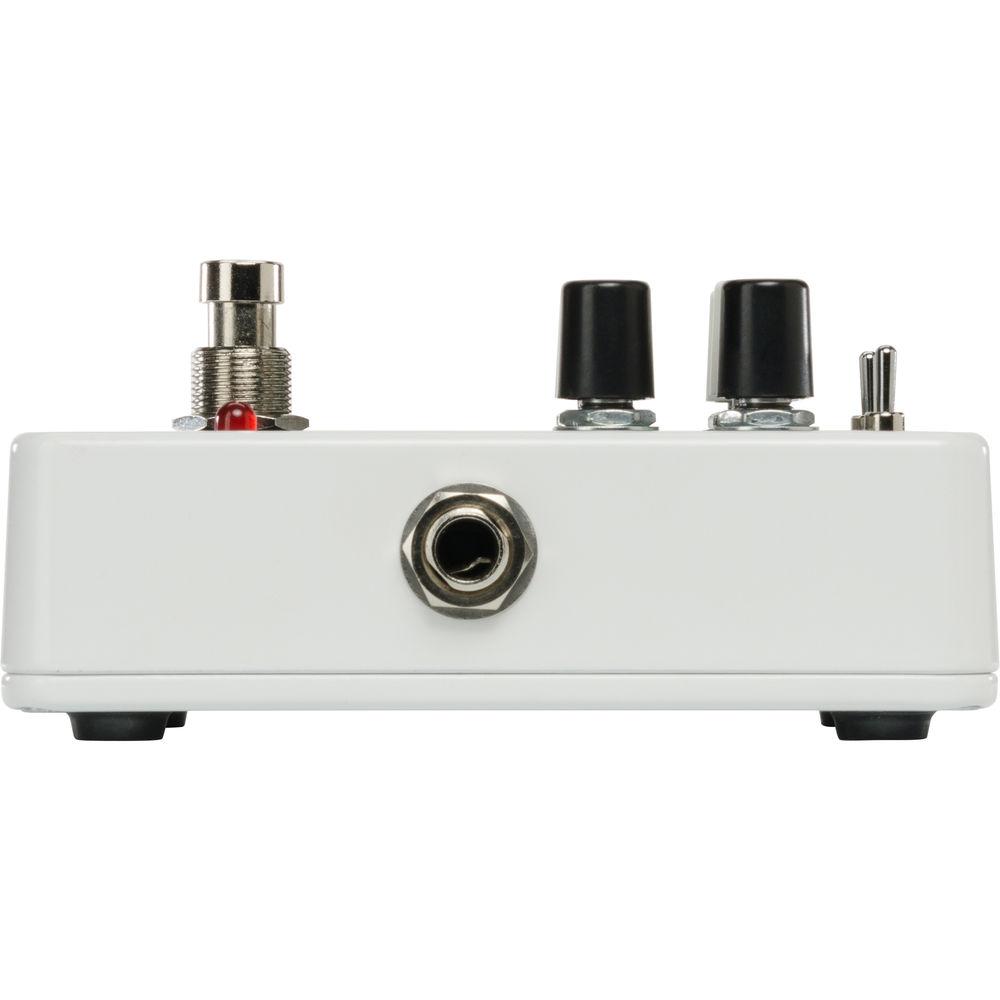

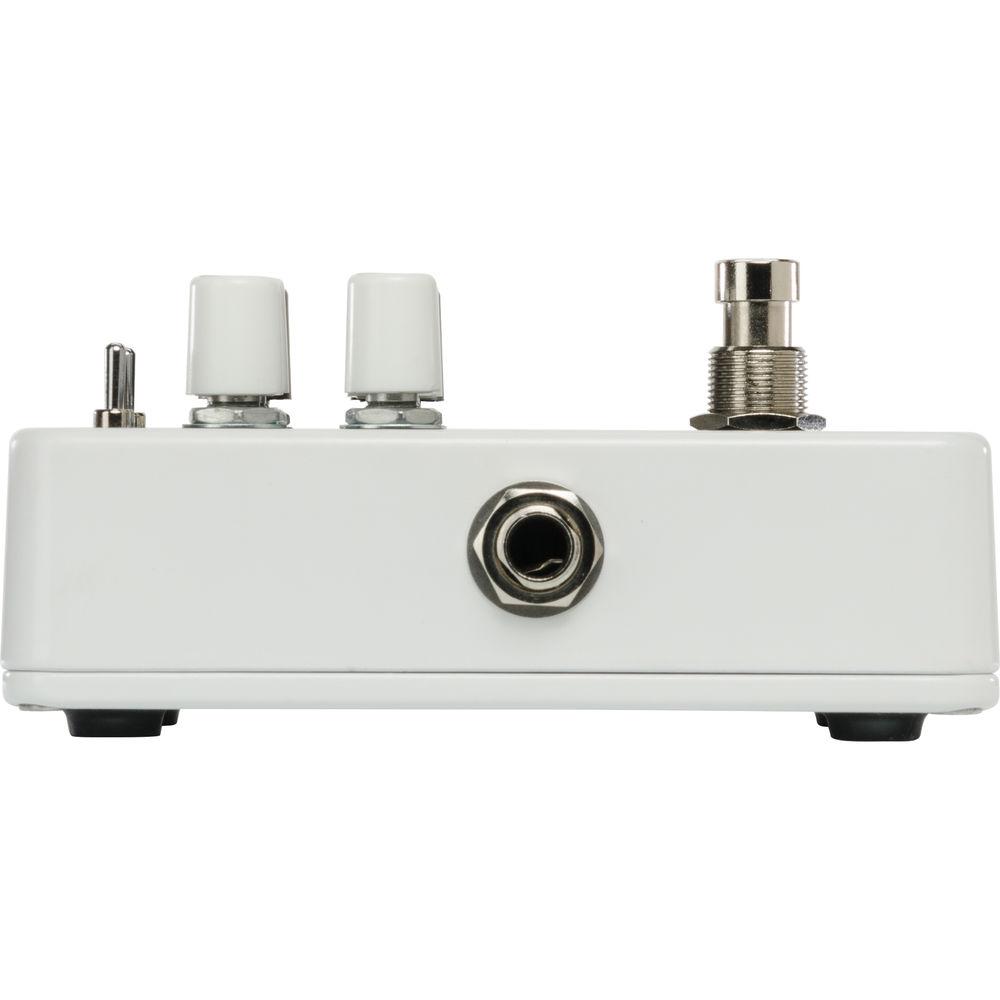

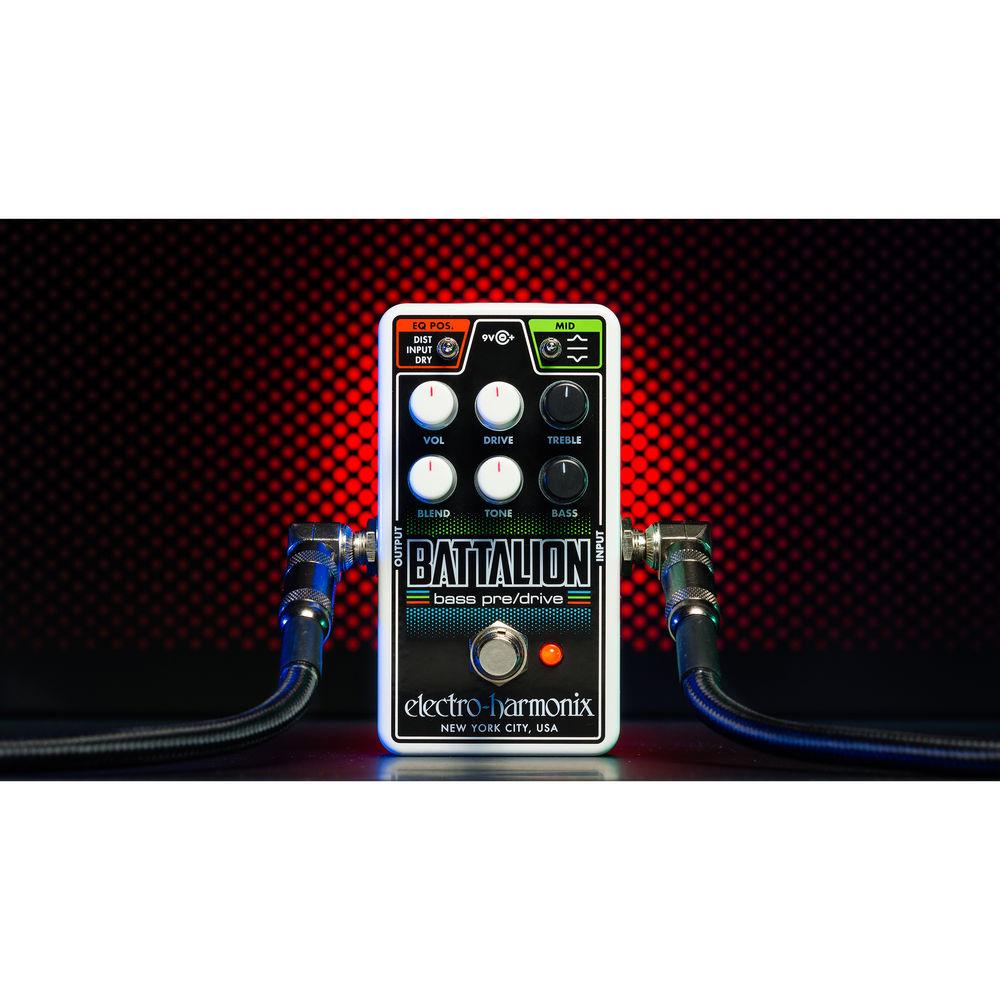

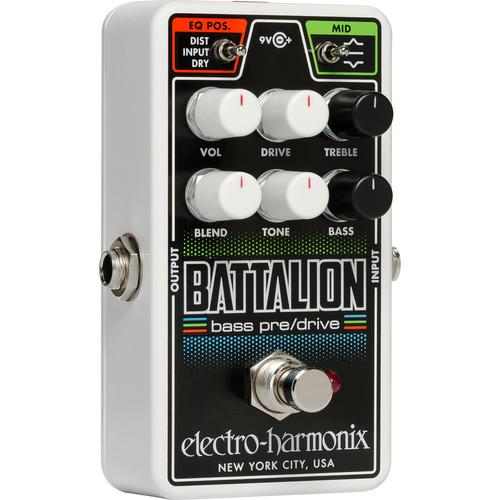

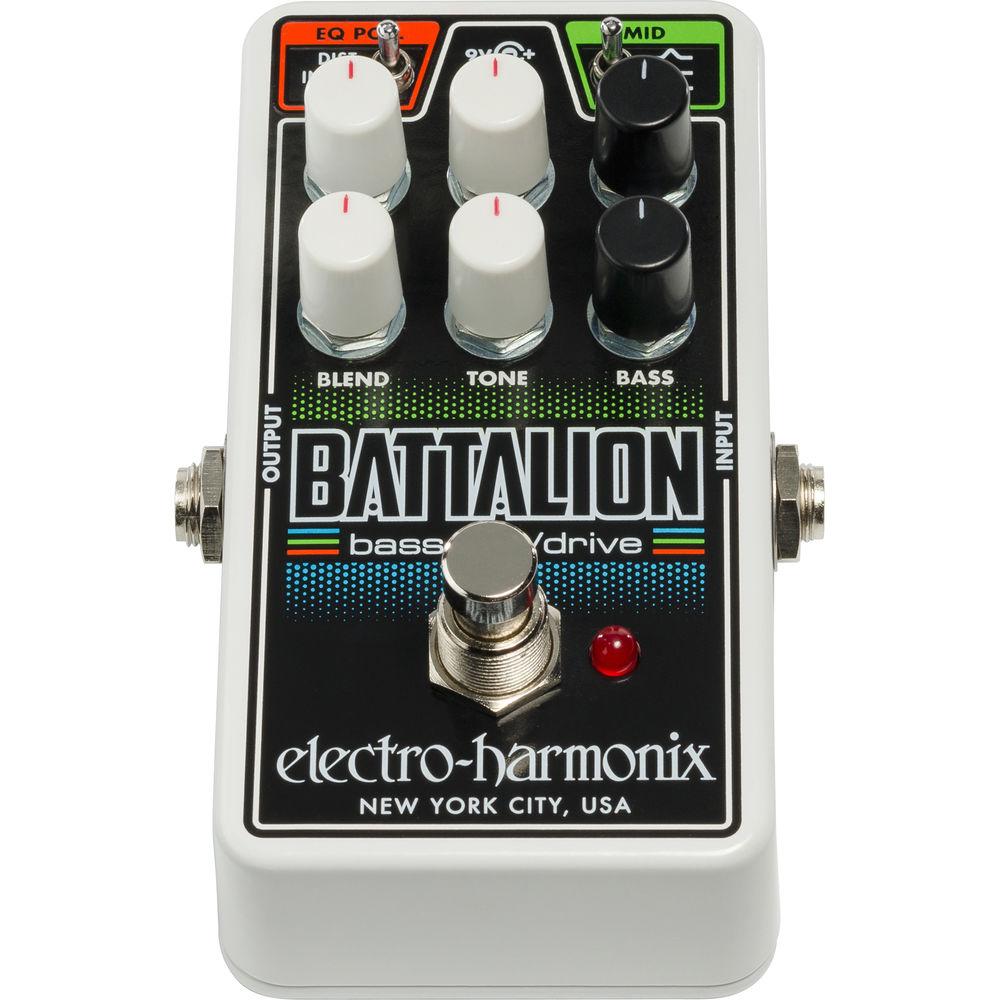

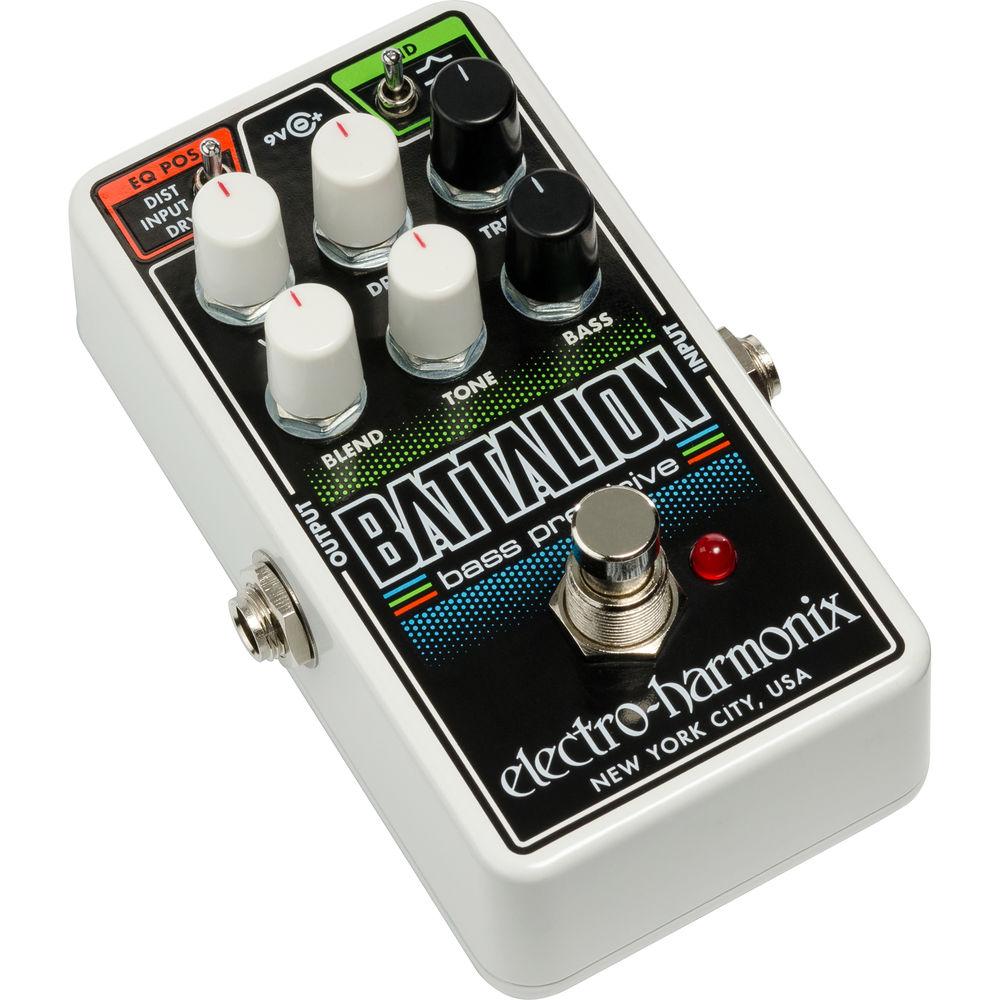

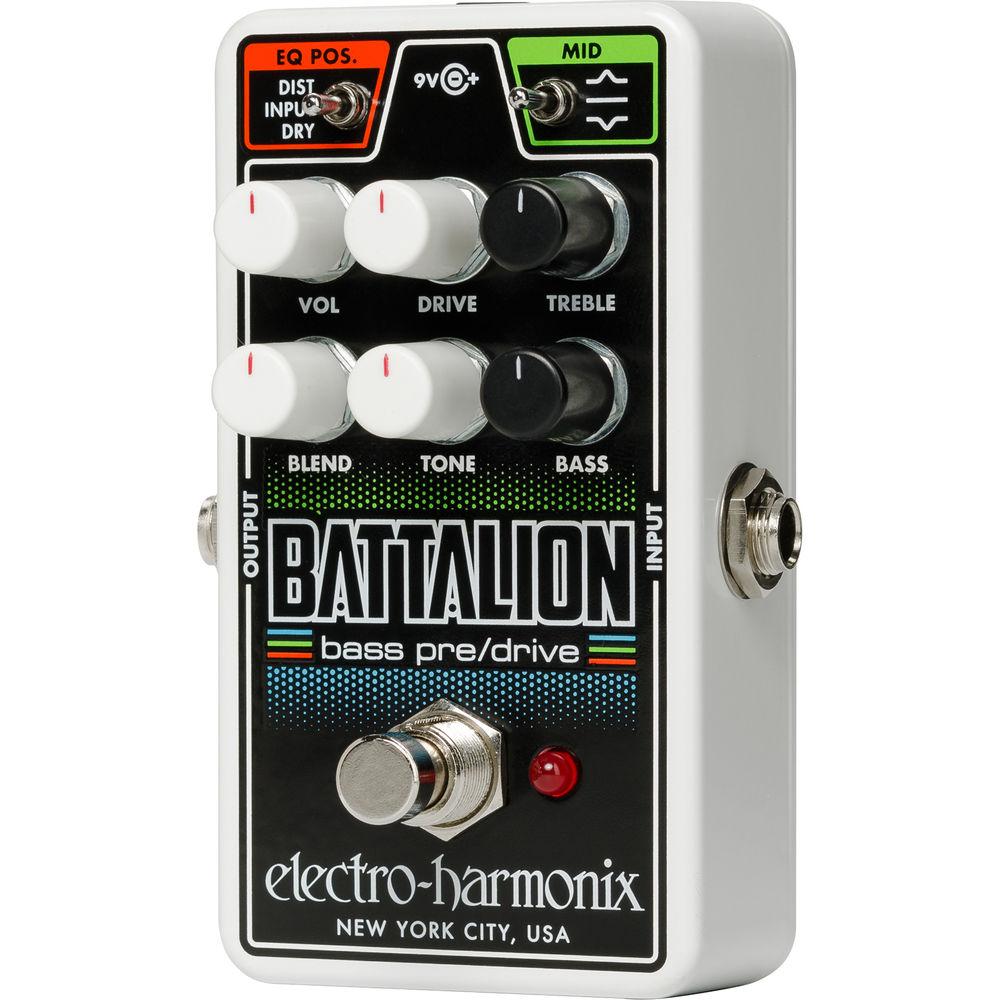

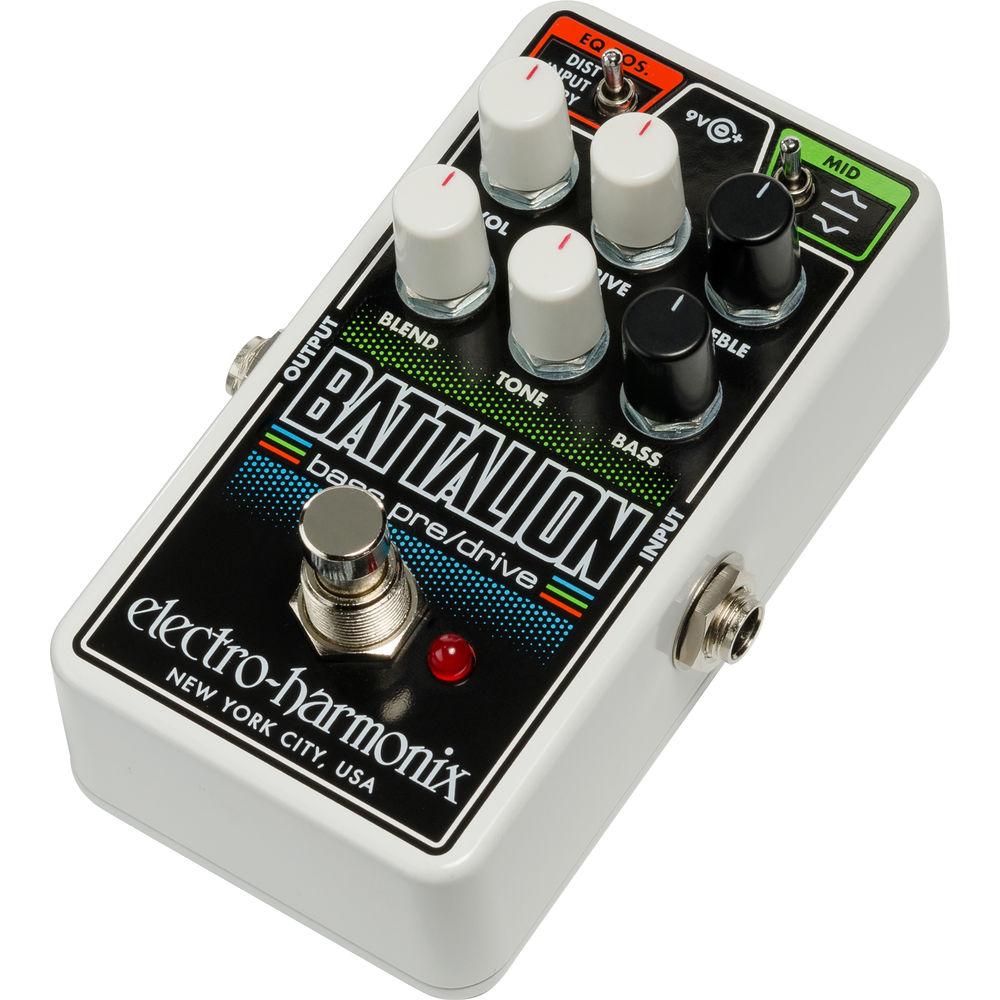

Product description Designed for electric bass players, the Electro-Harmonix Nano Battalion is a bass preamp, overdrive, and EQ pedal. It sports a MOSFET drive circuit that can give you a subtle growl or a heavily saturated overdrive. Set the drive knob however you like, and then mix it in with clean signal using the Blend knob. A Tone knob mitigates brightness in the distorted signal path.
The Nano Battalion's EQ circuit can be switched into the signal path in three different places. You can affect only the drive circuit, the clean signal, or both together by means of the EQ Position switch. The EQ itself sports knobs for bass and treble and a switch for the midrange. Turn the effect on with the engage/bypass footswitch.

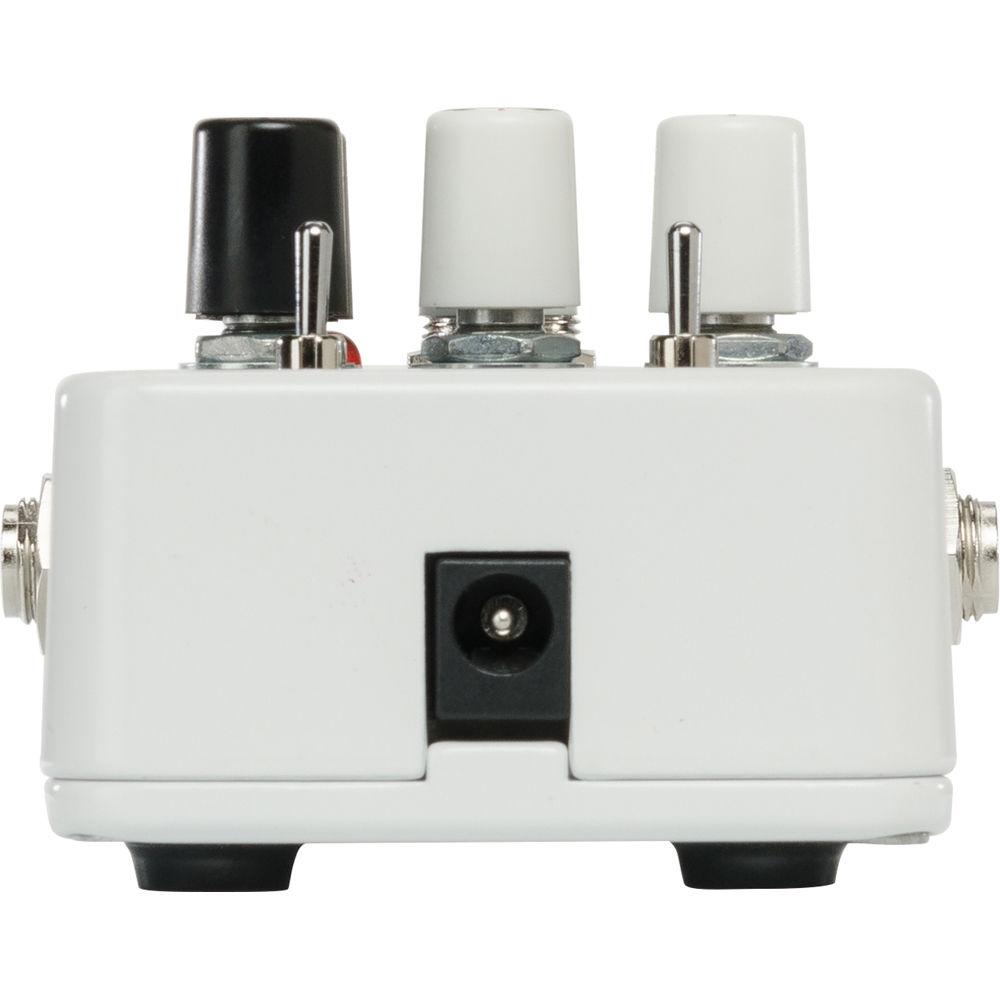

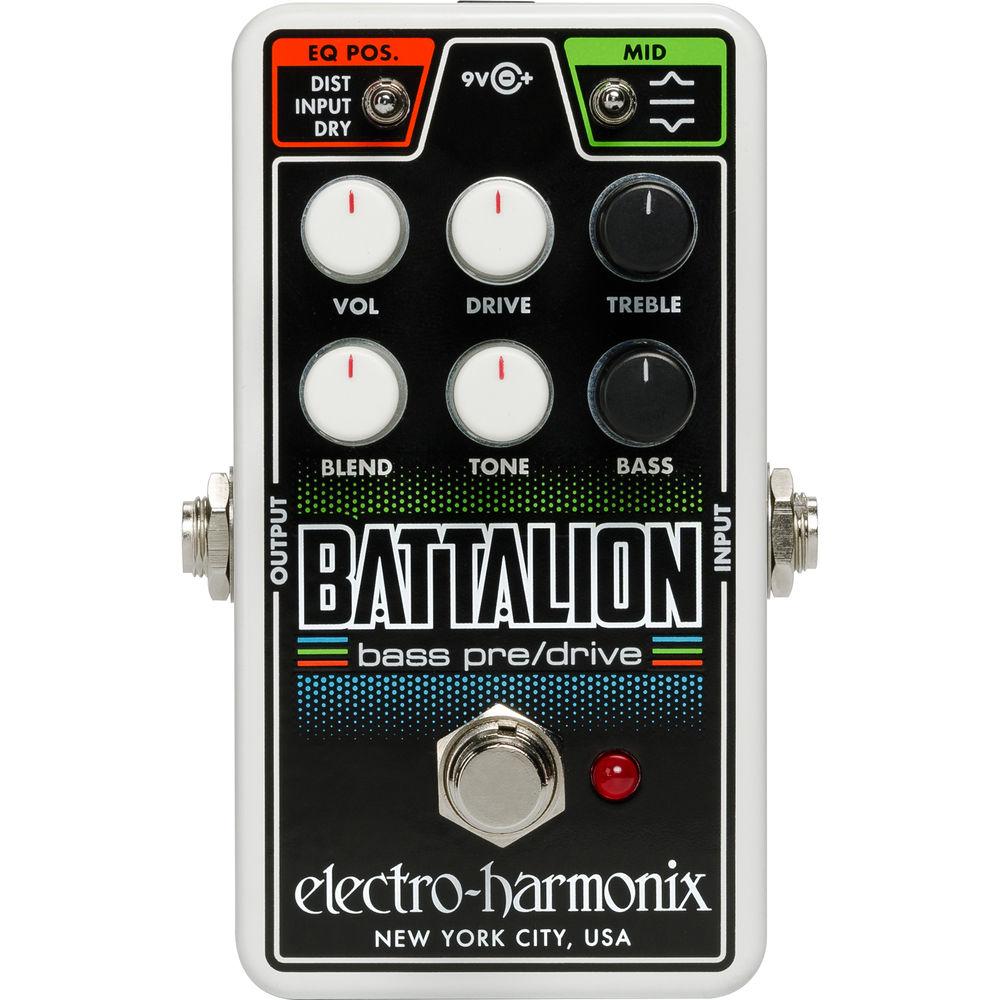

The Nano Battalion accepts 1/4" instrument inputs, and its 1/4" output can provide both unbalanced TS connections to amplifiers or balanced TRS connections to mixing consoles, DI Boxes, and house PA systems. A power supply is included. - Controls at a Glance
-
- Volume knob: sets master output level of the pedal.
- Blend knob: sets the ratio between clean signal and distorted signal. Turn BLEND up for more distorted signal.
- Drive knob: sets the intensity and saturation of the distortion.
- Tone knob: cuts high frequencies from the distortion as you turn the knob down.
- Treble knob: boosts or cuts high end. There’s no effect when the knob is at 50%. This knob boosts or cuts frequencies starting above 1 kHz. This maximum boost/cut is about ±12 dB around 5 kHz.
- Bass knob: control boosts or cuts low end. There’s no effect when the knob is at 50%. This knob boosts or cuts frequencies starting below 200 Hz. This maximum boost/cut is about ±12 dB 60Hz.
- Mid switch: has no effect when the switch is in the middle position. In the upwards position, there is a 9 dB boost around 500 Hz. In the downwards position, there is a 9 dB cut around 500 Hz.
- EQ Position switch: determines where the EQ controls (bass, middle, treble) falls in the Nano Battalion's signal path. In all cases, the Tone control comes immediately after the distorted signal, and the Volume control is last in the signal path. There are three EQ POS modes.
- Bypass footswitch: press the footswitch to toggle between effect on and bypass.
- EQ Position Modes
-
- Distortion mode: the EQ circuit comes after the distortion signal, having a strong effect on its sound. The clean signal is not affected by the EQ at all.
- Input mode: the EQ circuit comes first in the signal path, affecting both the clean signal and the signal fed into the distortion. Boosting frequencies in this mode can help drive the distortion signal to a more saturated tone.
- Dry mode: the EQ affects the clean signal but doesn’t affect the distorted signal at all.
UPC: 683274012186 In the Box Electro-Harmonix Nano Battalion Bass Preamp and Overdrive Pedal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Nano Battalion Bass Preamp and Overdrive Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix Nano Battalion Bass Specs | Controls | EQ Position switch
Mid switch
Volume knob
Drive knob
Treble knob
Blend knob
Tone knob
Bass knob
Bypass/engage footswitch | | Audio Connections | 1 x 1/4" Instrument Input
1 x 1/4" Output, Unbalanced, or Balanced (Self-Selecting) | | Input Impedance | 1 MOhm | | Current Draw | 45 mA at 9 VDC | | Dimensions (W x L x H) | 2.75 x 4.5 x 2.0" / 70. x 115 x 51 mm | | Weight | Not Specified by Manufacturer |
