User Manual for Electro-Harmonix OP Amp Big Muff Pi Distortion Sustainer Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix OP Amp Big Muff Pi
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix OP Amp Big Muff Pi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

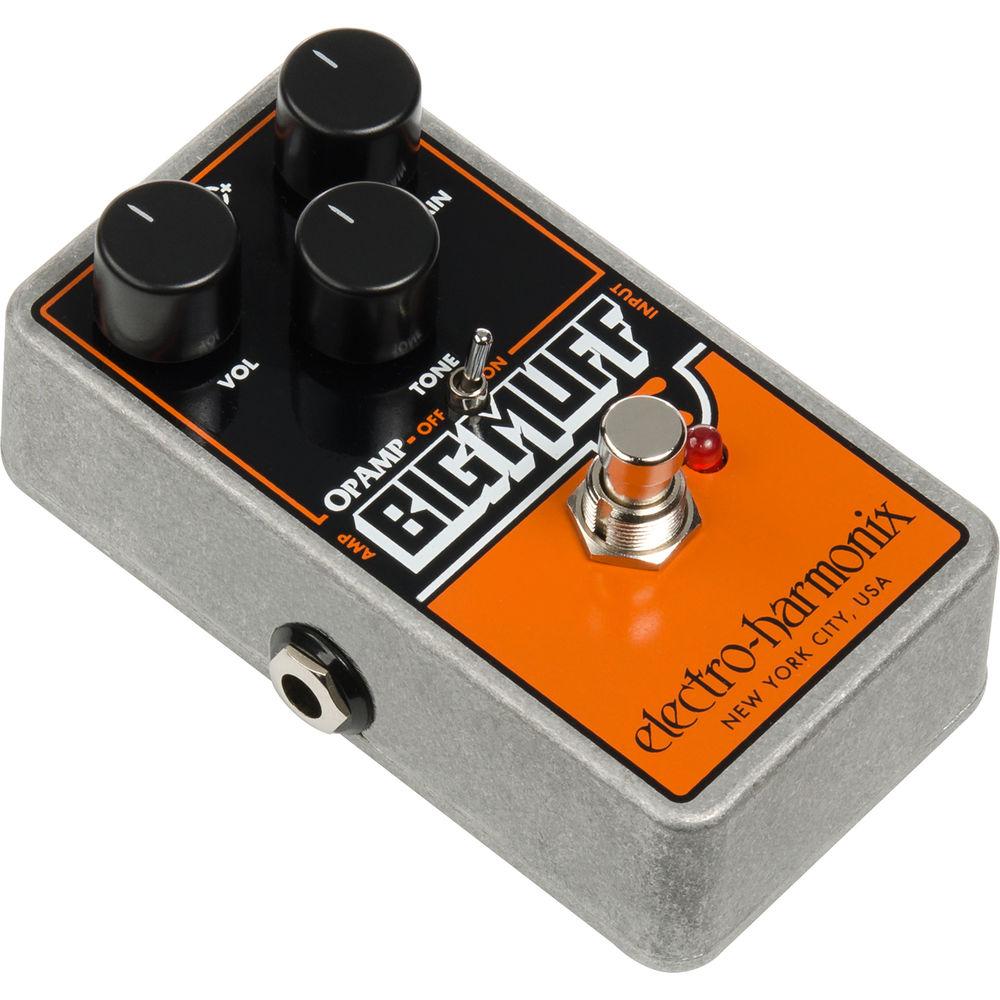

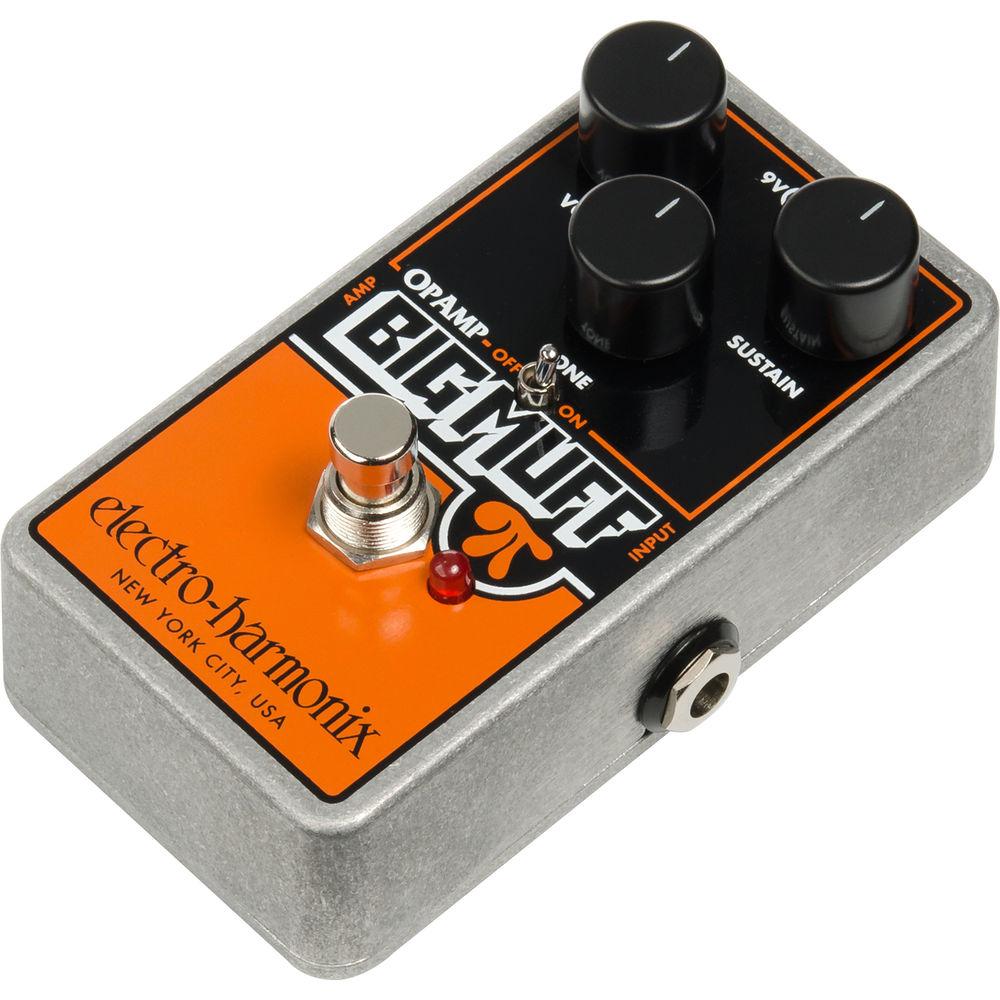

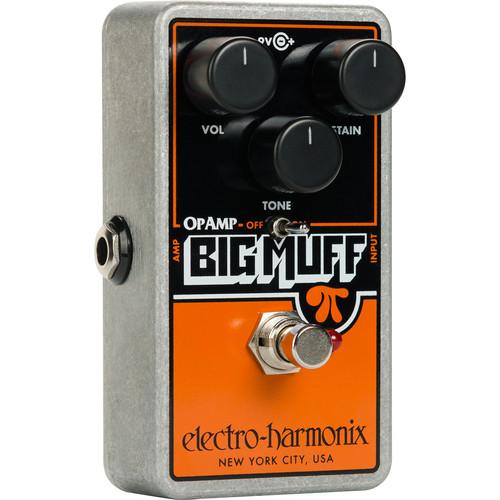

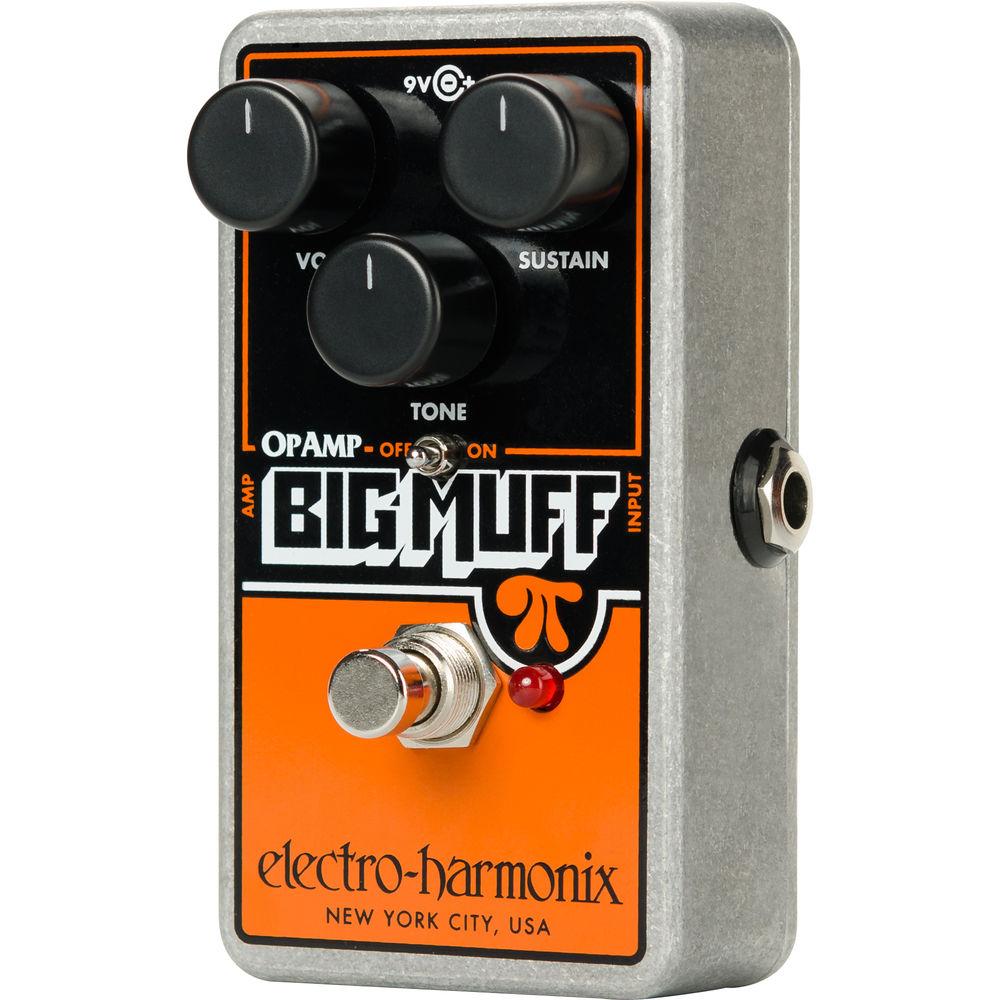

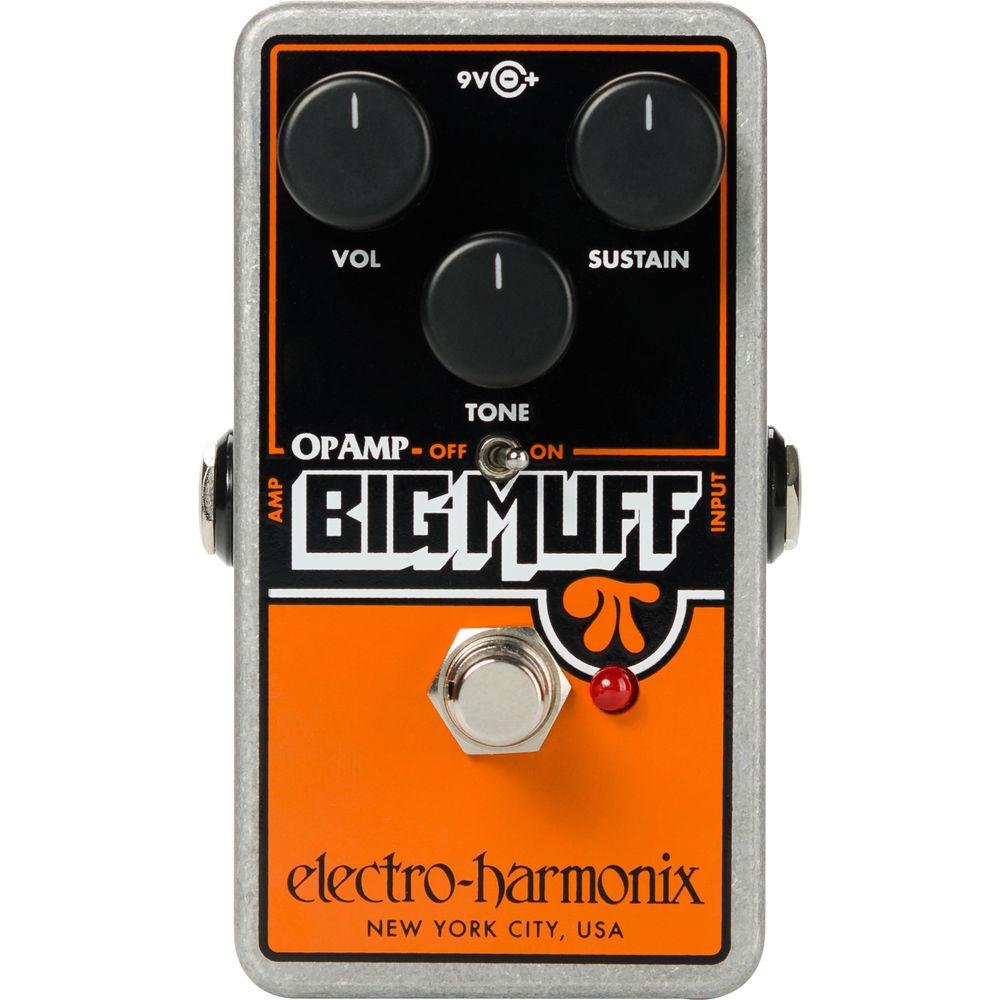

Product description The Electro Harmonix Op-Amp Big Muff is a reissue of a classic fuzz pedal from the 1970s. It aims to give you the iconic and sustaining distortion of that era. Three main controls are at your disposal including a volume knob for overall level, a tone knob to shape your timbre, and of course the fuzz knob with which you can introduce sweet distortion into your signal.
The original pedal relied on op-amps rather than transistors to achieve its signature, needling timbre. This pedal aims to recreate that original V4 circuit as faithfully as possible even as it adds a couple of tweaks to the design. For instance, the tone switch, which takes the tone knob out of the circuit altogether, no longer affects your overall output level. This is a departure from earlier iterations.
The Op-Amp Big Muff Pi utilizes true bypass circuitry, to keep your tone pristine when it is bypassed. The pedal ships with a 9V battery, which can be replaced by unscrewing the backplate and accessing the battery therein. It also works with a 9V AC power adapter, which is available separately. - Key Features at a Glance

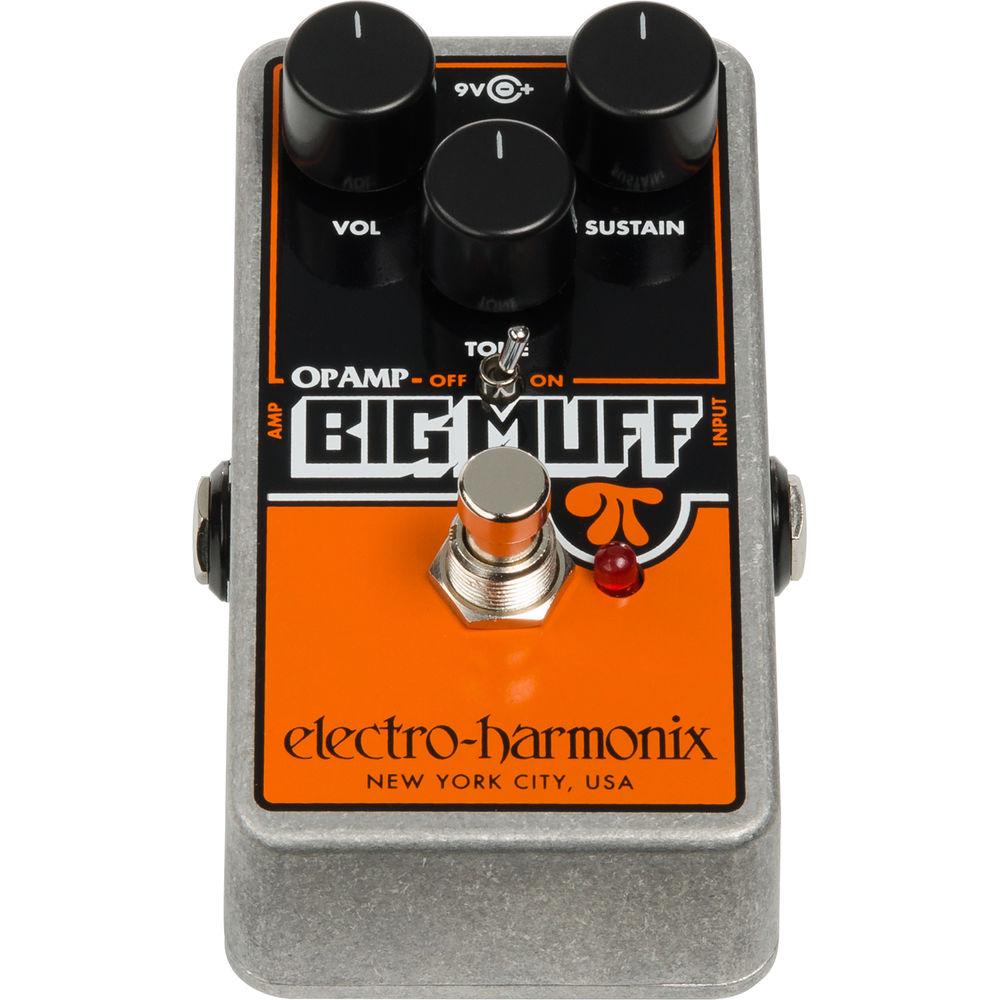

- Volume Knob: This sets the overall the output level.Fuzz Knob: This knob adjusts the amount of sustain and distortion.Tone Knob: This control facilitates a range of sounds, from high treble to deep bass. As you turn the knob clockwise, the treble increases and bass decreases.Tone Switch: This switch removes or adds the tone control from the circuit. This switch has been improved over the original Op-Amp Big Muff, as now the volume remains the same in both positions.Bypass/Engage Footswitch: The Footswitch toggles between effect and bypass modes.
UPC: 683274012087 In the Box Electro-Harmonix OP Amp Big Muff Pi Distortion/Sustainer Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix OP Amp Big Muff Pi Distortion Sustainer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

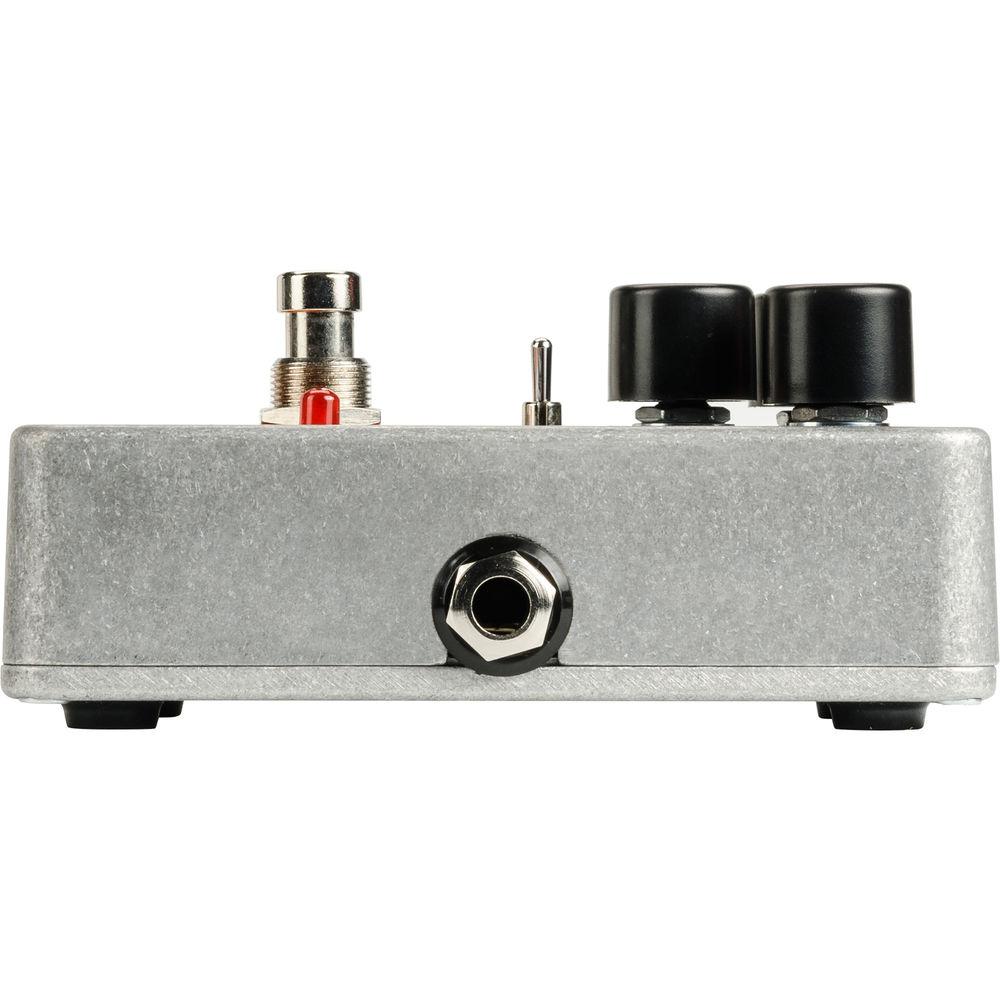

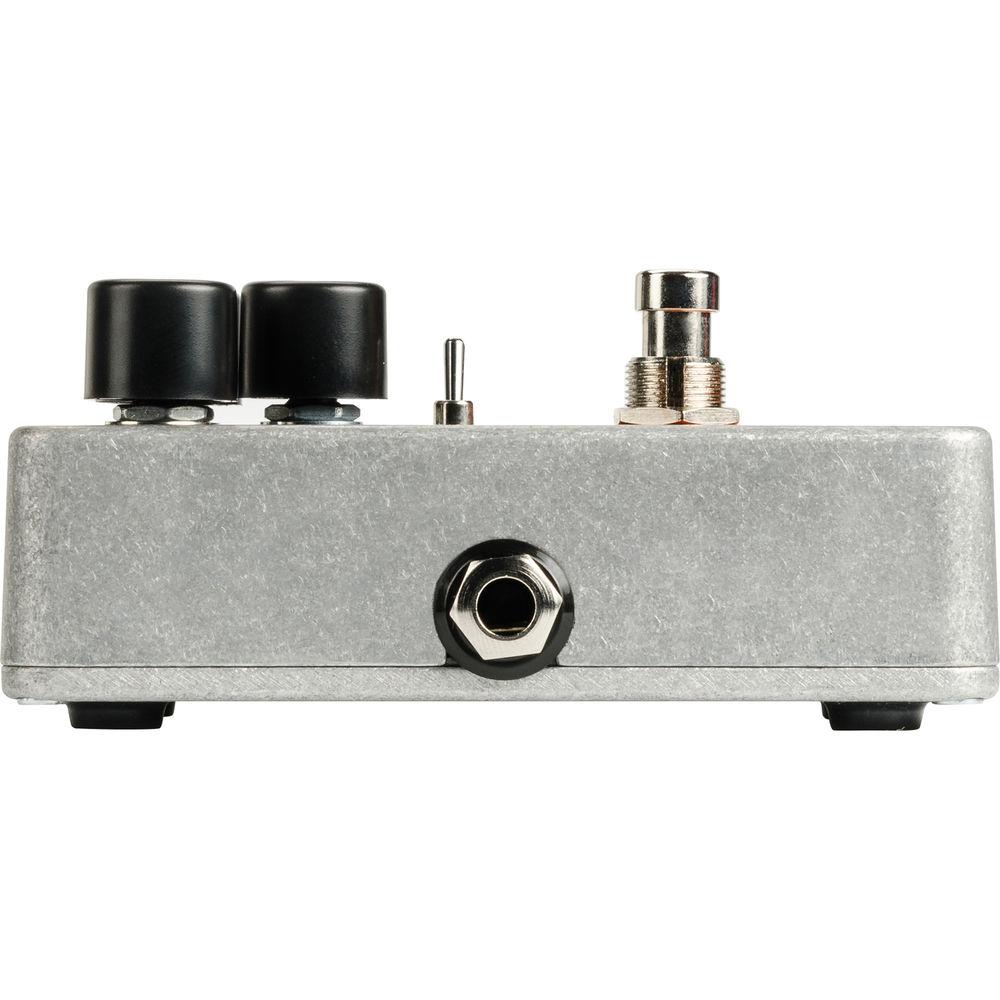

Technical parametersElectro-Harmonix OP Amp Big Muff Pi Specs | I/O | 1/4" instrument input, phone type
1/4" instrument output, phone type | | Controls | Fuzz knob
Volume knob
Tone knob
Tone switch

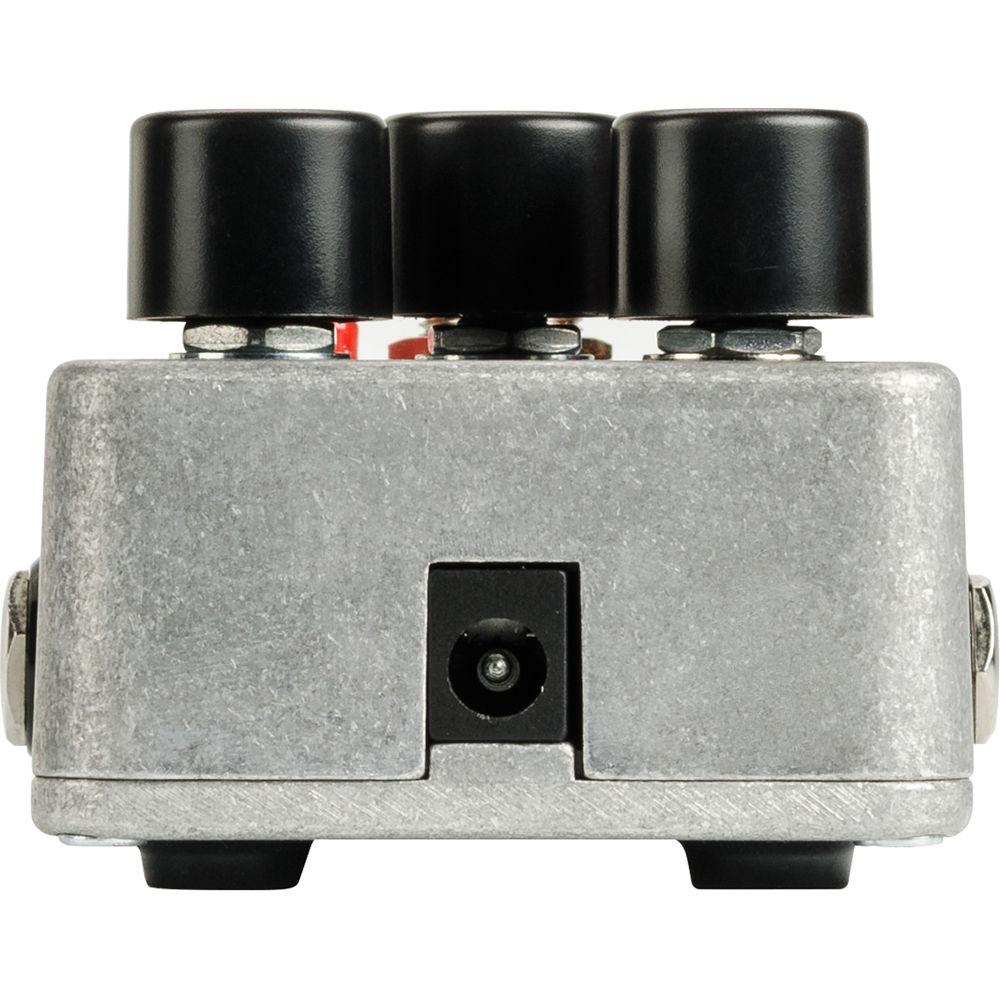

Bypass/engage footswitch | | Bypass | True bypass circuitry | | Power | Battery: 9 V
Power Supply: 9 VDC (available separately) | | Dimensions (W x L x H) | 2.8 x 4.5 x 2.1" / 7.0 x 11.4 x 5.3 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.67 lb | | Box Dimensions (LxWxH) | 5.7 x 3.5 x 2.85" |
