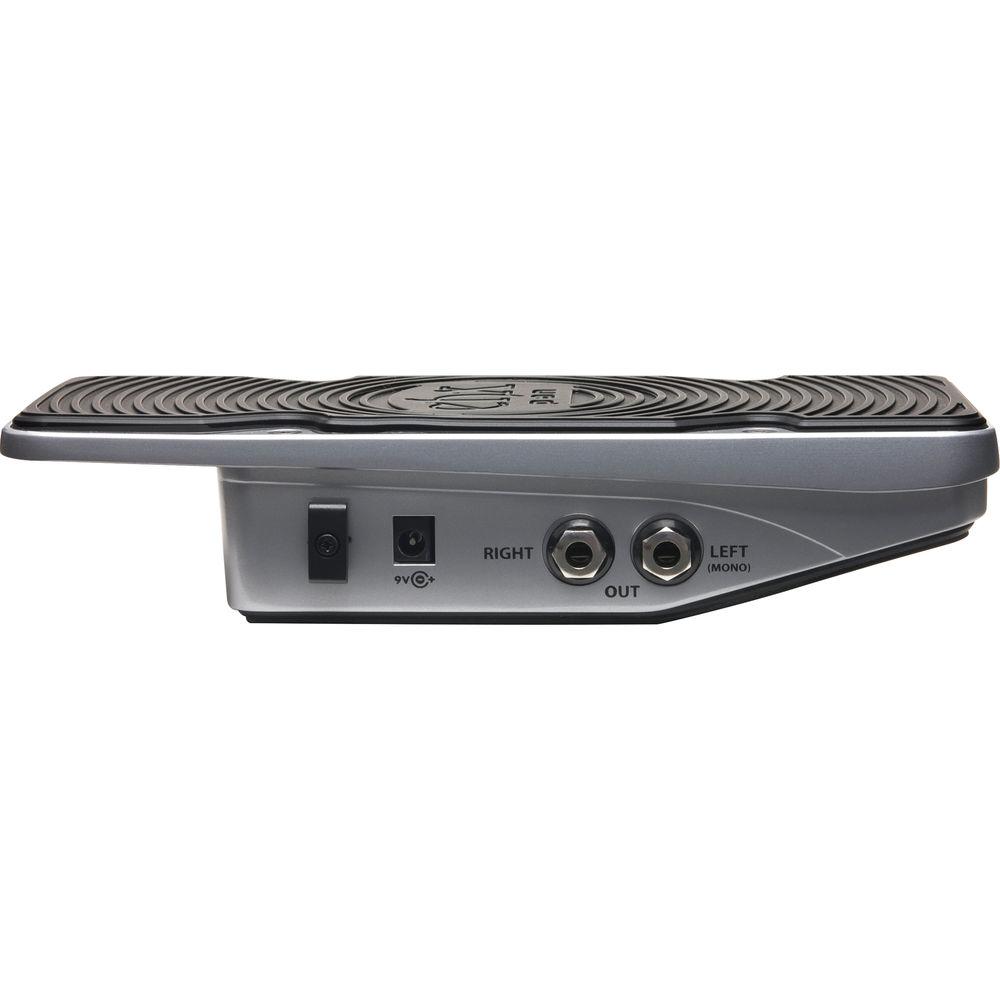

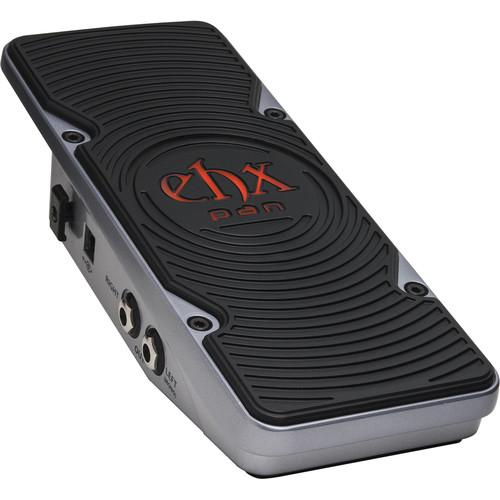

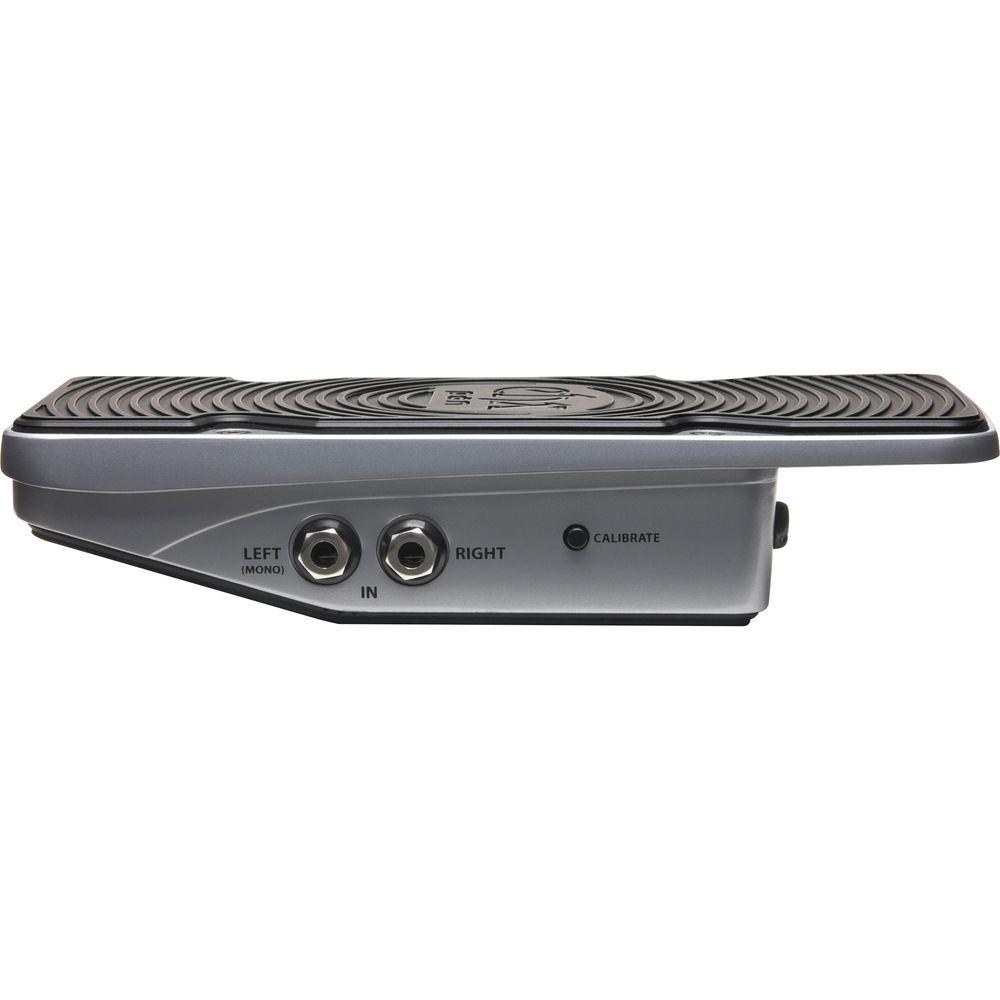

Product description The Pan Pedal from Electro-Harmonix is a guitar pedal for left, right, and center stereo panning. It does not have moving parts nor does it use a potentiometer, optics, or magnetism to sweep the pan controls. The result is a responsive pedal that allows precise control over the stereo imaging of your musical instruments. The Pan pedal can be used to pan one input to two outputs, blend two inputs to one output, or as a mono or stereo volume pedal. - Four routing modes including the Pan, Blend, Mono, and Stereo Volume Pedals
- Accurate and highly responsive
- Instantaneous bypass switching that is completely silent
- No footswitches, gears, or racks to break
In the Box Electro-Harmonix Pan Pedal for Stereo Panning 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Pan Pedal for Stereo Panning in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix PANPED Specs | Control | Calibration button | | Indicators | Light, EHX logo | | Connectors | 1/4" phone jack, left input
1/4" phone jack, left output
1/4" phone jack, right input
1/4" phone jack, right output
DC power jack, 9 VDC input | | Impedance | Input: 2 MΩ
Output: 1 kΩ | | Current Draw | 24 mA | | Current Requirements | 9 VDC, 50 mA | | Power Supply | Internal 9 VDC Battery or 96DC-200BI external power supply | | FCC Compliance | Class B digital device, pursuant to part 15 of the FCC Rules |
