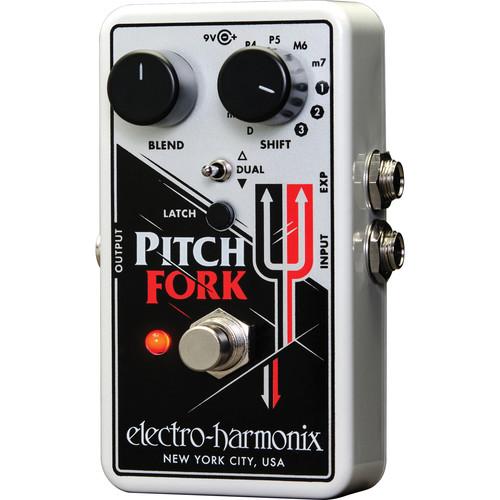

User Manual for Electro-Harmonix Pitch Fork Polyphonic Pitch Shifter Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Pitch Fork Polyphonic Pitch Shifter
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Pitch Fork Polyphonic Pitch Shifter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Pitch Fork Polyphonic Pitch Shifter Pedal from Electro-Harmonix transposes the pitch of your instrument over a range of up to +/- 3 octaves. Its Mode switch allows the pitch to be transposed up, down, or both simultaneously in Dual mode. The Shift knob has 11 settings, and selects the maximum interval of chromatic transposition: D, m2, M2, M3, P4, P5, M6, m7, 1, 2, and 3. The pitch shift amount can be set to a fixed interval or continuously varied by an expression pedal or control voltage. The Pitch Fork's footswitch features two different modes of operation: Latch and Momentary. Momentary allows rapid toggling between effect and bypass for quick blasts of pitch bending, and the Latch controls the pitch shift amount. The Blend knob is a wet/dry control allowing you to create the perfect mix of your dry and transposed signals. UPC: 683274011578 In the Box Electro-Harmonix Pitch Fork Polyphonic Pitch Shifter Pedal 9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Pitch Fork Polyphonic Pitch Shifter Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix FORK Specs | Pitch Control | Rate: 60 ms (user adjustable glissando rate)
Interval D/Detune: m2/Minor 2nd, M2/Major 2nd, M3/Major 3rd, P4/Perfect 4th, P5/Perfect 5th, M6/Major 6th, m7/Minor 7th, 1/1 Oct, 2/2 Oct, and 3/3 Oct | | Controls | 1 x knob, Blend
1 x 11-position knob, Shift
1 x button, Latch mode
1 x switch, Dual mode
1 x footswitch, On/Bypass | | Indicators | LED, status | | Connectors | 1/4" phone jack, input
1/4" phone jack, EXP input
1/4" phone jack, output
DC Power jack, 9 VDC input | | Power Requirement | 9 V internal battery | | Current Draw | 30 mA | | Input Impedance | 2.2 MΩ | | Output Impedance | 680 Ω | | Compliance | FCC | | Power Supply | 9.6 VDC, 200 mA | | Dimensions | 2.75 x 4.50 x 2.10" (70 x 115 x 54 mm) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 6.3 x 5.7 x 3.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
