User Manual for Electro-Harmonix POG2 Polyphonic Octave Generator Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix POG2 Polyphonic Octave Generator Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix POG2 Polyphonic Octave Generator Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

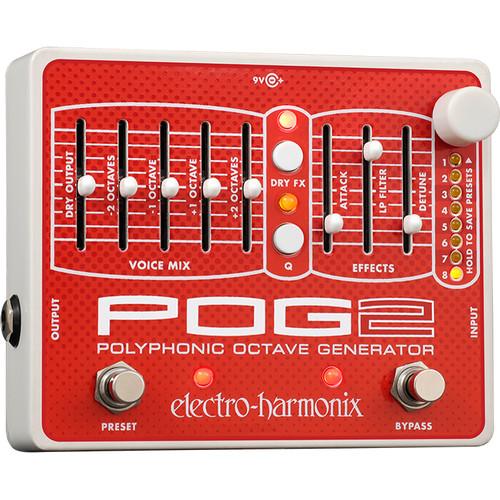

Product description The POG2 Polyphonic Octave Generator Pedal from Electro-Harmonix is a polyphonic octave generator that enables guitarists to conjure everything from the surreal jangle of an 18-string guitar, to rich, thick walls of symphonic sound. This generator can simultaneously generate multiple octaves from your input signal. The POG2 will track every note you play whether you play single notes, arpeggios, or full chords. You can mix together your original "dry signal" with four different octaves: one octave above the original note, two octaves above the original note, one octave below your original note and two octaves below the original note. Additionally you can detune the two upper octaves, slow the attack on all voices including the dry signal, and process the overall tone through a low pass resonant filter with adjustable filter cutoff and selectable Q. The POG2 is fully programmable allowing you to store and load presets for performance and recording. - Programmable 8-preset memory with instant recall
- Four polyphonic mixable voices, and your guitar
- Attack delay slider controls the fade-in speed of the octaves
- Low Pass filter with selectable Q
- Dry signal can be routed through the Attack, LP, and Detune faders
- Flawless polyphonic glitch-free tracking
- Can be daisy chained with other pedals and power supplies
UPC: 683274010977 In the Box Electro-Harmonix POG2 Polyphonic Octave Generator Pedal 9.6VDC-200 Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix POG2 Polyphonic Octave Generator Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix POG2 Specs | Controls | 1 x Slider: Dry Output
1 x Slider: -2 Octaves
1 x Slider: -1 Octave
1 x Slider: +1 Octave
1 x Slider: +2 Octave
1 x Slider: Attack
1 x Slider: LP Filter
1 x Slider: Detune
1 x Knob: Preset
1 x Footswitch: Bypass
1 x Footswitch: Preset
1 x Push-button: Dry FX
1 x Push-button: Q | | Indicators | 8 x LED, Preset
1 x LED, Dry FX Push-Button
1 x LED, Q Push-Button
1 x LED, Bypass FSW
1 x LED, Preset FSW | | Impedance | Input 2 MΩ
Output 800Ω approx. | | Connectors | 1/4 phone jack, input
1/4 phone jack, output
DC power jack, 9 VDC input | | Power Requirements | 9 VDC, 180 mA | | Power Supply | 9.6 VDC, 200 mA | | Dimensions | 4.75 x 5.75 x 2.50" (146 x 121 x 64 mm) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
