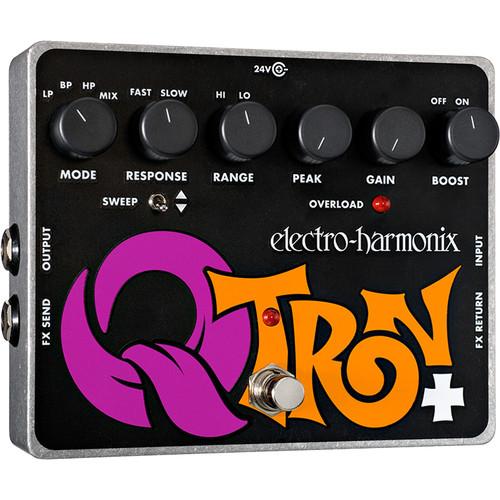

Product description The Q-Tron Plus Envelope Filter Pedal with Effects Loop and Attack Response Switch from Electro-Harmonix is a Q-Tron enhanced envelope controlled filter and is a powerful tool for musical expression. Envelope controlled filters are unique sound modifiers, and the intensity of the effect is controlled by the user's player dynamics. The volume (also known as the envelope) of the musician's notes is used to control a swept filter. As the volume of your notes changes, so does the peak frequency of the filter. The effects loop gives you the ability to place an additional effect, or chain of effects between the Q-Tron Plus's preamp and filter section without changing the envelope drive. This is particularly important with most distortion devices. The FX loop will also fire up your creative juices to try all sorts of combinations in the effects loop. The added Response Switch selects between a slow, smooth, vowel-like attack and the fast, snaked response of the original Q-Tron. The Q-Tron can be used with a wide variety of electronic instruments. - Selectable low pass, band pass, and high pass filters
- Resonant peak control to adjust the filter's Q from subtle to dramatic
- High and low frequency response modes
- Adjustable gain knob and boost switch
- Sweep direction switch for up or down filter sweeps
- Tough and compact die-cast chassis
- Overload LED: Lights when the envelope follower reaches its maximum signal amplitude
UPC: 683274010670 In the Box Electro-Harmonix Q-Tron Plus Envelope Filter Pedal with Effects Loop and Attack Response Switch 24VDC-100mA External Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Q-Tron Plus Envelope Filter Pedal with Effects Loop and Attack Response Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix Q-TRON+ Specs | Controls | 1 x Knob: Gain
1 x Switch: Boost
1 x Switch: Rotary Sweep
1 x Switch: Range
1 x Knob: Peak
1 x Switch: Mode
1 x Footswitch | | Impedance | Input 300 kΩ
Output 250Ω | | Connectors | 1/4" Phone Jack, input
1/4" Phone Jack, output
1/4" Phone Jack, FX Loop send
1/4" Phone Jack, FX Loop return
DC power jack, 24 VDC input | | Power Supply | 24 VDC, 100 mA | | Dimensions | 4.75 x 5.75 x 2.50" (146 x 121 x 64 mm) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.3" |
