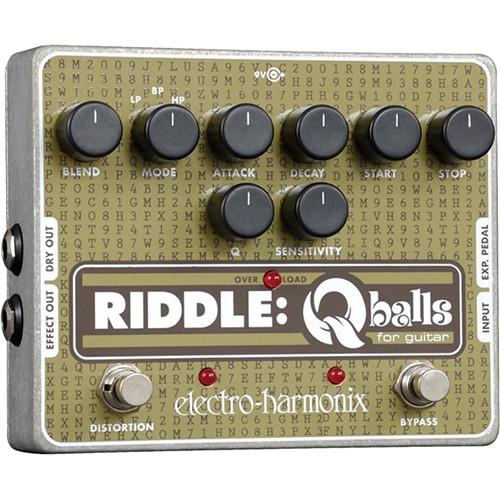

User Manual for Electro-Harmonix RIDDLE Q-Balls Envelope Filter Pedal for Guitar Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix RIDDLE Q-Balls Envelope Filter Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix RIDDLE Q-Balls Envelope Filter Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The RIDDLE Q-Balls Envelope Filter Pedal for Guitar from Electro-Harmonix is a powerful and precise envelope filter pedal for guitar frequency response. It's a unique sound modifier where the intensity of the effect is controlled by the user's playing dynamics. The volume and dynamic of the incoming audio signal are used to control a swept filter. As the volume increases or decreases so does the frequency of the filter. The filter can deliver tight and smooth control over the complete 80 Hz to 5 kHz range. This filter features three filter modes, along with Start, Stop, Attack, Decay, Q, and Sensitivity controls. You can plug in an optional expression pedal to control the filter sweep with your foot. - 80 Hz to 5 kHz frequency response tailored for guitar
- Optional expression pedal control
- Switch selectable analog distortion designed for guitar
- Start and Stop sweep control
- Low Pass, Band Pass, High Pass filter select
- Start and Stop for filter sweep and Q control
- Separate Dry and Effect outputs
In the Box Electro-Harmonix RIDDLE Q-Balls Envelope Filter Pedal for Guitar 9.6VDC-200 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix RIDDLE Q-Balls Envelope Filter Pedal for Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix RIDDLE Specs | Frequency Range | 80 Hz to 5 kHz | | Controls | 1 x Knob: Blend
1 x Switch: Mode (LP, BP, HP)
1 x Knob: Attack
1 x Knob: Decay
1 x Knob: Start
1 x Knob: Stop
1 x Knob: Q
1 x Knob: Sensitivity
1 x Footswitch: Distortion
1 x Footswitch: Bypass | | Indicators | LED, Distortion FSW
LED, Bypass FSW | | Impedance | Input: 710 kΩ
Output: 300Ω | | Connectors | 1/4" phone jack, Input
1/4" phone jack, Expression pedal
1/4" phone jack, Effect output
1/4" phone jack, Direct output
DC power supply, 9.6 VDC input | | Power Supply | 9.6 VDC, 200 mA | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) |
