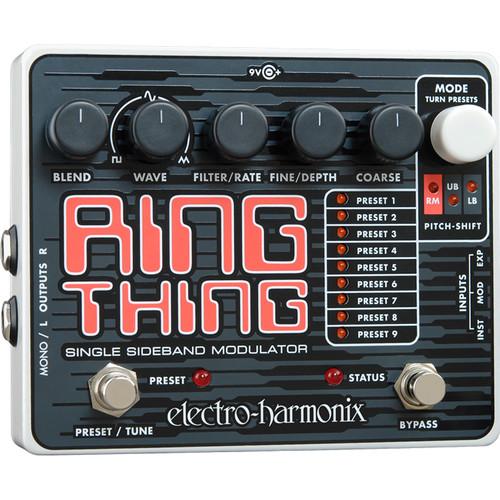

User Manual for Electro-Harmonix Ring Thing Single Sideband Modulator Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Ring Thing Single Sideband Modulator
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Ring Thing Single Sideband Modulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Ring Thing Single Sideband Modulator Pedal from Electro-Harmonix features pitch shifting, preset tuning, selectable waveforms and expression pedal control. The Ring Thing has four selectable modes that utilize either frequency or pitch shift modulation: Ring Modulation, Single Sideband - Upper Band, Single Sideband - Lower Band and Pitch Shift. The Single-sideband modulation is an effect based on Ring Modulation but where only one band is present, making it a more harmonious effect. The modulable pitch shifter can do detune effects, vibrato, chorus, transpose or even whammy when you use an external expression pedal. - Four selectable modes: Ring Modulation (RM), Upper Band Modulation (UB), Lower Band Modulation (LB), Pitch Shift (PS)
- Single Sideband frequency shifter with separate simultaneous upper and lower sideband outputs
- Automatically tune the Ring Modulator to any incoming signal by pressing and holding the PRESET FSW
- The Ring and SSB Modulators can automatically tune to a note you play on your instrument
- The Ring and SSB Modulators can automatically tune to a note you play on your instrument
- Five modulation waveforms: Square, Sine, Ramp up/down, Triangle
- Expression Pedal control over carrier frequency or pitch shift amount
- Optional external oscillator/modulation input
- Mono input / Stereo output in all modes
- Save and load up to 9 presets
In the Box Electro-Harmonix Ring Thing Single Sideband Modulator Pedal 9 VAC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Ring Thing Single Sideband Modulator Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix THING Specs | Modes | Ring Modulation (RM)
Upper Band Modulation (UB)
Lower Band Modulation (LB)
Pitch Shift (PS) | | Controls | 1 x Knob: Mode
1 x Knob: Coarse
1 x Knob: Blend
1 x Knob: Wave
1 x Knob: Filter/Rate
1 x Knob: Fine/Depth
1 x Knob: Coarse
2 x Footswitch: Present/Tune and Bypass | | LED Indicators | Preset, solid/blinking
Bypass footswitch, on/off | | Connectors | 1/4" phone jack mono, INST input
1/4" phone jack, MOD input
1/4" phone jack, EXP input
1/4" phone jack, Mono/L output
1/4" phone jack, Right output
2.1 mm barrel connector, 9 VDC power input | | Sample Rate | 46.93 kHz | | A/D and D/A Conversion | 24-bit | | Audio Bit Rate | 32-bit | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) | | Weight | 1.23 lb (0.56 kg) |
