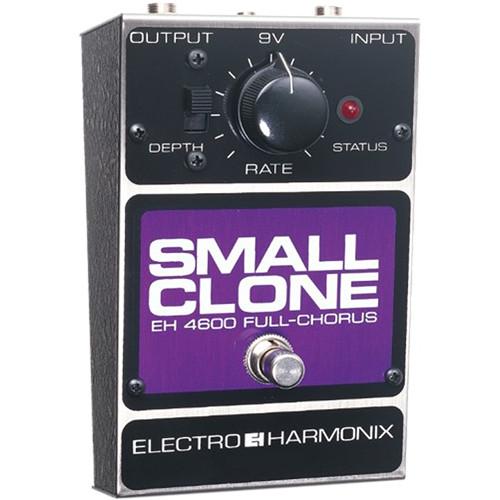

User Manual for Electro-Harmonix Small Clone Analog Chorus Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Small Clone Analog Chorus Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Small Clone Analog Chorus Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Small Clone from Electro-Harmonix is a compact battery-operated analog chorus pedal with Depth and Rate controls and true bypass circuitry. The Depth switch controls the amount of frequency change in the effected signal, while the Rate knob controls the speed of the chorus modulation; the effected signal is then mixed with the dry signal, which produces a doubling effect. The footswitch turns the effect on and off, a status indicated by the LED.
The Small Clone is powered by a 9V battery (included), or an optional 9.6DC-200BI power supply (available separately). UPC: 683274010137 In the Box Electro-Harmonix Small Clone Analog Chorus Pedal 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Small Clone Analog Chorus Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix CLONE Specs | Controls and Indicators | Depth switch
Rate knob
LED: status
On/off footswitch | | Connectors | 1 x 1/4" input
1 x 1/4" output | | Impedance | Input: 220 kOhms
Output: 1.1 kOhms | | Current Draw | 12 mA | | Power | 1 x 9 V battery (included) or 9.6 VDC / 200 mA power supply (available separately) | | Dimensions | 3.4 x 5.2 x 1.6" / 8.6 x 13.2 x 4.1 cm | | Weight | 1.3 lb / 570 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.6 x 4.3 x 4.3" |
