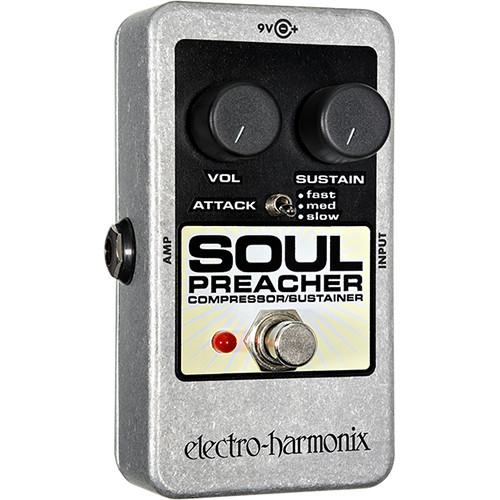

User Manual for Electro-Harmonix Soul Preacher Compressor Sustainer Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Soul Preacher Compressor Sustainer Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Soul Preacher Compressor Sustainer Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Soul Preacher Compressor/Sustainer Pedal from Electro-Harmonix is a compact compressor and sustainer effect pedal with variable parameters allowing extreme or subtle adjustments of the dynamic qualities of your playing. Two knobs and one three-way toggle switch control the output volume, the depth of the effect, and the attack/decay characteristics of the effect. The preamp adds distortion which can be controlled from the guitar's volume level ahead of the compressor. The amount of distortion is level dependent. The Soul Preacher has a maximum gain reduction of 40 dB and a maximum gain of 46 dB. Its standard features allow the Soul Preacher to control the amount of sustain and the matching volume level, as well as the attack/decay. - Sustain control adjusts the amount of sustain
- Volume control sets the output level
- Attack toggle switch provides 3 switch selectable settings of attack: fast, medium, and slow
- Fast attack gives an aggressive hit with about a 20 ms rise time, fast and musical
- Medium attack presents a slower rise time of about 50 ms, smooth and defined
- Slow attack brings a musical 100 ms rise time for a softer
- Tough and compact die-cast chassis
UPC: 683274010663 In the Box Electro-Harmonix Soul Preacher Compressor/Sustainer Pedal 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Soul Preacher Compressor Sustainer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix SOUL PREACHER Specs | Controls | 1 x Knob: Volume
1 x Knob: Sustain
1 x Knob: Attack
1 x Switch: Attack(Fast, Medium, and Slow)
1 x Footswitch | | Indicators | LED, Status | | Connector | 1/4" phone jack, input
1/4" phone jack, AMP output
DC Power Jack, 9.6 VDC input | | Rise Time | Fast, 20 ms
Medium, 50 ms
Slow, 100 ms | | Power Supply | 9.6 VDC, 200 mA | | Power Requirements | 9 V Battery or US96DC-200BI Power Supply (optional) | | Input Sensitivity | 50 mV to 2 V | | Gain Reduction | 40 dB (maximum) | | Maximum Gain | 46 dB | | Dimensions | 2.75 x 4.5 x 2.1" (70 x 115 x 54 mm) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.6 x 3.4 x 3.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
