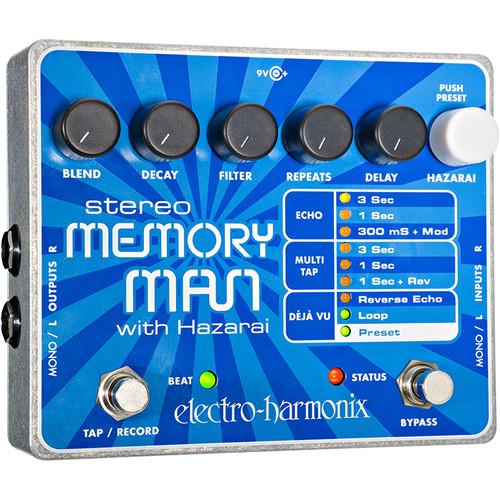

User Manual for Electro-Harmonix Stereo Memory Man with Hazarai Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Stereo Memory Man with Hazarai
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Stereo Memory Man with Hazarai contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Stereo Memory Man with Hazarai Pedal from Electro-Harmonix is a digital delay pedal with three different types of echoes and a full-fledged looper, all of which work in true stereo. The Stereo Memory Man is connected via 1/4" Mono/Left, and Right inputs and outputs connectors. This pedal features five knobs to control Blend, Decay, Filter, Repeats, and Delay as well as the Mode Preset Hazarai selector.
Only the included US96DC-200BI Power Supply should be used with this pedal. This pedal does not use batteries. - 30 second stereo looper with continuous overdubbing, reverse, speed adjust, and tempo only adjust
- Up to 3 seconds of stereo echo with adjustable reverberant washes
- Up to 3 seconds of stereo multi-tap delay with adjustable number of taps and taps amplitude envelope
- Up to 300 mS stereo echo with modulation
- Up to 3 seconds of intelligent reverse echo
- Adjustable low pass or high pass filter available in every mode
- Ping pong delay when used as mono input to stereo output
- Tap tempo footswitch for setting the delay time in every mode
- 8 user presets to save and recall
- Tough and compact die-cast chassis
In the Box Electro-Harmonix Stereo Memory Man with Hazarai Pedal US96DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Stereo Memory Man with Hazarai Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix STEREO HAZARAI Specs | Modes | 3 Second Echo Mode
1 Second Echo Mode
300 mS plus Mod Echo Mode
3 Second Multi-Tap Mode
1 Second Multi-Tap Mode
1 Second Multi-Tap plus Reverse Mode
DÉJÀ VU-Reverse Echo mode
Reverse Echo Mode
Loop Mode | | Controls | 1 x Knob: Hazarai
1 x Knob: Decay
1 x Knob: Repeats
1 x Knob: Delay
1 x Knob: Filter
1 x Knob: Blend
1 x Footswitch: Tap/Record
1 x Footswitch: Bypass | | Indicators | LED, Beat
LED, Status | | Preset | 8 x Mode | | Connectors | 1/4" Phone jack, Mono/L and R input
1/4" Phone jack, Mono/L and R output
DC Power jack, 9 VDC input | | Impedance | Input: 2 MΩ | | Power Supply | 9.6 VDC, 200 mA | | Sample Rate | 46.88 kHz | | A/D and D/A Conversion | Bit Resolution: 24 bits | | Audio Bit Rates | Delay Resolution: 32 bits
Looper Resolution: 32 bits | | Dimensions | 4.75 x 5.75 x 2.50" (121 x 146 x 64 mm) |
