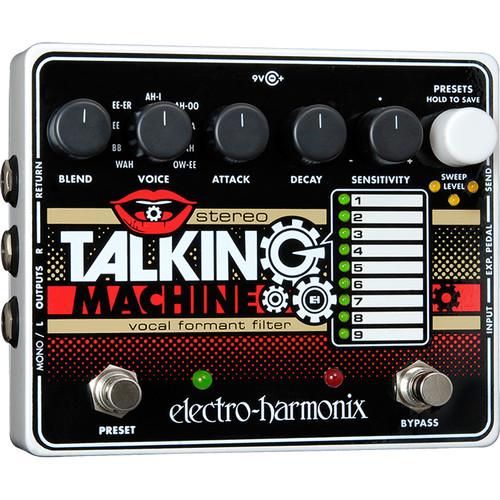

User Manual for Electro-Harmonix Stereo Talking Machine with Vocal Formant Filter Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Stereo Talking Machine with Vocal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Stereo Talking Machine with Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Stereo Talking Machine with Vocal Formant Filter from Electro-Harmonix is a customizable envelope-controlled digital vowel filter. The Stereo Talking Machine (STM) utilizes multiple moving filters allows your guitar to create growling, gurgling, and snarling sounds. Nine selectable Voices deliver vowel sounds such as AH-OO and OW-EE, as well as Bassballs and wah-type dynamic filters. The Voices can be shaped with individual Attack and Decay controls while Sensitivity adjusts the envelope response. The resulting effects mimic characteristics of human speech and create sounds that are both organic and harmonically rich. The Stereo Talking Machine possesses true stereo outputs as well as an Effects Loop. An Expression Pedal input provides real time control over filter sweeps, while nine preset locations let you store and recall your selected programs. Each voice option in the STM sweeps between two distinct filter settings, mimicking the way a human mouth moves to form particular vowel sounds. The direction of the filter sweep can be reversed using the Sensitivity knob. The WAH and BB voice options simulate a classic wah-wah pedal filter and the EHX Bassballs filter respectively. - Nine selectable voices: Seven human vowel filter combinations, a classic wah-wah filter, and the legendary dual band filter of the EHX Bassballs
- Ability to reverse the sweep of each voice, doubling your sound options
- Attack/Decay knobs to separately control the rise and fall speeds of the filter sweep
- Sensitivity control to adapt the effect's response to your playing style
- Stereo Outputs for true stereo imaging and panning
- Expression Pedal option to manually control filter sweep
- Programmable distortion to make your guitar really growl
- Programmable internal LFO for automatic filter modulation
- 9 fully programmable presets
UPC: 683274011165 In the Box Electro-Harmonix Stereo Talking Machine with Vocal Formant Filter AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Stereo Talking Machine with Vocal Formant Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix TALK Specs | LED Indicators | 2 x Sweep Level: Orange
1 x Bypass Footswitch: Red
1 x Preset Footswitch: LED ladder | | Knobs | 1 x Knob: Blend/Volume
1 x Knob: Voice Type/Fuzz Tone
1 x Knob: Attack/Fuzz Gain
1 x Knob: Decay/LFO Rate
1 x Knob: Sensitivity (with voice polarity)/LFO Depth/Shape | | Switches | Presets Encoder/Auxiliary Toggle Encoder
Bypass footswitch
Preset footswitch/Auxiliary Edit footswitch | | Connectors | Input
Send/Return
Left mono output
Right mono output
EXP pedal
2.1 mm barrel connector, 9 VDC power | | Sample Rate | 46,875 Hz | | A/D and D/A Conversion | 24-bit | | Audio Bit Rate | 32-bit | | Impedance | Input Jack:
Input: 2.2 MΩ
Return: 2.2 MΩ
Output Jack:
Mono/Left: 220 Ω
Right: 1.1 kΩ
Send: 1.1 kΩ | | Power Requirements | 9 - 9.6 VDC @ 200 mA with a center negative plug | | Current Draw | 185 mA | | Dimensions | 5.5 x 4.5 x 1.5" (13.97 x 11.43 x 3.81 cm) | | Weight | 1.31 lb (0.6 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.3" |
