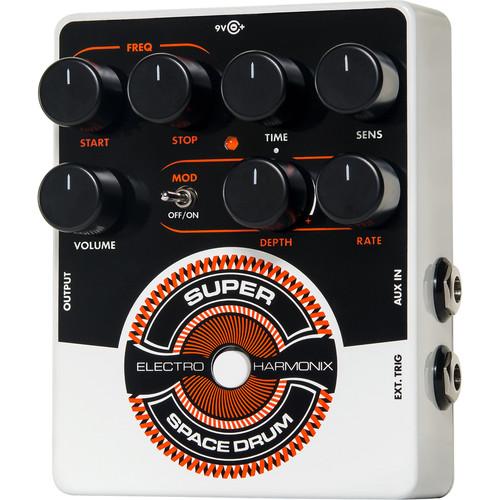

User Manual for Electro-Harmonix Super Space Drum Analog Synth Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Super Space Drum Analog Synth
- Product category: Electronic Drums Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Electronic Drums
|
User manual for the Electro-Harmonix Super Space Drum Analog Synth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description Announcing New Pedals from Electro-Harmonix Read More rxzaybaczz A faithful recreation of a classic 1979 unit, the Super Space Drum from Electro-Harmonix is an analog drum synth in a pedal housing. It creates a signal which you can trigger via the on-board push button or an external non-MIDI drum pad (available separately). Furthermore, you can manipulate that signal using a dedicated modulation section.
Whereas the Electro-Harmonix Crash Pad—a similar synthesis unit—reaches higher registers, the Super Space Drum gets tones as low as 20 Hz; as such, you can achieve kick drum and tom sounds from this unit. Frequency controls allow you to select how deep the resulting sound will be, while a Time knob controls how long it the note will sustain. With these parameters, you can create sounds from the natural to the alien with the twist of your fingers. - Auxiliary Input
- The Super Space Drum features an auxiliary input which allows you to gate external instruments through the pedal's trigger—either externally or through the push button; you can even sound this unit through (non-MIDI) sequencers and DAWs
- You Wield the Power
- This unit comes with its own power supply, but it also accepts a 9V battery
UPC: 683274011752 In the Box Electro-Harmonix Super Space Drum Analog Synth Pedal EHX 9.6DC-200mA Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Super Space Drum Analog Synth Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix SSDRUM Specs | Controllers | FREQ Controls- START Knob: Sets starting point of frequency sweep, 20 Hz to 4 kHz
- STOP Knob: Sets ending point of frequency sweep, 20 Hz to 4 kHz
TIME Knob: Controls how long sweep lasts from START to STOP, 40 ms to 4 seconds
SENS Knob: Controls sensitivity of external trigger
VOLUME Knob: Controls volume of output signal
MOD Controls- MOD Switch: Set to ON to engage modulation. Set to OFF to disable modulation
- DEPTH Knob: Controls modulation depth. Turn clockwise for positive depth, counterclockwise for negative depth
- RATE Knob: Controls the rate of modulation from 10 Hz to 1.5 kHz
PUSH-BUTTON Trigger: Triggers Super Space Drum from pedal
| | LEDs | TRIG LED: Briefly illuminates when SSD is triggered from onboard Push Button or External Trigger
| | I/O | 1x 1/4" External Trigger Input
1x 1/4" Auxiliary Input
1x 1/4" Output
1X 9 V Power Jack | | Input Impedance | External Trigger Input: 2 MOhms
Auxiliary Input: 2.2 MOhms | | Output Impedance | Various from 100 ohms to 25 kOhms | | Power Draw | 25 mA at 9 VDC | | Dimensions (W x L x H) | 4.0 x 4.75 x 2.25" / 102 x 121 x 89 mm | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.3 x 6.1 x 3.1" |
