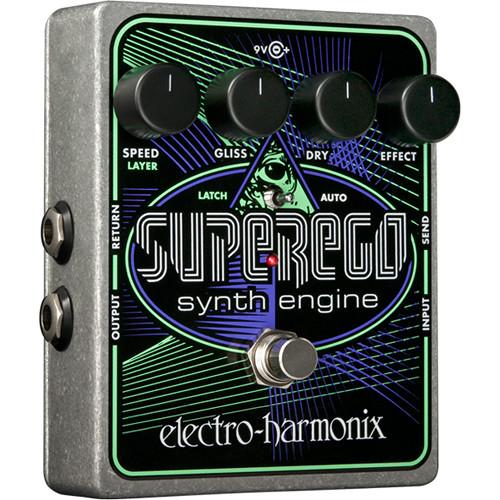

User Manual for Electro-Harmonix SUPEREGO Synth Engine Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix SUPEREGO Synth Engine Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix SUPEREGO Synth Engine Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The SUPEREGO Synth Engine from Electro-Harmonix is a pedal which combines elements of sampling, synthesis and infinite sustain. It allows you to freeze and layer sounds, gliss between frozen sounds, and create an external effects loop. In addition, the Superego can detect new notes or chords and sustain them automatically without having to step on the footswitch.
Note: Double-tap the footswitch for bypass in latch or auto mode
The Superego comes equipped with an Electro-Harmonix 9.6DC-200BI power supply and requires 140 mA at 9 VDC with a center negative plug. The Superego does not take batteries. Using the wrong adapter may damage your unit and void the warranty. - Auto mode captures and freezes notes and chords as you play
- Sustain notes and chords as long as wanted
- Insert effects into the wet signal with the effects loop
- Latch mode with a layer feature to stack sounds
In the Box Electro-Harmonix SUPEREGO Synth Engine Pedal 9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix SUPEREGO Synth Engine Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix SEGO Specs | Modes | Momentary Mode
Latch Mode
Auto Mode | | Controls | 1 x Knob: Speed/Layer
1 x Knob: Gliss
1 x Knob: Dry
1 x Knob: Effect
1 x Footswitch: Bypass
1 x Switch: Toggle | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
1/4" phone jack, send
1/4" phone jack, return
DC Power jack, 9 VDC | | Impedance | Input: 2.2 MΩ
Output: 200Ω (approx.)
Send: < 5 kΩ
Return: 2.2 MΩ | | Current Requirements | 140 mA at 9 VDC | | Power Supply | Maximum: 10.5 VDC | | FCC Compliance | Class B digital device, pursuant to part 15 of the FCC Rules | | Dimensions | 4.0 x 4.75 x 2.25" (102 x 121 x 89 mm) |
