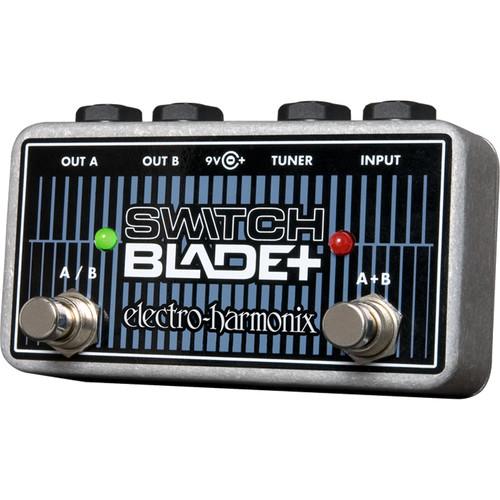

Product description The Switchblade Plus Channel Selector from Electro-Harmonix offers a convenient solution to a player's switching needs. You can route your signal to either Output A or to Output B, or send it to both outputs at once. You can also connect a tuner or effects pedal to the Tuner output which is hardwired to the Input jack and provides a direct output regardless of the state of the unit. This pedal features a fully passive audio path and active LED indication. The Switchblade Plus has two footswitches for A/B Mode and A+B Output select, as well as two LEDs acting as Mode and Output indicators. In A/B Mode the left LED is red when routing to Output A and green when routing to Output B; the right LED lights red when the input signal is going through both Outputs A and B. The Switchblade Plus can be powered by a 9V battery or 9 VDC power supply, and can also operate without any power source, since the audio path is fully passive. However, when using without a power source the LED indicators will not function. UPC: 683274011219 In the Box Electro-Harmonix Switchblade Plus Channel Selector A/B/Y Pedal 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Switchblade Plus Channel Selector A B Y Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix SWITCH+ Specs | Controls | 1 x Footswitch A/B Mode select
1 x Footswitch A+B Output select | | Indicators | 1 x LED A/B Mode status
1 x LED A+B Output status | | Input | 1 x 1/4" | | Outputs | 1 x 1/4" Output A
1 x 1/4" Output B
1 x 1/4" Tuner Output | | Input Impedance | When A+B is engaged: 50 kOhms in parallel with combined input impedances of devices connected to Tuner Output, Output A, and Output B jacks
When A+B is not engaged: 100 kOhms in parallel with combined input impedances of devices connected to Tuner Output, Output A, and Output B jacks | | Power | 9 V battery (included)
9 VDC power supply (available separately)
Without power supply (LED indicators will not function) | | Dimensions (W x L x H) | 2.8 x 4.5 x 2.1" / 70 x 115 x 54 mm | | Weight | 9.6 oz / 0.3 kg | | | | Package Weight | 0.695 lb | | Box Dimensions (LxWxH) | 5.75 x 3.65 x 3.2" |
