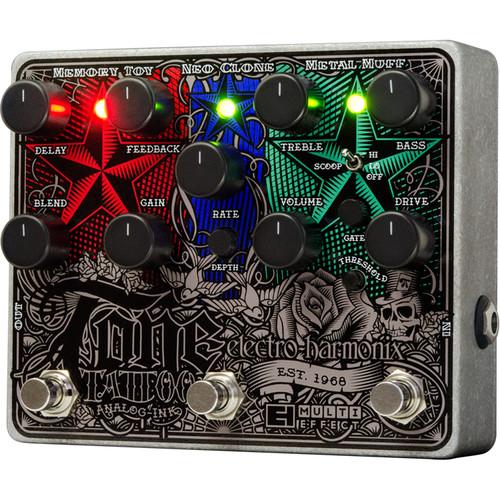

User Manual for Electro-Harmonix TONE TATTOO Analog Multi-Effects Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix TONE TATTOO Analog Multi-Effects Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix TONE TATTOO Analog Multi-Effects Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The TONE TATTOO Analog Multi-Effects Pedal from Electro-Harmonix is designed to deliver crushing Lead and Rhythm tones. It combines the Metal Muff distortion, Neo Clone chorus and Memory Toy analog delay. It features full tone sculpting, including two levels of scoop, and a noise gate for minimal noise. The effects in the TONE TATTOO are completely independent from each other. Three separate footswitches, one for each section, allow for individual control over which effect is on or off. Each effect has its own dedicated knob and switch all of which can be tweaked at any moment.
The Metal Muff section features Drive, Bass, Treble, Gate Threshold and Volume knobs. It also has a Scoop switch and a Gate button. The Metal Muff's gate mutes or un-mutes the output of the Metal Muff. The Neo Clone section features a Rate knob and a Depth button. The Memory Toy section includes Delay, Feedback, Blend, and Gain knobs. - All Analog multi-effect: distortion, chorus, delay
- Delivers Metal Muff Distortion, Neo Clone Chorus and Memory Toy Analog Delay in one pedal
- Crushing lead and rhythm tone
- Full tone sculpting, including two levels of scoop
- Noise Gate for minimal noise
In the Box Electro-Harmonix TONE TATTOO Analog Multi-Effects Pedal 9.6 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix TONE TATTOO Analog Multi-Effects Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix TATTOO Specs | Controls | Metal Muff Section:
1 x Knob: Drive
1 x Knob: Bass
1 x Knob: Treble
1 x Switch: Scoop
1 x Button: Gate
1 x Knob: Gate Threshold
1 x Knob: Volume
Neo Clone Section:
1 x Knob: Rate
1 x Knob: Depth
Memory Toy Section:
1 x Knob: Delay
1 x Knob: Feedback
1 x Knob: Blend
1 x Knob: Gain | | Footswitch | Metal Muff
Neo Clone
Memory Toy | | LED Indicators | Metal Muff status, red/green
Neo Clone status, red/green
Memory Toy status | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
Power jack, input | | Power Requirements | 9 VDC | | Current Draw | 75 mA @ 9 VDC | | Dimensions | 5.75 x 4.75 x 2.5" (146 x 121 x 64 mm) | | | | Package Weight | 2.235 lb | | Box Dimensions (LxWxH) | 8.05 x 6.75 x 3.4" |
