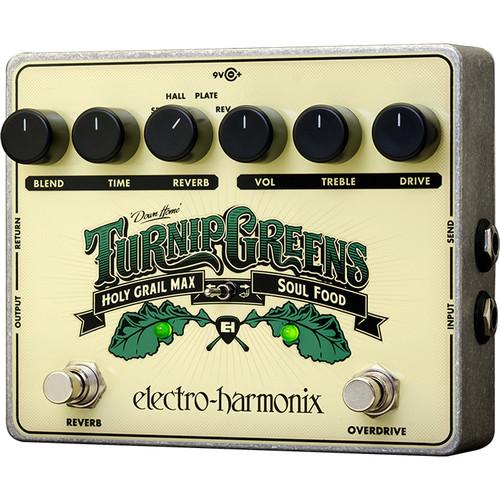

User Manual for Electro-Harmonix Turnip Greens Multi-Effect Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Turnip Greens Multi-Effect Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Turnip Greens Multi-Effect Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Turnip Greens Multi-Effect Pedal from Electro-Harmonix combines the Soul Food overdrive and the Holy Grail Max reverb. The Soul Food delivers transparent sounds starting with clean boost and progressing to intense overdrive. It can add punch to your tone, pushing an amp into saturation or in front of other dirt pedals driving them into new worlds of distortion. The Holy Grail Max provides four reverbs: Spring, Hall, Plate and Reverse. An analog wet/dry control yields a constant volume curve as the Blend knob is turned from fully dry to fully wet, while also keeping the dry signal analog through the pedal.
The pedal's left side features the Holy Grail Max's controls and independent footswitch while the right side is dedicated to the Soul Food's controls and footswitch. A toggle effect-order switch, located in the middle of the Turnip Greens, selects whether the overdrive or reverb is first in the effects chain. Send and Return jacks let you insert effects into the signal path between the two. With the switch to the right the signal chain is Soul Food to Holy Grail Max which produces a traditional sound familiar to most players. In the left position the signal chain is Holy Grail Max to Soul Food. Now the reverb is boosted by the overdrive which, when used in conjunction with pedals in the effects loop, can create lush textures.
The Turnip Greens features an internal switch that lets you select between true bypass or buffered bypass for the Soul Food section. In true bypass mode, when the Turnip Greens is set to bypass, the input jack is connected directly to the amp jack and nothing else. In buffered bypass mode, the bypass signal passes through a high-quality buffer circuit before it is output from the Amp jack. The Turnip Greens comes standard with an EHX 9.6V AC adapter. - Soul Food goes from clean boost to classic distortion and can easily drive a guitar amp into saturation
- Holy Grail Max delivers four studio quality reverbs: Spring, Hall, Plate and Reverse
- An Effects Loop lets you put a single pedal or your entire pedalboard in between the Soul Food and Holy Grail Max
- An Effect Order toggle switch lets you put either the Soul Food or Holy Grail Max first in the chain
In the Box Electro-Harmonix Turnip Greens Multi-Effect Pedal 9.6 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Turnip Greens Multi-Effect Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix TURNIP Specs | Control Knobs | 1 x Knob: Blend
1 x Knob: Time
1 x Knob: Reverb
1 x Knob: Volume
1 x Knob: Treble
1 x Knob: Drive | | Switch | Toggle Switch, effect order | | Footswitch | Reverb
Overdrive | | LED Indicators | Reverb
Overdrive | | Connectors | 1/4" phone jack, audio input
1/4" phone jack, audio output
1/4" phone jack, effect loop send
1/4" phone jack, effect loop receive
2.1 mm DC power jack, power input | | Impedance | Input: 1 MΩ
Output: 500Ω to 3.3 kΩ | | Power Requirements | 9 VDC, 125 mA current draw | | Dimensions | 5.5 x 4.5 x 1.5" (13.97 x 11.43 x 3.81 cm) | | Weight | 1.16 lb (0.53 kg) |
