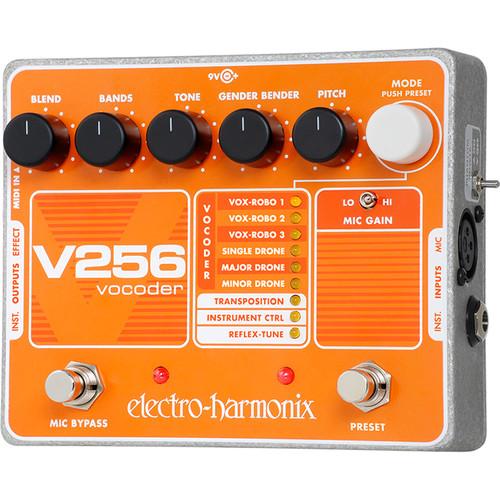

User Manual for Electro-Harmonix V256 Vocoder Pedal with Reflex Tune Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix V256 Vocoder Pedal with Reflex
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix V256 Vocoder Pedal with Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The V256 Vocoder Pedal from Electro-Harmonix includes internal synthesizers for easy vocoding without an external instrument. The V256 has nine modes to choose from, each giving you a different sonic palette to work with. In addition, each mode may change the functionality of some of the V256's knobs.
VOX-ROBO Modes 1, 2, and 3 are identical. This provides the flexibility to save three separate ROBO presets. These modes function as standard vocoders using an external instrument as the carrier signal, and in addition have robotic internal synthesizers that can be used as the carrier signal and controlled with the PITCH knob. The Single, Major, and Minor Drone modes have a more natural, musical sounding tones than the robotic modes. You can "play" the internal drone synthesizer using a MIDI keyboard or sequencer.
When the MIC BYPASS footswitch is held down while an instrument is being played, the V256 will freeze whatever is being played through the INST input at the moment the MIC BYPASS button is pressed. This frozen sample can also be saved into a preset. In Transposition mode, the V256 will transpose the vocal signal by an amount determined by the PITCH knob. The BANDS knob can be used to control how quickly the intervals change when controlled by a MIDI input. The BANDS knob can be used to control how quickly the intervals change when controlled by a MIDI input. In Instrument Control mode the V256 will replace the vocal pitch with the pitch of an external instrument. The PITCH knob controls the threshold of how loud the instrument must be in order for the V256 to replace the vocal note.
The Reflex Tune mode allows the V256 to work as an automatic pitch corrector and will quantize the dry vocal pitch to nearest note depending on the scale and key set by the user. The V256 can save one preset for each of the 9 modes. Each preset will pertain directly to the mode you have saved it in. Once a preset is saved, the V256 will remember the preset after power has been disconnected. - 3 VOX-ROBO vocoder modes that feature a robotic synthesizer
- Single, Major, and Minor modes feature a drone synthesizer
- 3 Vocal transposition modes including Transposition, Instrument Control, and Reflex-Tune
- Vocoder bands adjustable from a vintage sounding 8 bands to a smooth sounding 256 bands
- Tone, Gender Bender, and Pitch controls
- Save and load up to 9 presets; 1 preset for each mode
- Scroll through the presets using the Mode knob or Preset footswitch
- Vocoder band adjustment from 8-256 bands
- Gender bender for male or female emphasis adjust
- Reflex Tune for articulate Vocal pitch correction
- Built-In balanced Mic Pre-Amp with switchable Phantom Power and Gain adjustment.
- Transposition for pitch shifting
- Instrument control for monophonic pitch replacement
UPC: 683274011011 In the Box Electro-Harmonix V256 Vocoder Pedal with Reflex Tune AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix V256 Vocoder Pedal with Reflex Tune in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix V256 Specs | Connectors | 1 x XLR, microphone input
1 x 1/4" phone jack, INST input
1 x XLR, effect output
1 x 1/4" phone jack, INST output
1 x Power jack, 9 VDC input
1 x 5-pin MIDI input jack | | Controls | 1 x Knob: Blend
1 x Knob: Bands
1 x Knob: Tone
1 x Knob: Gender-Bender
1 x Knob: Pitch
1 x Knob: Mode
1 x Push-switch: Mode
1 x Footswitch: Preset
1 x Footswitch: Mic Bypass
1 x Toggle Switch: Mic Gain
1 x Toggle Switch: Phantom Power | | LED Indicators | Preset, solid/blinking
Status, solid/blinking | | Mic Preamps | LO Mode = 15 dB; HI Mode = 25 dB (XLR out into High Z load)
LO Mode = 4.5 dB; HI Mode = 15 dB (XLR out into 600Ω load)
A/D and D/A Conversion Sample Rate = 36 kHz
A/D and D/A Conversion Bit Resolution = 24-bits | | Output Impedance | 700Ω | | Power Requirements | 9 - 9.6 VDC @ 200 mA | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
