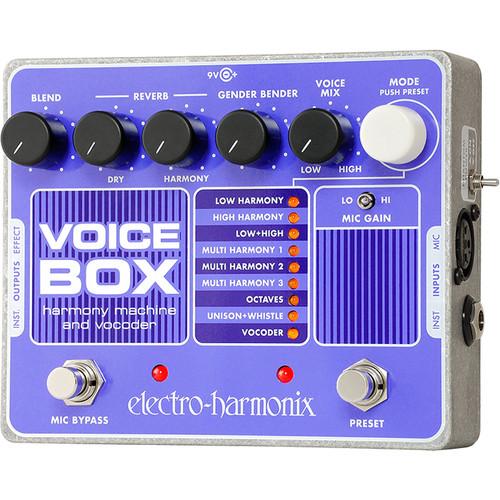

User Manual for Electro-Harmonix Voice Box Vocal Harmony Machine Vocoder Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Voice Box Vocal Harmony Machine
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Voice Box Vocal Harmony Machine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Voice Box Vocal Harmony Machine/Vocoder from Electro-Harmonix is a multi-functional vocal synth processor. The Voice Box allows you to products 1 to 4 part harmonies from the solo vocals. The harmonies are determined by the chords played on your instrument and the notes you sing. The Voice Box has an easy-to-use vocoder, allowing you to easily create classic vocoder sounds. Additionally, the Voice Box has an Octave mode, Whistle effect and a Unison effect. - 3 different dual harmony modes including: Low, High, Low + High
- 3 different multi-harmony modes
- Vocoder mode turns the Voice Box into a professional sounding vocoder
- Octave mode produces an octave above and below vocals
- Whistle mode synthesizes a whistle tone 2 octaves above the note you sing
- Unison mode allows for a formant shaping effect without pitch shifting
- Save and load up to 9 presets; 1 preset for each mode
- Scroll through the presets using the Mode knob or Preset footswitch
- Built-in balanced Mic pre-Amp with switchable Phantom Power and Gain adjustment
- Effect output on balanced XLR line output for interfacing with mixers and stage breakout boxes
- Clean and transparent analog instrument through circuitry
UPC: 683274010908 In the Box Electro-Harmonix Voice Box Vocal Harmony Machine/Vocoder US96DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Voice Box Vocal Harmony Machine Vocoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix VOICE BOX Specs | Connectors | 1 x XLR, microphone input
1 x XLR, effect output
1 x 1/4" phone jack, INST input
1 x 1/4" phone jack, INST output
1 x DC power barrel | | Control Knobs | 1 x Knob: Mode
1 x Knob: Gender Bender
1 x Knob: Dry
1 x Knob: Harmony
1 x Knob: Voice Mix
1 x Knob: Blend | | Switches | 1 x Footswitch: Preset
1 x Footswitch: Mic Bypass
1 x Toggle Switch: Mic Gain
1 x Toggle Switch: Phantom Power | | Input Impedance | 2.2 MΩ | | Output Impedance | 700Ω | | Power Requirements | 9 - 9.6 VDC @ 200 mA | | Mic Gain Range | LO Mode = 15 db; HI Mode = 25 dB (XLR out into High Z load)
LO Mode = 4.5 dB; HI Mode = 15 dB (XLR out into 600 ohm load) | | A/D and D/A Conversion | Sample Rate: 36 kHz
Bit Resolution: 24 bit | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) | | Weight | 1.9 lb (0.88 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 7.9 x 6.7 x 3.3" |
