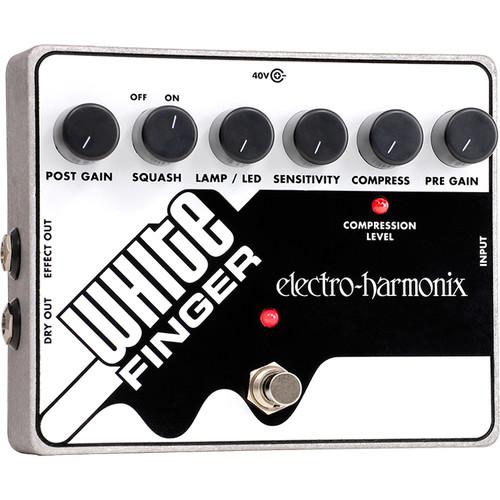

User Manual for Electro-Harmonix White Finger Analog Optical Compressor Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix White Finger Analog Optical Compressor
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix White Finger Analog Optical Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The White Finger Analog Optical Compressor Pedal from Electro-Harmonix is a warm-sounding compressor pedal useful for both guitar and bass, as well as home recording. This pedal features optical compression and an FET signal path. The White Finger is a fixed threshold compressor, meaning the threshold remains constant while you have the ability to change the amount of signal that goes to the compressor circuitry. The signal level sent to the compressor is controlled by both the Pre-Gain and Compress knobs. Some gain is needed to adjust the output level so that it matches the original level, and this is accomplished with an FET fixed gain pre-amp circuit.
The White Finger features Compress, Sensitivity, and Pre-Gain/Post-Gain knobs. Its Lamp/LED switch selects the light source to drive the optical attenuator, and the SQSH/Norm switch selects between normal attack and a "squashed" long attack time for the attenuator. This unit features a Compression Level LED which gives a visual indication of the gain reduction caused by the compressor, and a Status LED. - LED optocoupler for a faster attack compression
- Lamp optocoupler for softer blooming compressor
- Quiet long sustains with transparent tones
- Pre-gain control lets you control how hard your instrument hits the compressor
- Sensitivity knob for control of how the compression will be hit
- Compression amount allows you to dial in the perfect ratio for your music
- Same compression theory as our professional NY-2A but uses FETs instead of tubes
In the Box Electro-Harmonix White Finger Analog Optical Compressor Pedal 40DC-100 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix White Finger Analog Optical Compressor Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix WHITE FINGER Specs | Connectors | 1 x 1/4" phone jack, audio input
1 x 1/4" phone jack, direct output
1 x 1/4" phone jack, audio output | | Controls | 1 x Knob: Compress
1 x Knob: Sensitivity
1 x Switch: Lamp/LED
1 x Switch: SQSH/Norm
1 x Knob: Pre-Gain
1 x Knob: Post-Gain | | LED Indicators | Compression level
Status | | Power Supply | 40 VDC, 100 mA | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) | | Weight | 1.9 lb (0.88 kg) |
