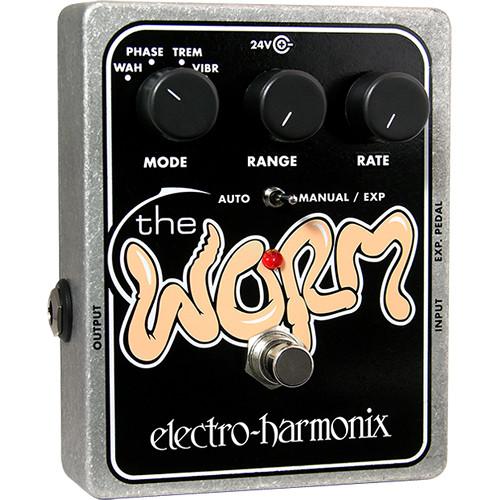

User Manual for Electro-Harmonix Worm Analog Wah Phaser Vibrato Tremolo Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Worm Analog Wah Phaser Vibrato
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Worm Analog Wah Phaser Vibrato contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Worm Analog Wah/Phaser/Vibrato/Tremolo Pedal from Electro-Harmonix is a multi-functional modulation pedal. The unit's Mode rotary switch allows you select between the Wah, Phaser, Tremolo, and Vibrato effects. The Worm features a Range knob designed to adjust the amount of effect that will be applied to your signal, and a Rate knob that adjusts the sped of modulation for the effect. This pedal also has an Auto/Manual/Exp toggle switch, and a footswitch that engages/disengages the effect. If the effect is engaged, the Status LED will blink at the same rate that the effect modulates. - Mode selectable analog modulation effects: wah, phaser, vibrato, tremolo
- Manual mode removes the modulation so the effects can be swept by hand
- Optional expression pedal sweep capability
- Tough and compact die-cast chassis
In the Box Electro-Harmonix Worm Analog Wah/Phaser/Vibrato/Tremolo Pedal 24 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Worm Analog Wah Phaser Vibrato Tremolo Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix WORM Specs | Connectors | 1 x 1/4" phone jack, input
1 x 1/4" phone jack, output
1 x TRS, expression pedal
1 x DC power jack | | Controls and Indicators | 1 X Rotary switch: Mode
1 x Knob: Range
1 x Knob: Rate
1 x Toggle Switch: Auto/Manual/Exp
1 x Foostwitch
1 x Status LED | | Expression Pedal | Compatibile with:
M-Audio EX-P
Moog Expression Pedal
Roland EV-5
Boss FV-500L Among others | | Impedance | Input: 300 kΩ
Output: 1 kΩ
Expression Pedal: 100 kΩ | | Power Supply | 24 VDC, 100 mA | | Dimensions | 4 x 4.75 x 2.25" (102 x 121 x 89 mm) | | Weight | 1.3 lb (0.59 kg) |
