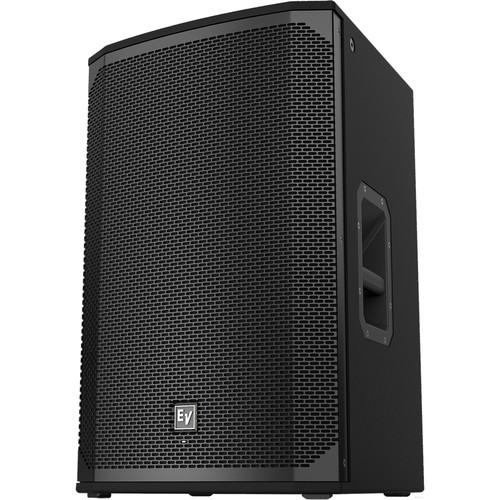

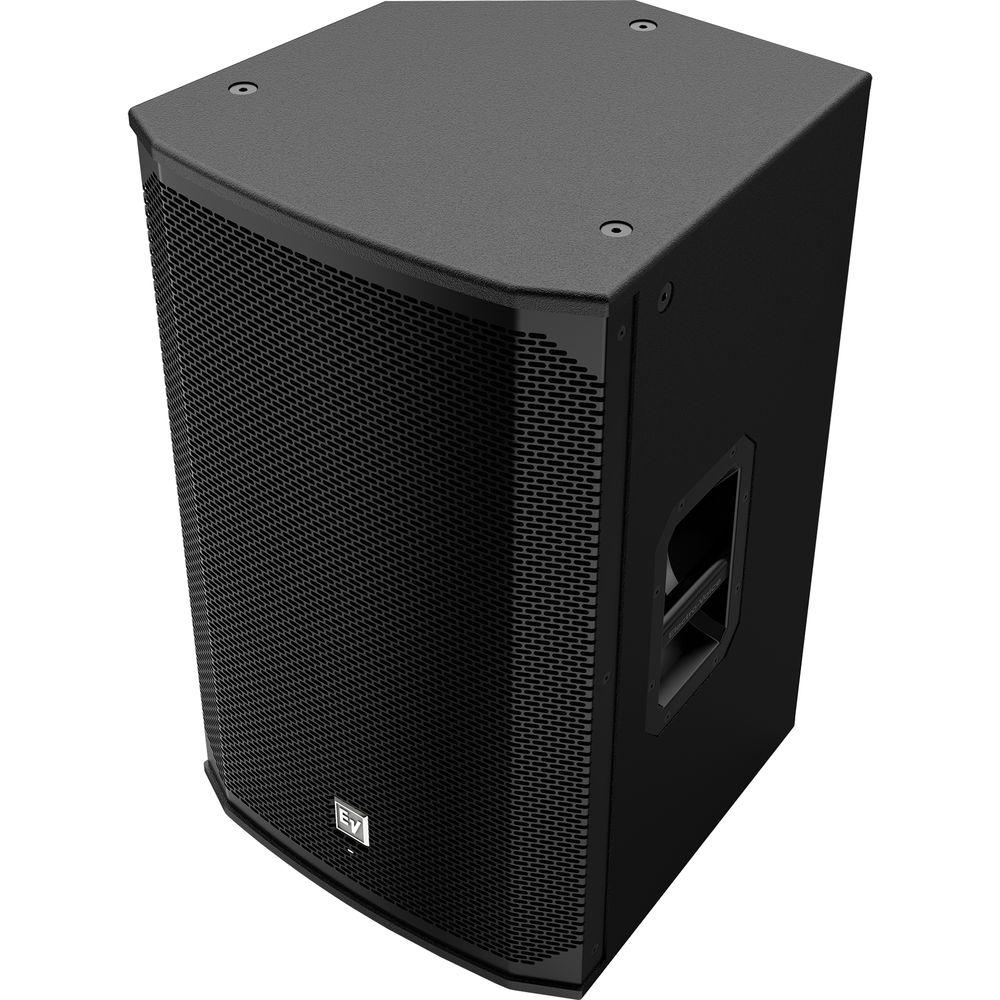

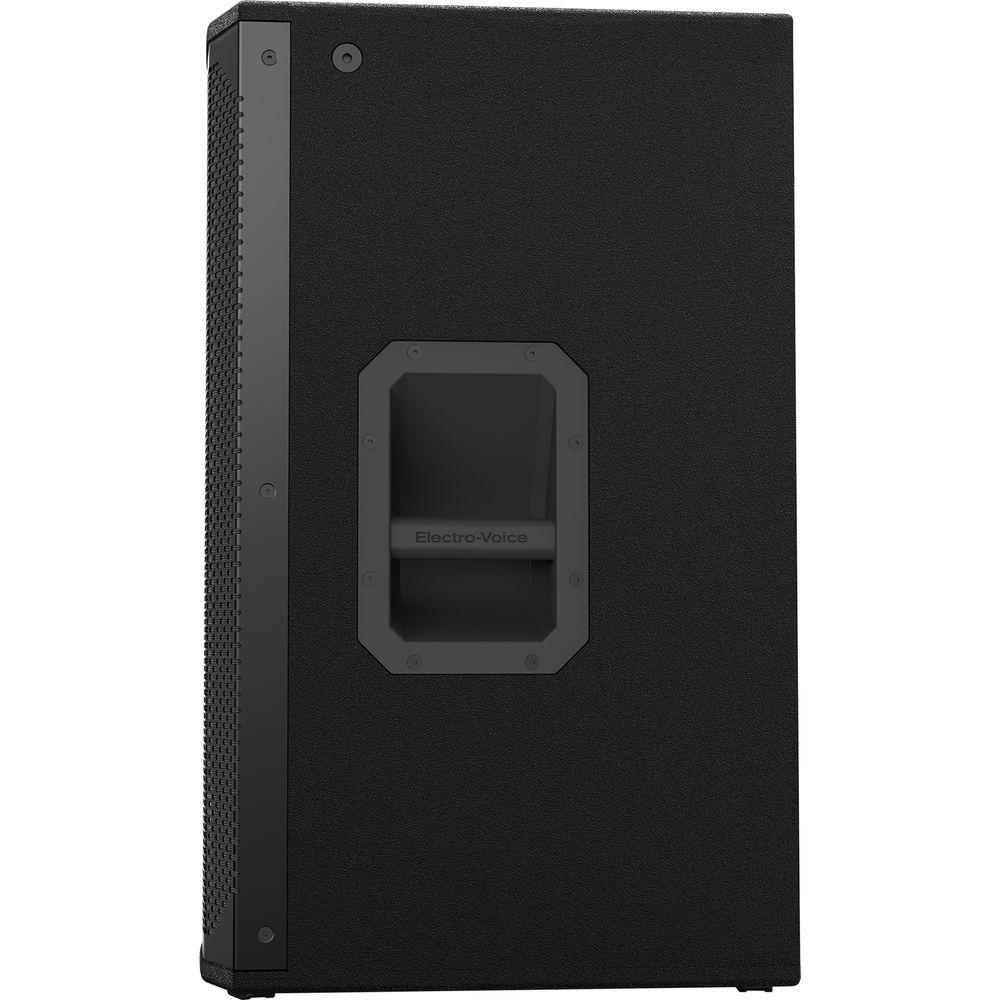

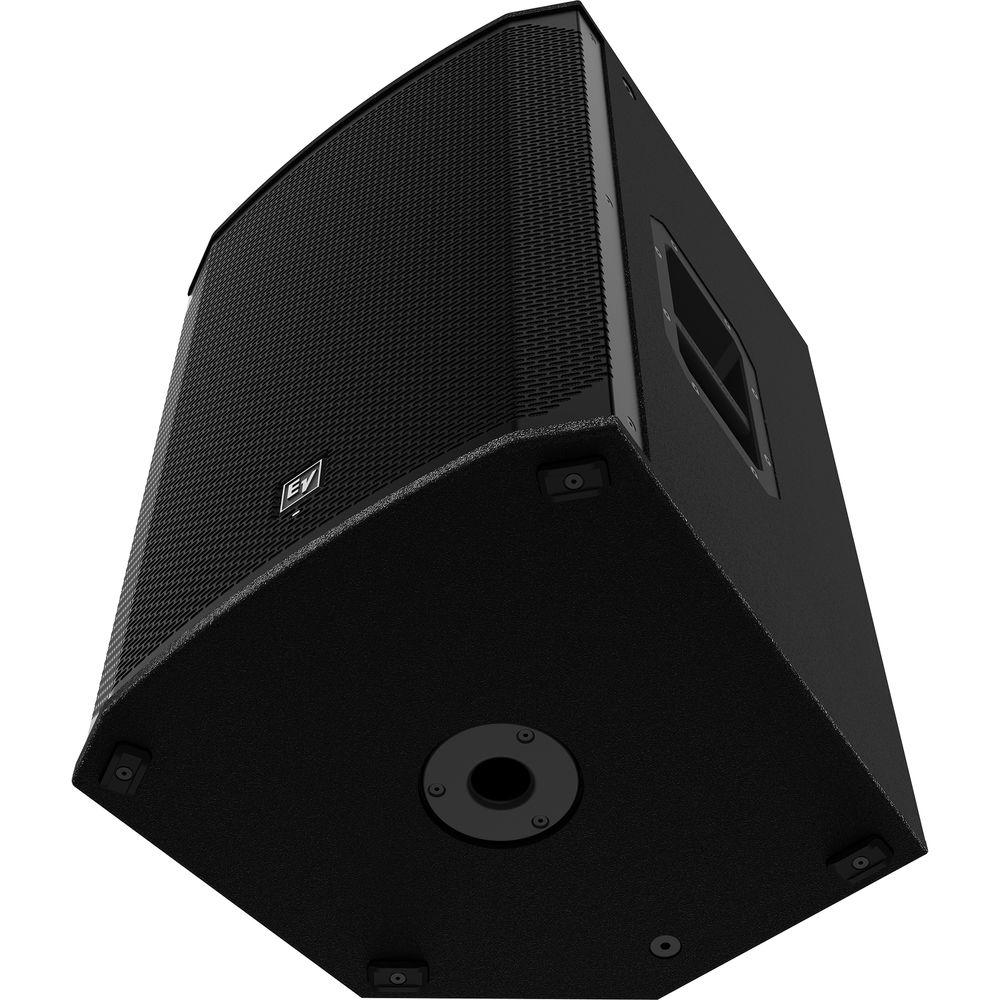

Product description The 15” 2-Way Passive Loudspeaker from Electro-Voice offers a maximum peak output of 1600W and peak SPL of 132 dB, thanks to the high-sensitivity transducers. The SST (Signal Synchronized Transducers) waveguide design provides precise and consistent coverage. In addition, the loudspeaker features eight M10 threaded mounting points, aluminum pole mounts, and all metal handles. - Lightweight, compact 15mm wood enclosure with internal bracing and durable EVCoat finish
- 90 x 60˚ pattern for optimum coverage on mid-size stages
- 40˚ monitor angle with rubber feet
UPC: 800549772136 In the Box Electro-Voice 15" 2-Way Passive Loudspeaker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice 15" 2-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EKX-15 Specs | Axial Sensitivity | 96 dB full space measurement (SPL, 1 W @ 3.28' / 1 m) | | Maximum SPL | 132 dB at 3.28' (1 m) using broadband pink noise at rated peak power rating | | Nominal Impedance | 8 Ohms | | Power Handling | Continuous / Peak: 400 W / 1600 W | | Frequency Response | At -3 dB: 75 Hz to 18 kHz full space measurement
At -10 dB: 50 Hz to 20 kHz full space measurement | | Frequency | Recommended High-Pass Frequency: 50 Hz | | Coverage | Nominal -6 dB: 90 / 60° (H / V)
HF: DH-1M 1" (25.4 mm) titanium compression driver | | Transducer | LF: EVS-15M 15" (381 mm) | | Crossover Frequency | 1.6 kHz | | Minimum Impedance | 7.2 Ohms | | Connector Type | Dual NL4 | | Enclosure Material | 0.59" (15 mm), plywood with EVCoat | | Grille | 18 AWG steel with powder coat | | Suspension | 8 x M10 threaded mounting points | | Dimensions (H x W x D) | 26.97 x 17.01 x 16.89" (685 x 432 x 429 mm) | | Weight | 51.15 lb (23.2 kg) | | | | Package Weight | 63.0 lb | | Box Dimensions (LxWxH) | 30.0 x 19.7 x 19.5" |
