User Manual for Electro-Voice 309-8TWB 8" 2-Way 16W Ceiling Loudspeaker with Transformer Click to enlarge the picture
Contents of the user manual for the Electro-Voice 309-8TWB 8" 2-Way 16W Ceiling
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice 309-8TWB 8" 2-Way 16W Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

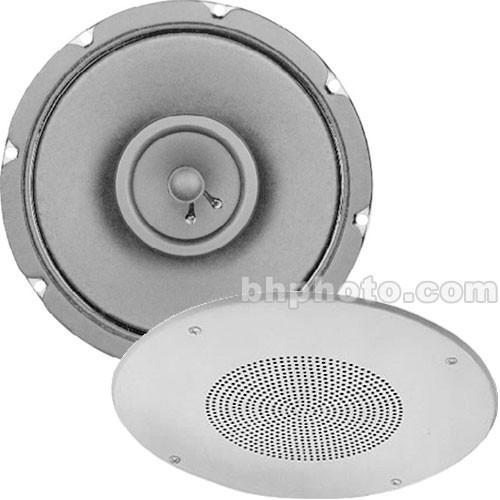

Product description The Electro-Voice 309-8TWB is a passive 8" ceiling loudspeaker designed for voice amplification and background music reproduction in waiting rooms, offices, retail stores, and restaurants. The 8W multi-tap transformer allows the 309-8TWB to be driven by a 70V or 100V constant-voltage power amplifier (available separately). Equipped with an 8" woofer and a coaxially mounted tweeter, the 309-8TWB yields a frequency response of 85 Hz to 18 kHz, 16W power handling, and a maximum long-term output of over 108 dB SPL.A built-in 3 kHz crossover network ensures proper frequency distribution to the speaker components. Input connectivity via push terminals allows easy tap selection and straightforward hookup to your power amp. The 309-8TWB may be front- or rear-mounted to a standard ceiling speaker baffle. The 309-8TWB includes a pre-installed ceiling grille. - For reproduction of speech and music in offices, retail stores, restaurants, and more
- 8" woofer with high-temperature voice coil
- Coaxially mounted wide-dispersion tweeter
- 16W long-term output capacity
- Pre-installed 8W transformer with taps of 1 to 8 watts allows connection to 70V or 100V power amp
- Built-in crossover network centered at 3 kHz
In the Box Electro-Voice 309-8TWB 8" 2-Way 16W Ceiling Loudspeaker with Transformer (Black with Grille) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice 309-8TWB 8" 2-Way 16W Ceiling Loudspeaker with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice 309-8TWB Specs | Active or Passive | Passive | | LF Driver | 8" / 20.3 cm Speaker | | HF Driver | Wide-Dispersion Cone Tweeter | | Frequency Response | 85 Hz to 18 kHz | | Power Capacity | 16 W (85 Hz to 18 kHz, Band-Limited Pink Noise, 6 dB Crest Factor) | | Pressure Sensitivity | 96 dB SPL (1 W, 500 Hz to 3 kHz, Reference of 20
