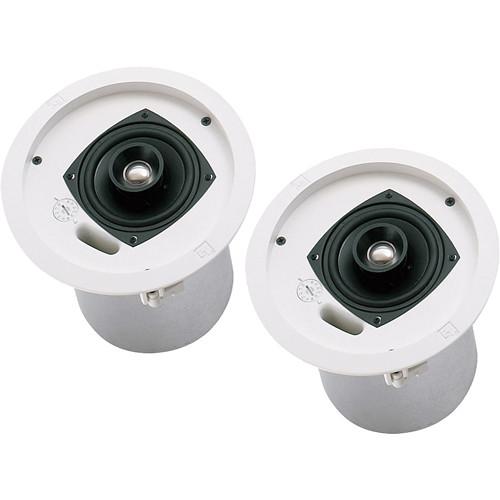

Product description The Electro-Voice EVID C4.2 (White, Pair) is a compact, low-profile 4" coaxial installation speaker, offering a smooth, extended frequency response appropriate for both background music and paging applications in offices, waiting rooms, and retail spaces. The EVID C4.2 is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap selector switch that includes 8 Ohm bypass operation, conveniently located on the front of the speaker. The enclosure is both ported and tuned, optimizing bass response, and the unit is supplied with a well-designed 3-point mounting system for simplified installation. - 4" coaxial compact 2-way ceiling speaker with extended frequency response and full installation mounting kit for offices, waiting rooms and business facilities
- Suitable for background music and paging/announcement applications
- Waveguide coupled titanium tweeter for smooth high frequency dispersion
- Full bandwidth overload protection circuitry; protects network, woofer and tweeter drivers from excessive power levels
- Integrated low-loss line-matching transformer for 70V/100V or 8 Ohm bypass operation
- Front baffle wattage selector switch allows for 1.88(70V only)/3.75/7.5/15/30W delivery to loudspeaker system when using 70V/100V lines
- Integrated ported enclosure for optimized bass response
- Perforated powder coated steel grille speaker cover with safety tether
UPC: 701001014651 In the Box Electro-Voice C4.2 - 4" Coaxial Installation Speaker (White, Pair) Tile Bridge Backing Plate Support Cutout Template Paint Shield 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice C4.2 - 4" Coaxial Installation Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID C4.2 Specs | Active or Passive | Passive | | Frequency Response | 65Hz - 20kHz(-10dB) | | Power Capacity | 80 Watts Continuous
320 Watts Peak | | Maximum Sound Pressure Level (SPL) | 110dB | | Nominal Sensitivity | 86dB SPL 1W/1m | | Impedance | 8Ohms(transformer bypass) | | Crossover | 3.3kHz, 2nd order | | Shielded | No | | Low Frequency Driver | 4" Polypropylene cone | | High Frequency Driver | 0.75" Titanium Mylar Laminate | | Enclosure Material | Baffle: UL 94V-O rated ABS
Backcan: Zinc plated steel | | Input Connections | Phoenix type removable with screw terminals and loop-thru(accepts 12-gauge wire) | | Environmental | Not Applicable, Indoor Use Only | | Dimensions | 6.9 x 7.1" (176 x 181mm)(Height x Diameter)
7.25" (184mm)(Cutout Size) | | Weight | 6 lbs (2.7kg) | | Specialties | Comprehensive Protection Circuit
Selectable 70V/100V Transformer Taps or 8 Ohm Bypass
Waveguide Coupled Titanium Tweeter | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 26.5 x 12.0 x 11.0" |
