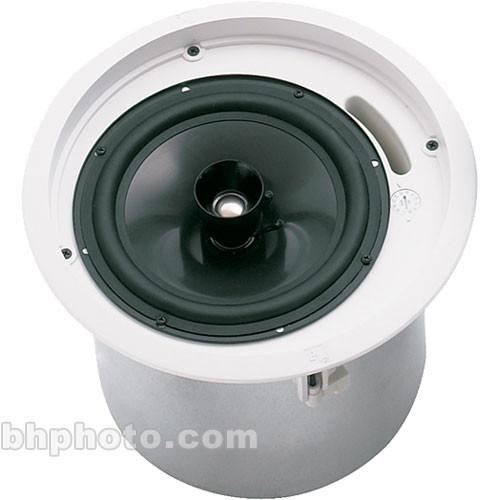

User Manual for Electro-Voice C8.2 - 8" Coaxial Ceiling Mount Speaker Pair w Transformer Click to enlarge the picture
Contents of the user manual for the Electro-Voice C8.2 - 8" Coaxial Ceiling
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice C8.2 - 8" Coaxial Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Each of the Electro-Voice EVID C8.2 (White) is an 8" coaxial flush-mount installation speaker designed to work within a multi-unit system in a wide variety of ceiling construction types. The high output and high-quality, extended frequency reproduction of this speaker are effectively combined for use as a background music and paging solution for offices, waiting rooms and other similar spaces. The EVID C8.2 is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap selector switch that includes 8 Ohm bypass operation, conveniently located on the front of the speaker. The enclosure is both ported and tuned, optimizing bass response, and the system is supplied with two speakers and a well-designed 3-point mounting system for simplified installation. - 8" coaxial 2-way installation speaker with extended frequency response and 70V/100V internal line-matching transformer
- High output speaker with extended frequency response for optimized reproduction of background music or paging/announcement requirements
- Full bandwidth overload protection circuitry; protects network, woofer and tweeter drivers from excessive power levels
- Waveguide coupled titanium tweeter for smooth high frequency dispersion
- Integrated low-loss line-matching transformer for 70V/100V or 8 Ohm bypass operation
- Front baffle wattage selector switch allows for 1.88(70V only)/3.75/7.5/15/30W delivery to loudspeaker system when using 70V/100V lines
- Integrated ported enclosure for optimized bass response
- Perforated grille speaker cover with powder-coated semigloss white enamel finish
UPC: 701001014644 In the Box Electro-Voice C8.2 - 8" Coaxial Ceiling Mount Speaker Pair w/Transformer (White) 2 x Speakers 4 x Tile Rails 2 x C-Ring Supports 2 x Grills 4 x Support Ring Screws Cutout Template 2 x Paint Shields Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice C8.2 - 8" Coaxial Ceiling Mount Speaker Pair w Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID C8.2 Specs | Active or Passive | Passive | | Frequency Response | 50Hz - 20kHz(-10dB) | | Power Capacity | 100W continuous
400W peak | | Maximum Sound Pressure Level (SPL) | 117dB | | Nominal Sensitivity | 91dB SPL 1W/1m) | | Impedance | 8Ohms(transformer bypass) | | Crossover | 2nd order, 12dB/octave, 2.5 kHz frequency | | Shielded | No | | Low Frequency Driver | 8" Polypropylene Cone | | High Frequency Driver | 1" Titanium Mylar Laminate Tweeter | | Enclosure Material | Baffle: UL 94V-O rated ABS
Backcan: Zinc plated steel | | Input Connections | Phoenix type removable with screw terminals and loop-thru(accepts 12-gauge wire) | | Environmental | Not Applicable, Indoor Use Only | | Dimensions | 10.0 x 10.6" (255 x 270mm)(Height and Diameter)
10.8" (274mm)(Cutout Size) | | Weight | 11 lbs (5kg) | | Specialties | Selectable 70V/100V Transformer Taps or 8Ohm Bypass
Waveguide Coupled Titanium Tweeter
Low-Profile Backcan Design for FLush-Mounting in Tight Spaces | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 30.0 x 15.0 x 15.0" |
