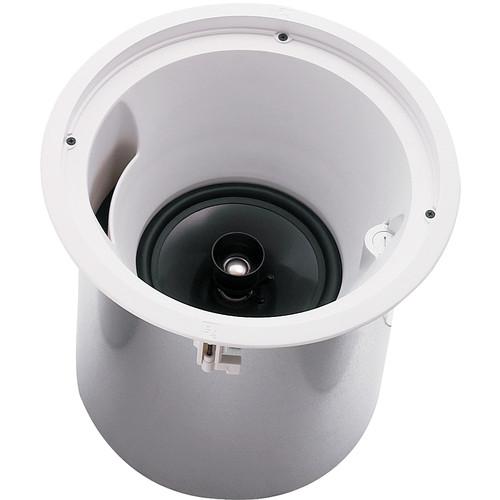

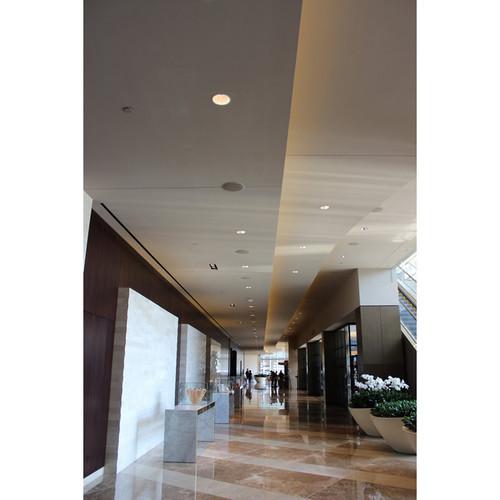

Product description Sold as a pair, the white Electro-Voice EVID C8.2HC is a passive 8" coaxial installation speaker designed to deliver reliable full-range voice and music reproduction in environments with high ceilings. Dual integrated waveguides contribute to the speaker's 75° coverage pattern. When driven by your 70V, 100V, or 8-Ohm power amplifier (available separately), this two-way speaker provides a continuous power capacity of 75W. Equipped with an 8" polypropylene woofer and a 1" titanium-coated tweeter in a ported enclosure, the EVID C8.2HC yields a frequency range of 50 Hz to 20 kHz. An internal 2.6 kHz network ensures bandwidth distribution to the speaker components while protecting against damage from overloading. The integrated multi-tap transformer accommodates a range of taps, selectable via a convenient switch on the ABS baffle. The removable Euroblock connector, tile bridge, backing plate support, cutout template, and paint shield simplify installation. - 8" two-way coaxial installation speaker for mounting in high-ceiling environments

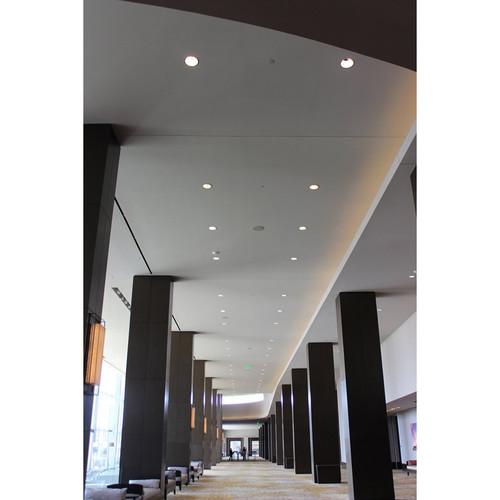

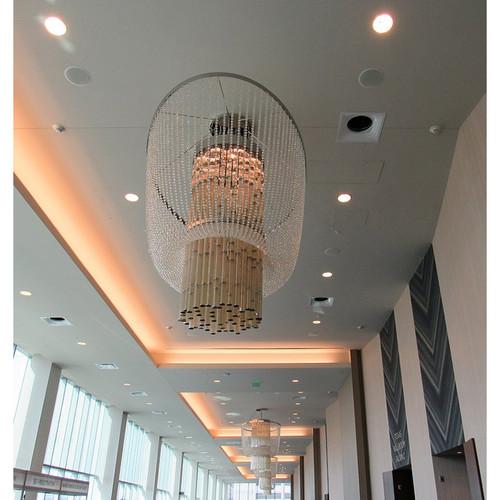

- Dual integrated waveguides help achieve the 75° coverage pattern, which fills the same area installed in a 21' ceiling as a typical flush-mounted speaker housed in an 8' ceiling
- Controlled-dispersion, high-output speaker with extended frequency response for optimized reproduction of background music or paging/announcement requirements
- Waveguide-coupled, titanium-coated dome tweeter for smooth high-frequency dispersion
- Integrated low-loss, line-matching transformer for 70V/100V or 8-Ohm bypass operation
- Front baffle wattage selector switch allows for easy tap selection without having to access the rear of the speaker
- Full-bandwidth overload protection
- Integrated ported enclosure for optimized bass response
- Perforated grille speaker cover with durable powder-coated enamel finish
- Included tile bridge allows for safe suspension in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles
UPC: 701001037551 In the Box Electro-Voice C8.2HC 8" 2-Way 75W Coaxial High-Ceiling Speaker (Pair, White) 2 x Tile Bridges 2 x Backing Plate Supports 2 x Cutout Templates 2 x Paint Shields Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice C8.2HC 8" 2-Way 75W Coaxial High-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID C8.2HC Specs | Active or Passive | Passive | | LF Driver | 8" / 20 cm Polypropylene Cone in Waveguide | | HF Driver | 1" / 2.5 cm Titanium-Coated Mylar Dome Tweeter | | Frequency Range | 50 Hz to 20 kHz (-10 dB) | | Coverage Pattern | 75° Nominal above 1 kHz | | Power Capacity | At 8 Ohms (Continuous Wattage): 75 W
At 8 Ohms (Peak Wattage): 300 W
At 70/100 V: Up to 60 W | | Maximum Sound Pressure Level (SPL) | Continuous: 112 dB
Peak: 118 dB | | Axial Sensitivity | 93 dB SPL (1 W / 1 m) | | Nominal Impedance | 8 Ohms (Transformer Bypass) | | Transformer Taps | Watts at 70 V: 7.5, 15, 30, or 60
Watts at 100 V: 15, 30, or 60
Bypass: 8 Ohms | | Crossover | Crossover Frequency: 2.6 kHz
Slope: 12 dB/Octave | | Construction Material | Baffle/Bezel: UL 94V-O Rated ABS
Backcan: Zinc-Plated Steel
Grille: Perforated Powder-Coated Steel | | Inputs | Removable 4-Pin Euroblock with Screw Terminals and Loop-Thru | | Maximum Wire Gauge | 12 AWG | | Safety Rating | UL 1480
UL 2043 | | Cutout Diameter | 12.7" / 32.2 cm | | Dimensions (Diam. x Depth) | 12.6 x 11.9" / 32.0 x 30.3 cm | | Weight | 13.2 lb / 6 kg | | | | Package Weight | 40.85 lb | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 17.0" |
