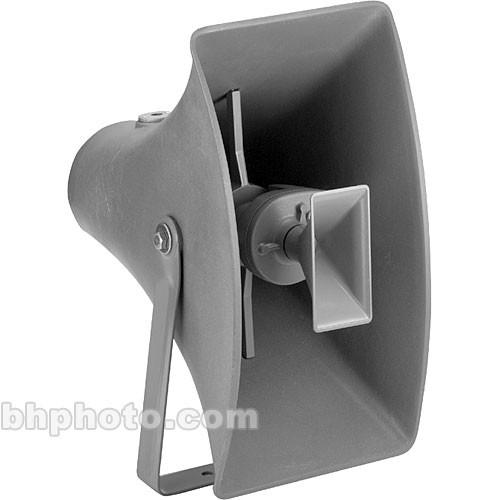

Product description The Electro-Voice CDP-848AT is a 30-watt compound diffraction projector, with a 70.7V/100V line matching transformer, for use in paging installations. The compound diffraction design allows for more uniform dispersion throughout the frequency range. This wide-range, integrated horn-and-driver system deploys a single driver fitted to a pair of coaxial horns, each coupled to opposite sides of the driver diaphragm. The weather-resistant gray enclosure of the CDP-848AT is equipped with a swiveling U-bracket, and provides a 150° x 110° horizontal and vertical coverage pattern. - 30-watt Compound Diffraction paging installation horn speaker with dual coaxial horns and 70.7V/100V transformer
- 0.5W/1W/2W/4W taps for 70.7V lines, 0.5V/1W/2W/4W/8W/15W/30W taps for 100V lines
- Wide 150° x 110° coverage pattern
- Frequency reproduction useful for speech/paging applications or background/foreground music
- Enclosure resistant to weather, temperature, dust, fungus and UV damage
In the Box Electro-Voice CDP-848AT - 30-Watt Compound Diffraction Paging Installation Horn with 70.7V/100V Transformer Steel U-Bracket 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice CDP-848AT - 30-Watt Compound Diffraction Paging Installation Horn with 70.7V 100V Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice CDP-848AT Specs | Frequency Response | 260 Hz - 10 kHz +/-5dB | | Maximum Power Handling | 30 Watts | | Impedance | 8 Ohms(transformer bypassed) | | SPL | 105dB | | Beamwidth | Not Specified by Manufacturer | | Horizontal Beamwidth | 150° @ 2kHz | | Vertical Beamwidth | 110° @ 2 kHz | | Directivity | 7.4 @ 2 kHz | | Construction | Fiberglass compression molding with gray finish, gray die-cast zinc front horn, phenolic compression-molded inner horns with steel U-bracket | | Magnet | Weight: 0.62 lb (0.28 kg)
Material: Strontium Ferrite | | Voice Coil | 1.5" (38.1mm) | | Dimensions (HxWxD) | 20.5 x 10.5 x 20" (520 x 265 x 510mm) | | Weight | 16 lb (7.0 kg) |
