User Manual for Electro-Voice CPS2.4 Power Amplifier Click to enlarge the picture
Contents of the user manual for the Electro-Voice CPS2.4 Power Amplifier
- Product category: Power Amplifiers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Power Amplifiers
|
User manual for the Electro-Voice CPS2.4 Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

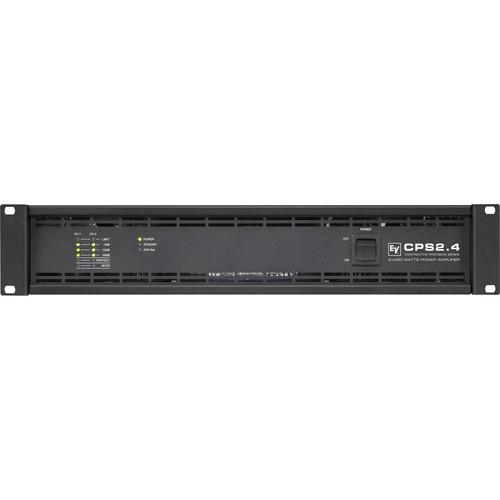

Product description The CPS2.4 Power Amplifier from Electro-Voice features a 450W, 4 Ohms output power. Their comprehensive protection system includes circuitry against overheating, overload, short circuit, HF and DC as well as back-EMF. A soft start circuit compensates mains inrush current peaks and thus prevents triggering AC mains fuse when switching on the amplifier. Loudspeakers are protected by turn-on-delay relays. UPC: 800549164207 In the Box Electro-Voice CPS2.4 Power Amplifier (2 x 450 W, 120 V) Power Cord 4 x Foot Stands Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice CPS2.4 Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.076.841 Specs | Load Impedance | 4 Ohms | | Output Power | Maximum Midband: 450 W, THD = 1%, 1 kHz, Dual Channel
Maximum Single Channel: 660 W @ Dynamic-Headroom, IHF-A
540 W @ continuous, 1 kHz
Maximum Bridged: 1300 W, THD = 1%, 1 kHz | | Rated Output Power | 400 W (THD < 0.1%, 20 Hz to 20 kHz) | | Maximum RMS Voltage Swing | 55.3 V (THD = 1%, 1 kHz) | | Power Bandwidth | < 10 Hz to 30 kHz (THD = 1%, ref. 1 kHz, half power @ 4 Ohms < 10 Hz to 30 kHz) | | Voltage Gain | 32 dB | | Input Sensitivity | +2.2 dBu (1.0 Vrms) @ 8 Ohms, 1 kHz | | Total Harmonic Distortion (THD) | < 0.03% (MBW = 80 kHz, 1 kHz < 0.03%) | | Connectors | 1 x 4-pole output
2 x 3-pole input
1 x 2-pole power remote connector | | IMD SMPTE | < 0.1% (60 Hz, 7 kHz) | | DIM 30 | < 0.05% (3.15 kHz, 15 kHz) | | Maximum Input Level | +21 dBu (8.69 Vrms) | | Crosstalk | < -80 dB | | Frequency Response | 10 Hz to 40 kHz ±1 dB | | Input Impedance | 20 kOhms, active balanced | | Damping Factor | >300 @ 1 kHz | | Slew Rate | 25 V/µs | | Signal to Noise Ratio (SNR) | >106 dB, A-weighted | | Output Noise | < -71 dBu | | Stage | Class AB | | Power Requirements | 120 VAC, 50 - 60 Hz | | Power Consumption | 550 W @ 1/8 maximum output power @ 4 Ohms
670 W @ rated output power @ 8 Ohms | | Fuse | T20AH | | Protection | Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | | Cooling | Front-to-rear, 3-stage-fans | | Ambient Temperature Range | 40 to 105°F (5 to 40°C) | | Safety Class | I | | Signal Processing | Lo-Cut 50 Hz / 18 dB, switchable | | Dimensions | 19.1 x 3.5 x 16.6" (483 x 88.1 x 421.5 mm) | | Weight | 27.8 lb (12.6 kg) | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 25.8 x 21.8 x 7.8" |
