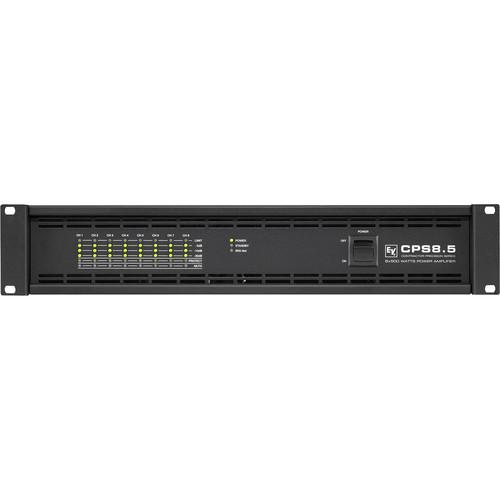

User Manual for Electro-Voice CPS8.5 8-Channel Power Amplifier for RCM-810 IRIS-Net Remote Control Module Click to enlarge the picture
Contents of the user manual for the Electro-Voice CPS8.5 8-Channel Power Amplifier for
- Product category: Power Amplifiers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Power Amplifiers
|
User manual for the Electro-Voice CPS8.5 8-Channel Power Amplifier for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Provided by third party: The CPS8.5 is an eight-channel amplifier from Electro-Voice featuring groundbreaking Class-D technology for maximum amp efficiency. Power into 2 Ohms, 4 Ohms, 70V or 100V lines are all possible, and no transformer is required. Additionally, amplifier channels can be bridged in pairs for double output power. A module slot for the optional RCM-810 remote control module provides control network functionality, allowing for remote system diagnostics via IRIS-Net software as well as Variable Load Drive (VLD).
- Key Features
-
- Eight amplifier channels, each can be run as either low or high impedance, delivering up to 500W per channel
- Phoenix-type input and output connections
- Remote power-on/off contact
- Rear-mounted attenuators
UPC: 800549363495 Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice CPS8.5 8-Channel Power Amplifier for RCM-810 IRIS-Net Remote Control Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice CPS8.5 Specs | | | Product Type | Power amplifier | | | | Functions | Amplifier | | Audio Specifications | Amplifier - Response Bandwidth - 15 - 30000 Hz | | Input Impedance | 20 kOhm | | Amplifier Output Details | 500 Watt - 4 Ohm - at 1 kHz - THD 1.0% - 8 channels
500 Watt - 2 Ohm - at 1 kHz - THD 1.0% - 8 channels
500 Watt - at 1 kHz - THD 1.0% - 8 channels (70/100V)
450 Watt - 4 Ohm - 20 - 20000 Hz - THD 0.3% - 8 channels
450 Watt - 2 Ohm - 20 - 20000 Hz - THD 0.3% - 8 channels
450 Watt - 20 - 20000 Hz - THD 0.3% - 8 channels (70/100V) | | Features | Input level controls, thermal protection, short circuit protection, over current protection, audio limiters protection, turn-on delay protection, bridged output capability | | | | Connectors | 8 x balanced audio input (Phoenix-type) - rear
8 x speakers output (Phoenix-type) - rear | | | | Voltage Required | AC 120 V | | | | Width | 18.9 in | | Depth | 16.6 in | | Height | 3.5 in | | Weight | 30.64 lbs | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 24.3 x 21.5 x 7.5" |
