User Manual for Electro-Voice Dual 12" Bass Element System Click to enlarge the picture
Contents of the user manual for the Electro-Voice Dual 12" Bass Element System
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice Dual 12" Bass Element System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

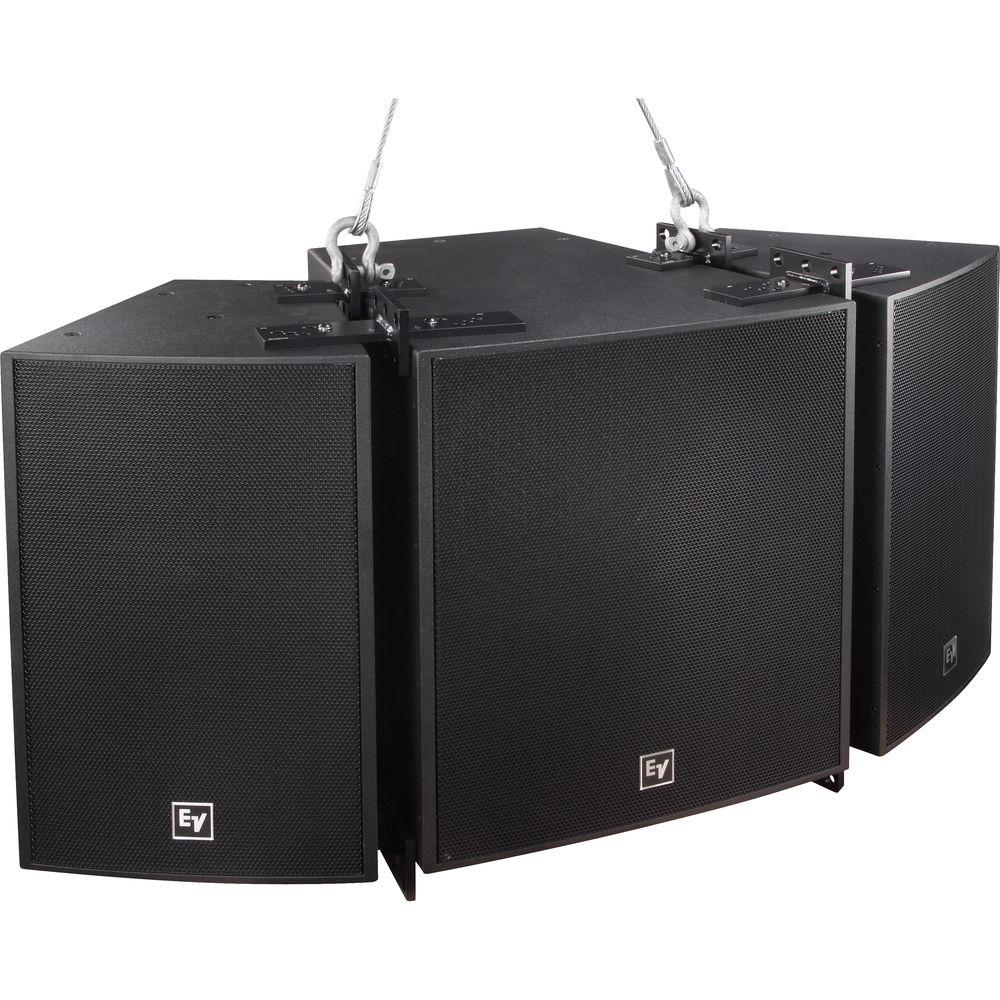

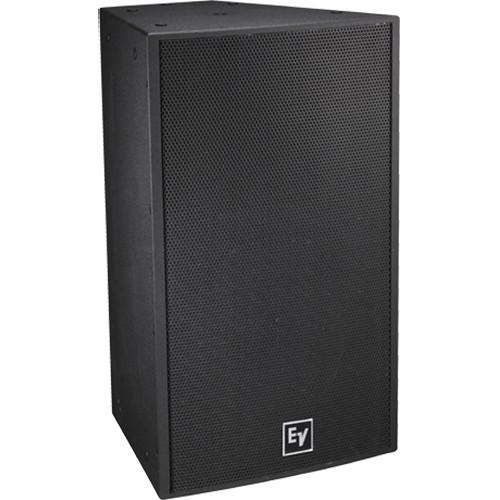

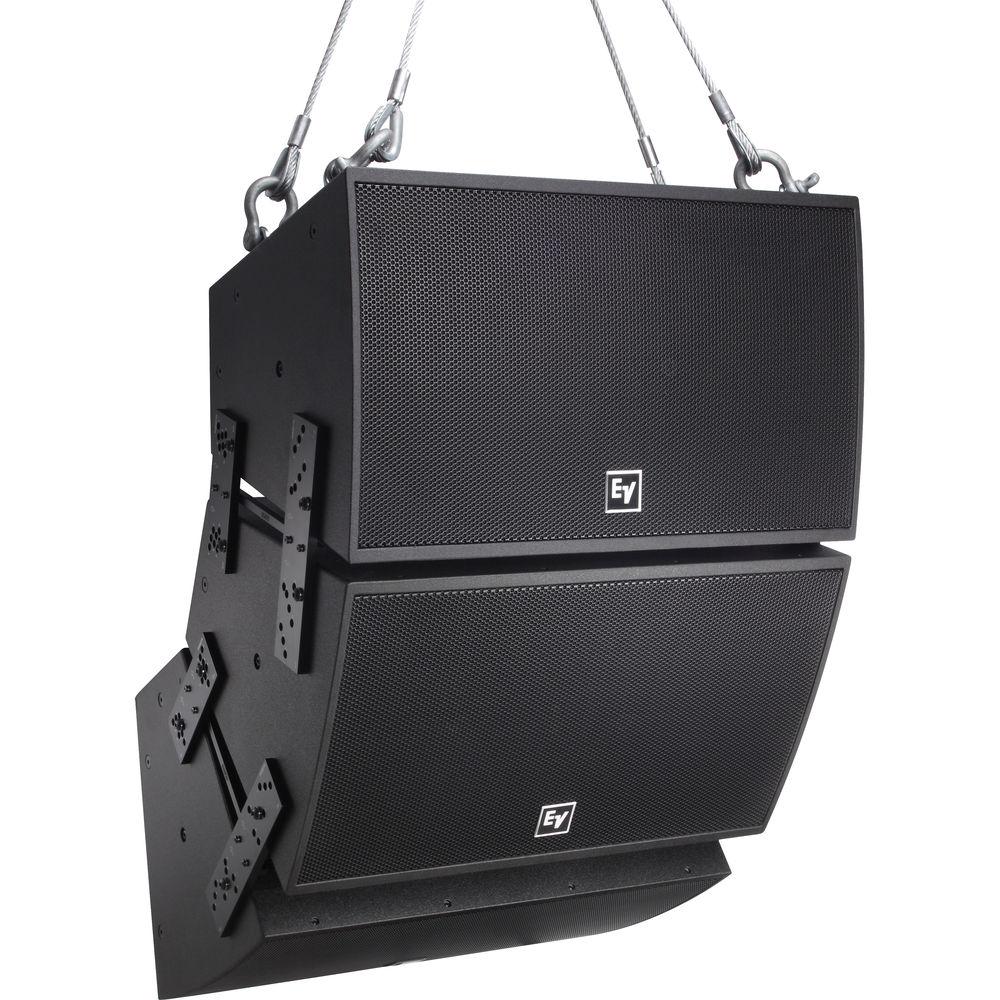

Product description The black, weather-resistant Dual 12" Bass Element System from Electro-Voice is a high-power, front-loaded bass element that can be used in a variety of applications where high-quality sound reinforcement is required. The system utilizes two 12" woofers, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL. The system features a phoenix-style connector and CDG gland-nut on the input panel. It also features an externally accessible jumper that lets you select passive or active operation. The system is enclosed in a trapezoidal enclosure that is constructed of weather-resistant birch, and coated with EVCoat for protection from the elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. -
- Dual EVS12SB 12” LF transducers
- 100 dB sensitivity, 135 dB maximum SPL
- System rating: 800 W continuous, 3200 W peak
- Twenty-two M10 threaded suspension points
UPC: 701001113644 Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Dual 12" Bass Element System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-2121S Specs | Frequency Response | -3 dB: 54 to 145 Hz Half-space measurement | | Frequency Range | -10 dB: 41 to 330 Hz Half-space measurement | | Frequency | Rec. High-Pass Frequency: 45 Hz | | Axial Sensitivity | 100 dB (1 W/1 m) Half-space measurement | | SPL | Maximum: 135 dB | | Coverage | Horizontal & Vertical Coverage: Omnidirectional | | Power Handling | Continuous: 800 W
Peak: 3200 W AES-1984, tested for eight hours. | | Transducer | LF Transducers: Dual EVS12SB, 12.0" (305 mm) drivers | | Impedance | Nominal: 4 Ohms
Minimum: 2.8 Ohms | | Connectors | Dual 4-pin 10 AWG Phoenix/EuroBlock screw-terminals
CDG gland-nut input panel cover | | Enclosure | 13-ply weather-resistant birch with EVCoat | | Grille | 16 GA powder-coated galvanneal with rotatable logo
Stainless steel with hydrophobic cloth | | Environmental | IEC 60529 IP55 | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 18.50 x 18.37" (768.6 x 469.8 x 466.6 mm) | | Weight | 82.4 lb (37.4 kg) |
