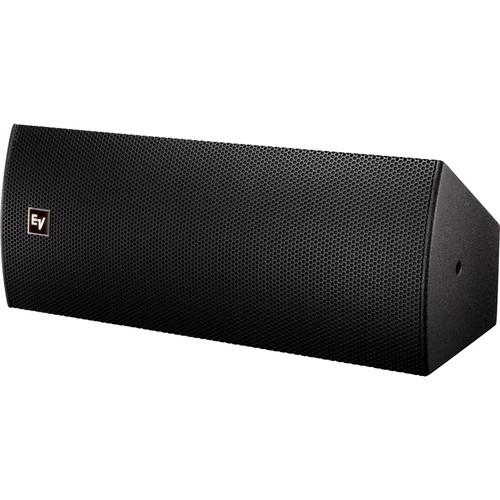

Product description The black Dual 8” Two-Way 90 x 50° Full-Range Loudspeaker System from Electro-Voice can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings.The system incorporates the ICT-1-8, a high-output 1.3” diaphragm titanium compression driver coupled to a Constant Directivity 90 x 50° rotatable waveguide. The ICT-8-16 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability.The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in black textured paint. Each system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed, not included). Additional mounting points are located on the rear of the enclosure for use with an omni-mount type bracket. -
- 1.3” diaphragm, 1.4” exit pure titanium compression driver
- Dual 8” (203 mm) LF transducers
- Advanced third-order crossover network with HF protection
- Coverage pattern: 90° x 50° Constant Directivity rotatable waveguide
- 95 dB sensitivity, 126 dB maximum SPL
- System rating: 350W continuous, 1400W peak
- Universal U-bracket included
- Six M8 threaded suspension points
UPC: 800549622790 In the Box Electro-Voice Dual 8" Two-Way 90 x 50 Full-Range Loudspeaker System (Black) Universal U-Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Dual 8" Two-Way 90 x 50 Full-Range Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.216.255 Specs | Frequency Response | -3 dB: 100 Hz to 16 kHz Half-space measurement | | Frequency Range | -10 dB: 60 Hz to 20 kHz Half-space measurement | | Coverage | 90 x 50° rotatable | | Frequency | Rec. High-Pass Frequency: 90 Hz
Passive Crossover Frequency: 2300 Hz | | Axial Sensitivity | 95 dB (1 W/1 m) Half-space measurement | | SPL | Maximum: 126 dB Half-space measurement | | Power Handling | Continuous: 350 W
Peak: 1400 W EIA RS-426A, tested for eight hours. | | Transducer | LF Transducers: Dual ICT-8-16, 8.0" (203 mm) drivers
HF Transducer: ICT-1-8, 1.3" (33 mm) diaphragm compression driver | | Impedance | Nominal: 8 Ohms
Minimum: 6 Ohms | | Connectors | Single four-pin 12 AWG Phoenix/Euro Block screw-terminals | | Enclosure | 9-ply hardwood plywood with textured paint | | Grille | 18 GA steel with cloth | | Environmental | IEC 60529 | | Suspension | 6 x M8 threaded suspension points | | Dimensions (H x W x D) | 9.73 x 24.2 x 9.34" (247 x 615 x 237 mm) | | Weight | 28.3 lb (12.8 kg) | | | | Package Weight | 37.5 lb | | Box Dimensions (LxWxH) | 29.3 x 15.0 x 14.5" |
