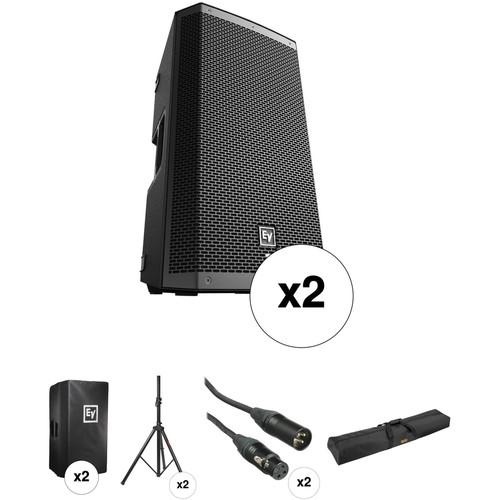

Electro-Voice Dual ZLX-12P-US 12" Two-Way Powered

User Manual for Electro-Voice Dual ZLX-12P-US 12" Two-Way Powered Loudspeakers & Essential Accessories Kit

• Product category: PA Speakers Electro-Voice
• Brand: Electro-Voice
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Electro-Voice PA Speakers

Product description

• 2 x Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker (Black) The black Electro Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker is a compact and versatile loudspeaker featuring custom-engineered drivers in a rugged enclosure. The loudspeaker features a grille made of 18-gauge steel with a black powder-coat finish. The loudspeaker matches the specially developed drivers with a custom-built Class-D amplifier module and powerful DSP. Whether pole-mounted or used as a floor monitor, the loudspeaker delivers powerful sonic impact and intelligibility. Note: This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state, and federal overhead-suspension ordinances.
  • LCD display and 1-knob DSP control with presets for precise and speedy setup
  • Input-level meters and independent amplifier control to ensure optimal gain structure
  • Front LED for "power on" and "limit" indication
  • Patented split-baffle design for superior driver-time alignment
  • Durable composite construction with innovative high/low-grip design for easy pole-mounting
  UPC: 800549697477
• 2 x Electro-Voice ZLX-12-CVR Padded Cover for ZLX-12 Two-Way Passive Loudspeaker (Black) Store, transport, and protect your ZLX-12 Two-Way Passive Loudspeaker from dirt, dust and scratches with the black ZLX-12-CVR Padded Cover from Electro Voice. The cover is made of polypropylene with fleece lining and has a black hook and loop fastener. Users will appreciate the handle access openings, exterior slip-in accessory pocket, and white embroidered EV logo on the front.
  • Features an embroidered white logo and a black hook-and-loop fastener
  UPC: 800549714464
• 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304
• Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432

• 2 x ZLX-12P-US 12" Two-Way Powered Loudspeaker (Black) cybxtuqzevxfbdcexztfruuruzcbsa
• Includes Power Cord
• Limited 3-Year Warranty

• 2 x ZLX-12-CVR Padded Cover for ZLX-12 Two-Way Passive Loudspeaker (Black)

• 2 x Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

• Auray - Speaker Stand Bag 51" Interior (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker (Black)

  Frequency Response	65 Hz to 18 kHz Using MUSIC DSP preset.
  Frequency Range	50 Hz to 20 kHz Using MUSIC DSP preset.
  Maximum SPL	126 dB
  Coverage	90 x 60° (H x V)
  Power Rating	1000 W
  Transducer Type	LF: EVS-12K, 12" (300 mm) HF: DH-1K
  Connectors	2 x XLR/TRS Combo Jack, 1 x 3.5 mm Input, and 1 x XLR link Output
  Enclosure	Polypropylene
  Grille	18-gauge steel with black powder coat
  Dimensions (H x W x D)	24.0 x 14.0 x 14.0" (609.6 x 355.6 x 355.6 mm)
  Weight	34.3 lb (15.5 kg)

  Box Dimensions (LxWxH)	26.1 x 16.1 x 15.1"

• 2 x Electro-Voice ZLX-12-CVR Padded Cover for ZLX-12 Two-Way Passive Loudspeaker (Black)

  Type	Cover
  Material of Construction	Fleece, Polypropylene
  Exterior Dimensions (W x H x D)	14.9 x 27.0" / 37.8 x 68.7 cm
  Weight	2 lb / 0.9 kg

  Box Dimensions (LxWxH)	25.5 x 14.0 x 2.0"

• 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)

  Type	Speaker Stand
  Mount Size	1-3/8"
  Height Adjustment Range	50 to 75" / 1.27 to 1.9 m
  Material of Construction	Steel
  Base Spread	54" / 137 cm
  Weight	6.2 lb / 2.8 kg

  Box Dimensions (LxWxH)	40.0 x 5.0 x 5.0"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"
