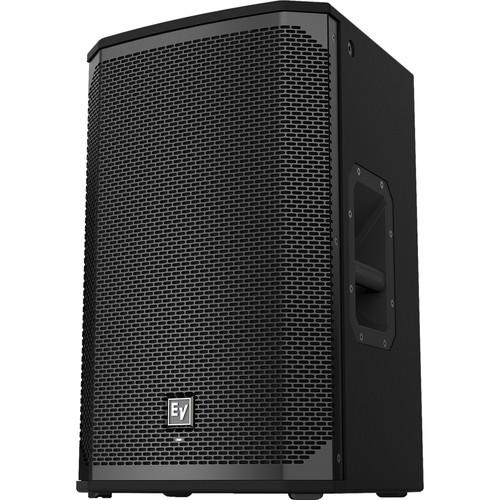

User Manual for Electro-Voice EKX-12P 12" Two-Way Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice EKX-12P 12" Two-Way Powered Loudspeaker
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EKX-12P 12" Two-Way Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description With a 12" woofer and a 1" titanium compressor driver, the EKX-12P from Electro-Voice is a powered two-way Loudspeaker providing 1500W of Class D amplification. It's suitable in live-music scenarios, lecture setups, and generalized nightclub use. The loudspeaker's integrated QuickSmartDSP technology can be modified using the LCD-based menu-navigation screen and the single-knob user interface. Four presets of DSP are provided for various settings—Music, Live, Speech, and Club—though EQ manipulation and five user-programmable presets are all adjustable. Visual monitoring of your limiter, input metering, and master volume allow you to gain-stage properly.
Its on-board amplifier can deliver up to 132 dB of SPL, its frequency response ranges from 50 Hz to 20 kHz at -10 dB, and its intelligent thermal-management system controls fan-speed by means of multiple built-in sensors, thus reinforcing the durable performance of this speaker (whose 15mm wooden enclosure is fronted by an 18 AWG steel grille). Electro-Voice's SST waveguide design provides measured and dependable coverage of a given area, and the speaker's Cardioid Control Technology allows you to steer output towards the audience while reducing levels up to 35 dB on stage when multiple subwoofers are employed.

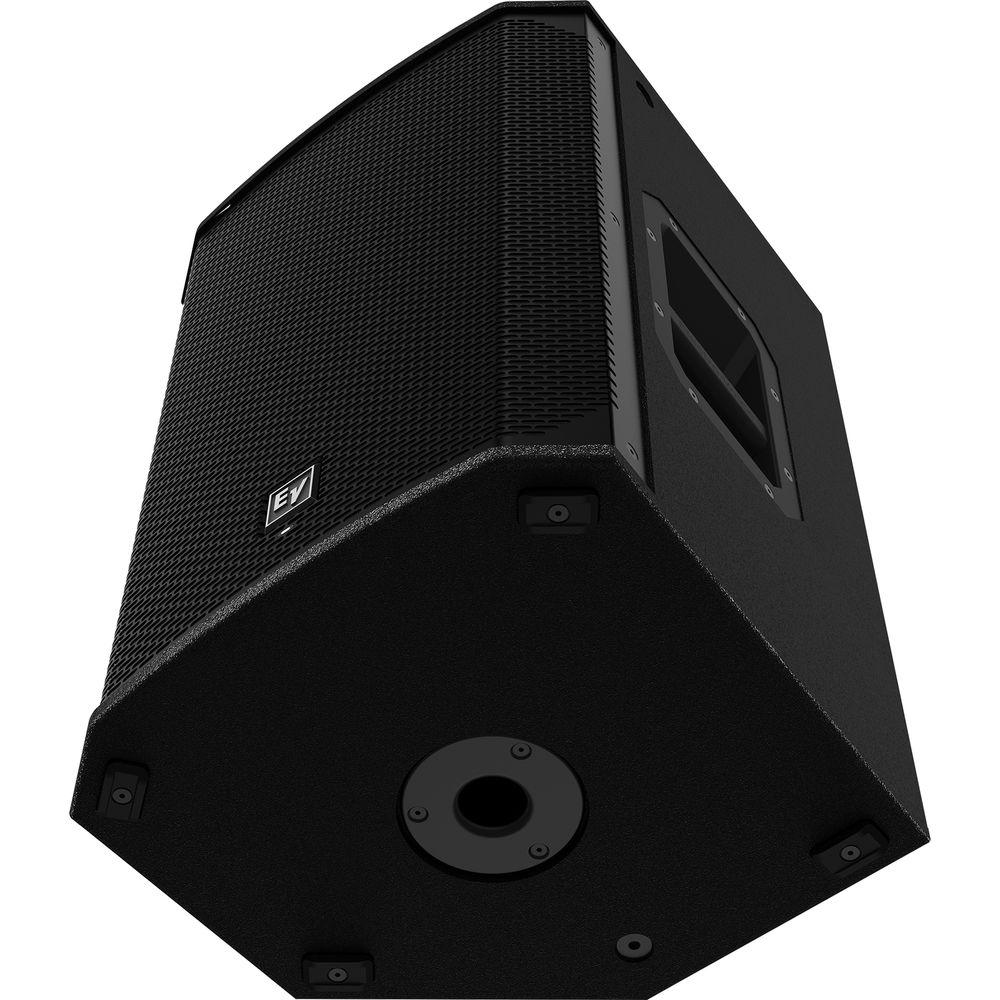

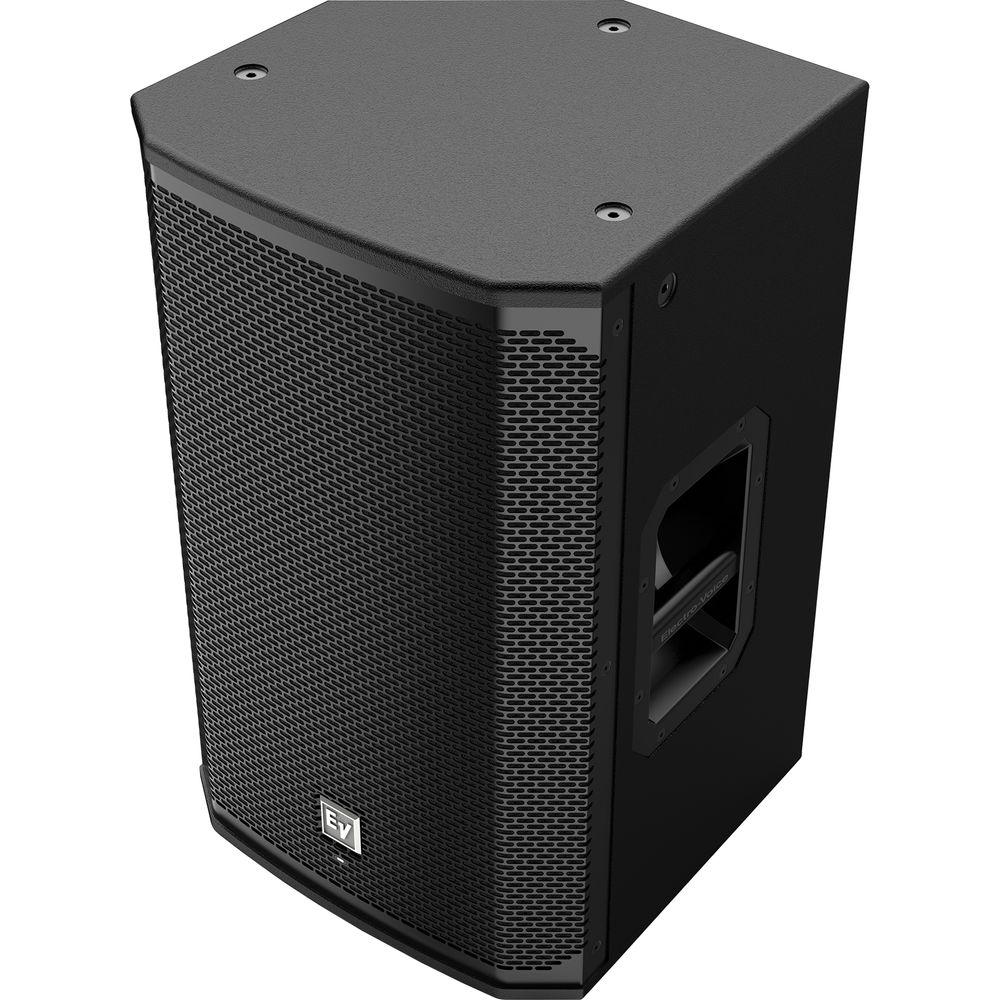

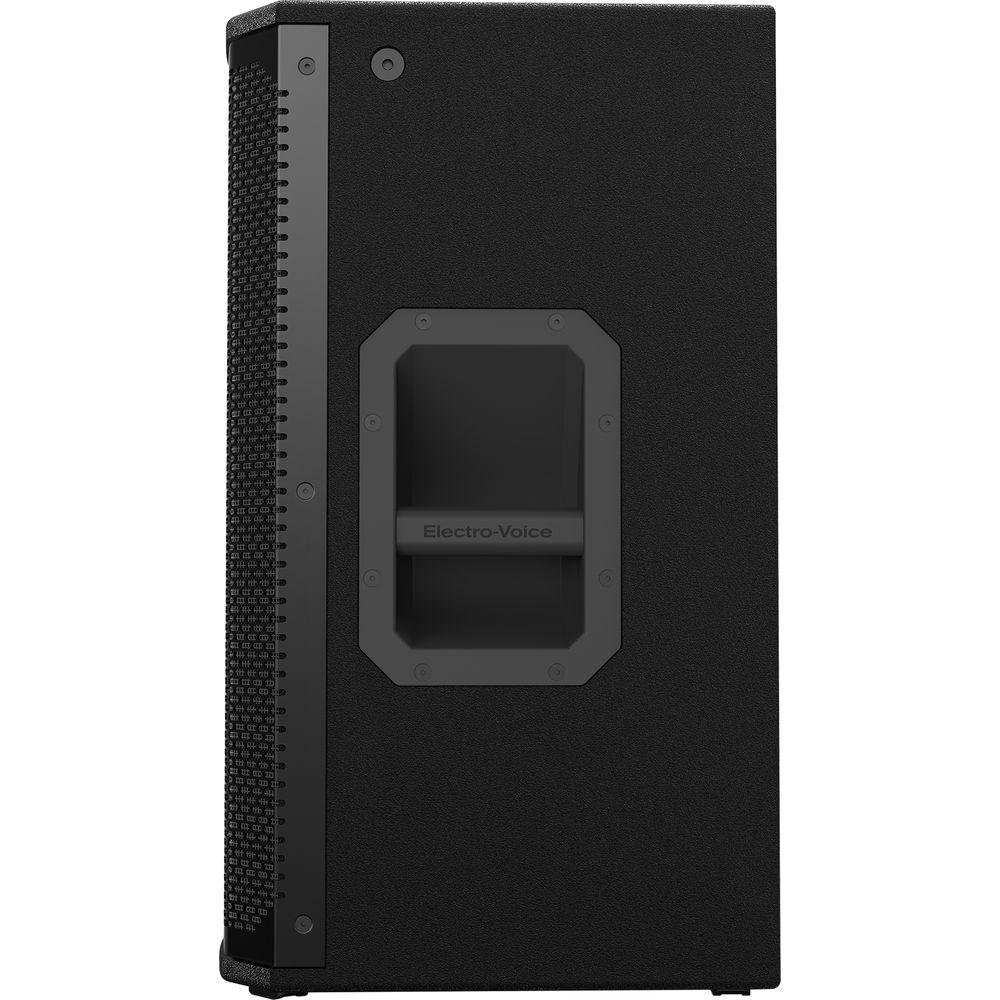

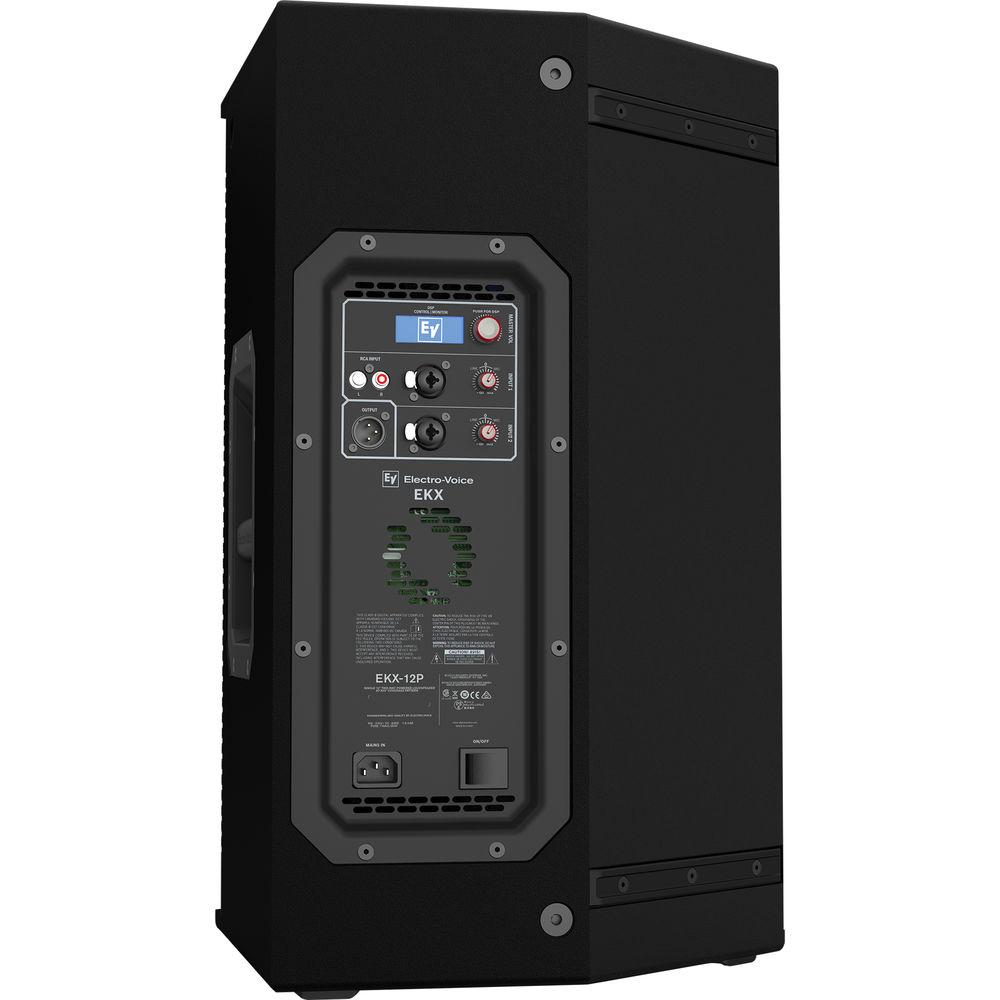

For convenience in mounting and transport, this loudspeaker boasts eight M10 threaded mounting points, aluminum pole mounts, and metallic handles; as such, it can be mounted on a tripod stand, on a pole above your subwoofer, or utilized as a floor monitor for artists on stage. You can feed the speaker sweet, sweet audio via RCA inputs or XLR/1/4" combination jacks, and you can link it to other monitors via an XLR link-output. UPC: 800549772167 In the Box Electro-Voice EKX-12P 12" Two-Way Powered Loudspeaker Limited 3-Year Warranty User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EKX-12P 12" Two-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EKX-12P Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1500 W | | | | HF Driver | 1 x 1" / 25.4 mm Titanium Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Response | 50 Hz to 20 kHz -10 dB
60 Hz to 18 kHz -3 dB | | Maximum SPL | 132 dB | | Coverage Angle | 90° H x 60° V At -6 dB | | | | Audio I/O | 1 x Stereo RCA Input
2 x Combo XLR / 1/4"
1 x XLR Thru/Output | | | | Current Consumption | 1.8 A (1/8 Power) | | | | Mounting | 8 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 23.9 x 14.8 x 14.0" / 60.7 x 37.5 x 35.6 cm | | Weight | 41.5 lb / 18.8 kg | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 17.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
