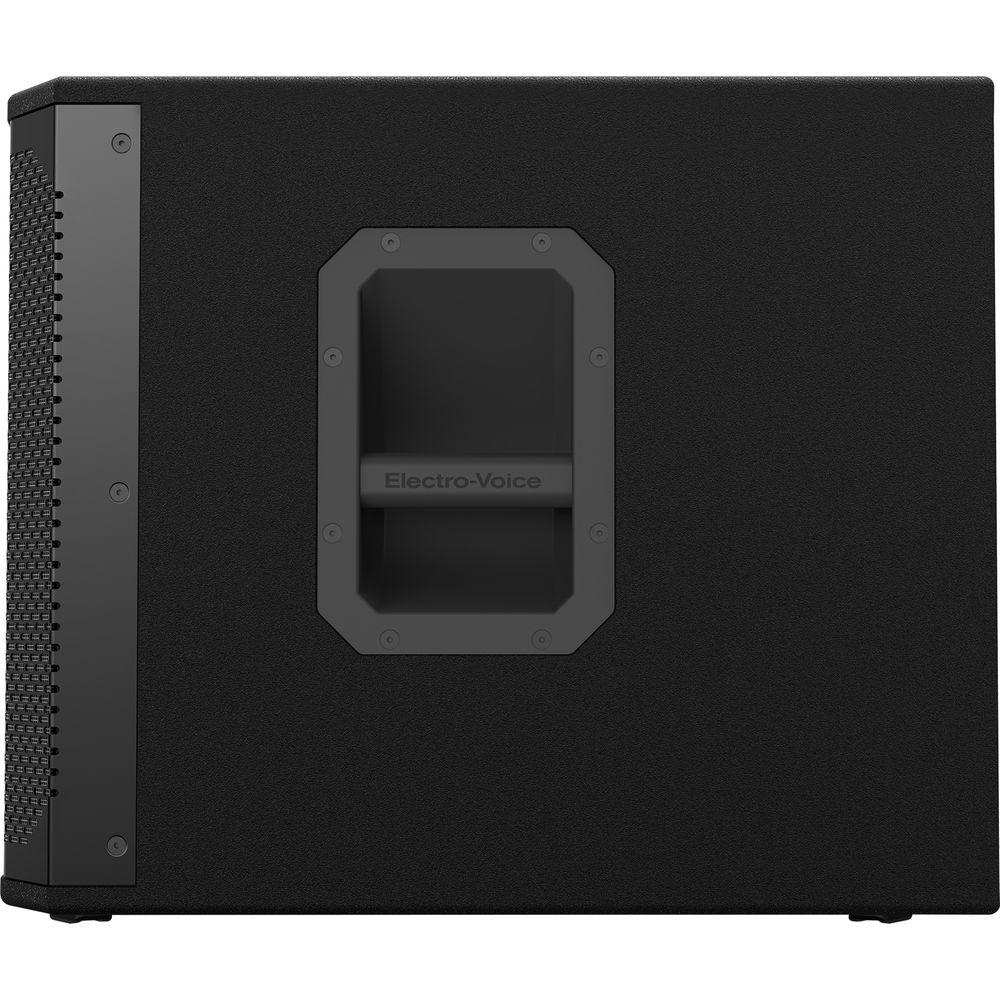

User Manual for Electro-Voice EKX-15SP Powered 15" Subwoofer with US Power Cord Click to enlarge the picture
Contents of the user manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer with
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The EKX-15SP from Electro-Voice is a powered subwoofer suitable for live-music and DJ purposes. It features a 1300W class D amplifier capable of delivering up to 133 dB of peak SPL, utilizing its EV transducer for this express purpose.
Via the single-knob user interface and backlit LCD navigation screen, you can easily manipulate its on-board QuickSmartDSP processing. Cardioid Control Technology allows you to steer signal towards the audience while simultaneously providing up to 35 dB of sound reduction on stage.

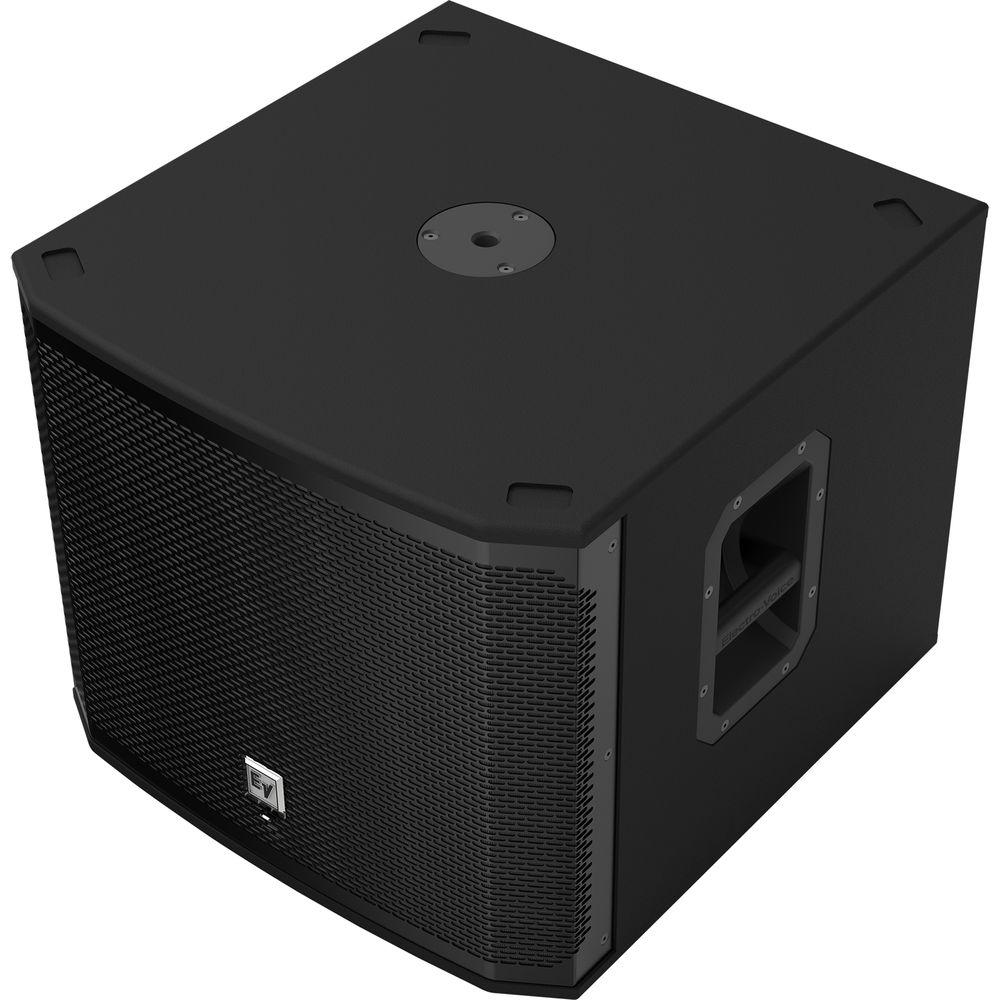

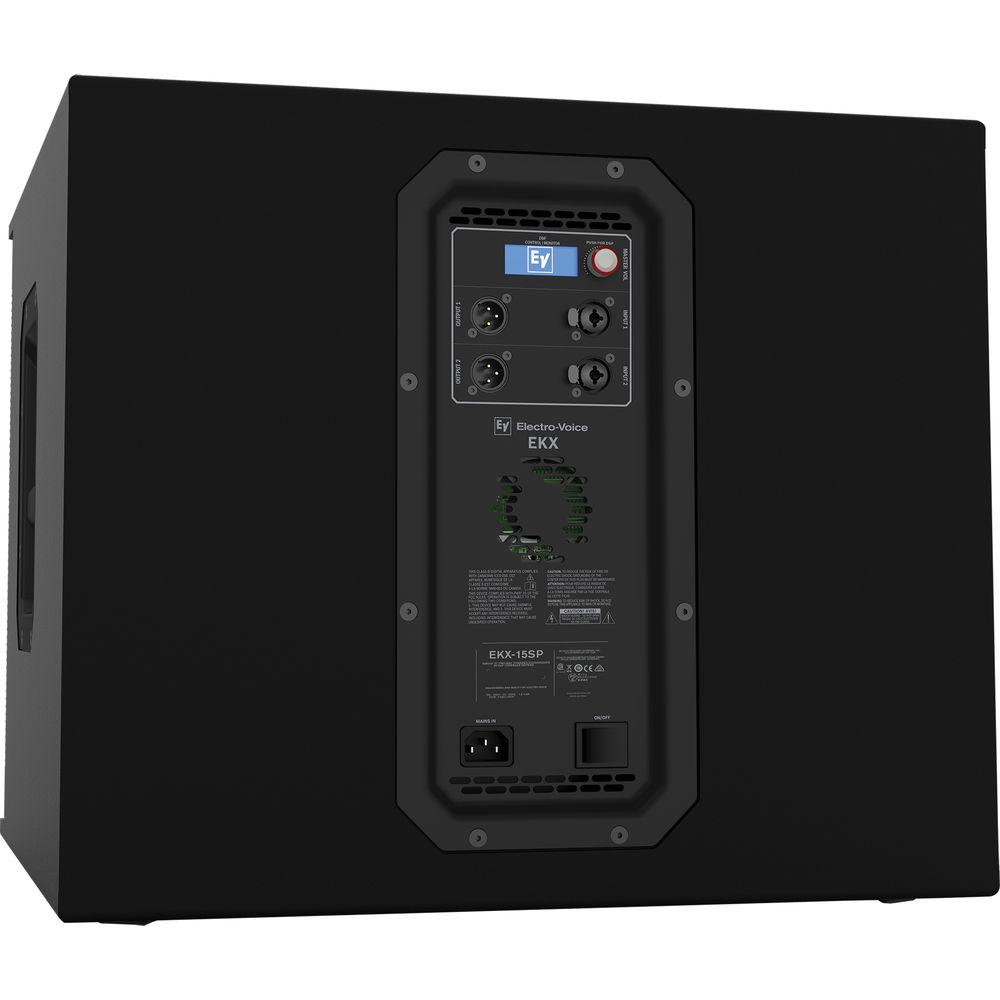

An intelligent thermal management system automatically adjusts the variable-speed fan by means of built-in sensors. With two XLR outputs, you can easily integrate the EKX-15SP with additional loudspeakers and subwoofers. The subwoofer boasts large slot ports to facilitate low distortion and low-frequency extension, as well as a metal grille reinforcement bar and an M20 threaded pole-mount plate. - QuickSmartDSP processing, EV's single-knob user interface, and intuitive menu navigation via LCD
- Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed
- 1300 W Class D power amplifier delivers up to 133 dB peak SPL utilizing high-sensitivity EV transducers
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors
UPC: 800549772211 In the Box Electro-Voice EKX-15SP Powered 15" Subwoofer with US Power Cord Limited 3-Year Warranty User Manual PDF 5.2mburbaawaruxxtxdwrwzuecwf Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer with US Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EKX-15SP Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1300 W | | | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 40 Hz to 180 Hz -10 dB
45 Hz to 150 Hz -3 dB (Half-Space) | | Maximum SPL | 133 dB (Peak) | | | | Audio I/O | 1 x Combo XLR / 1/4"
1 x XLR Thru/Output | | | | Filters | Low-Pass:
80 Hz to 150 Hz 80 / 100 / 120 / 150 Hz | | | | Current Consumption | 1.8 A (1/8 Power) | | | | Construction Material | Metal Grille, Plywood | | Dimensions | 17.9 x 20.9 x 21.7" / 45.5 x 53.0 x 55.1 cm | | Weight | 57.8 lb / 26.2 kg | | | | Package Weight | 72.55 lb | | Box Dimensions (LxWxH) | 26.3 x 24.0 x 21.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
