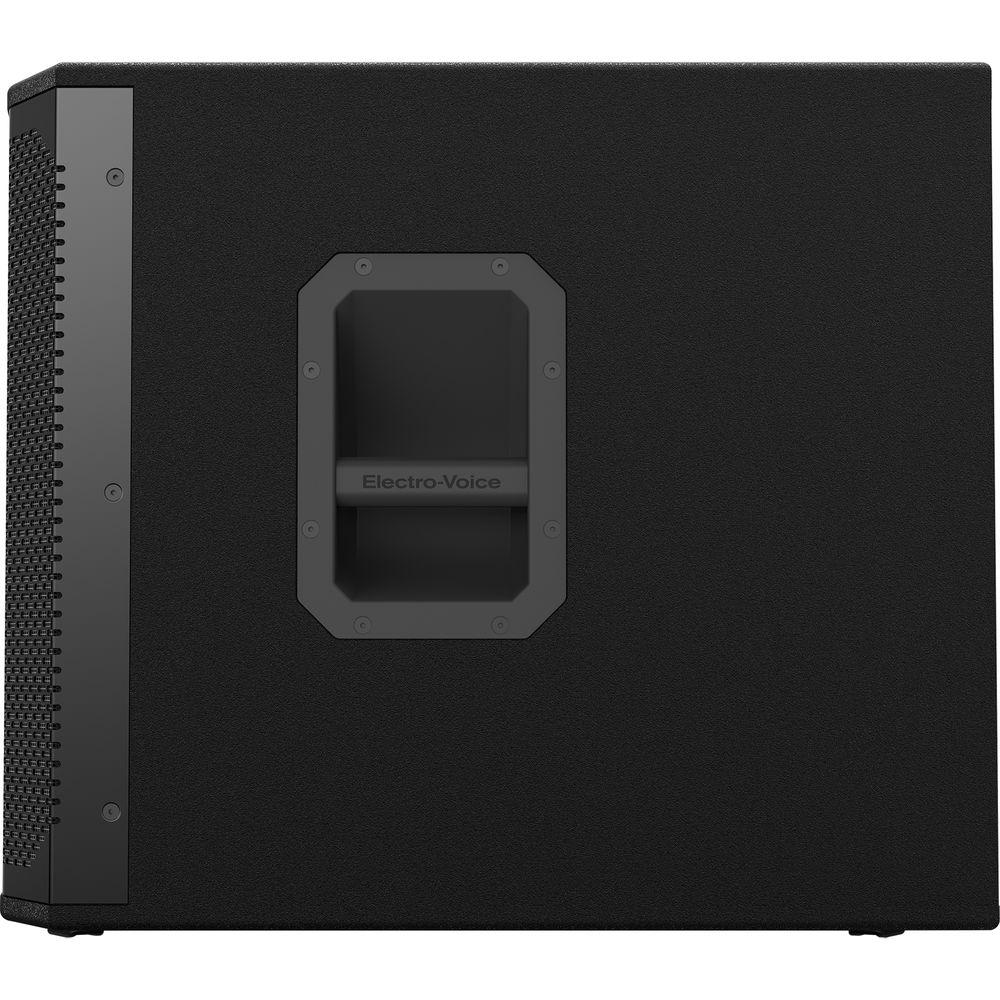

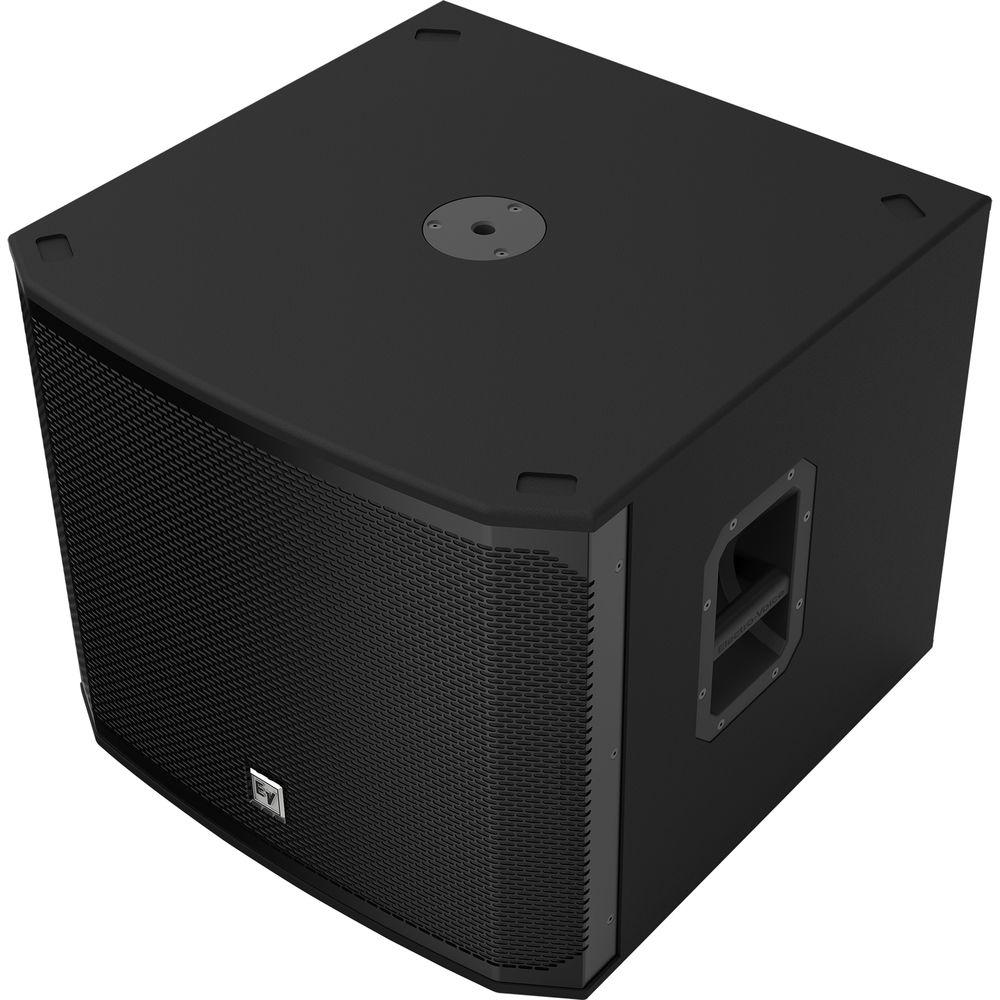

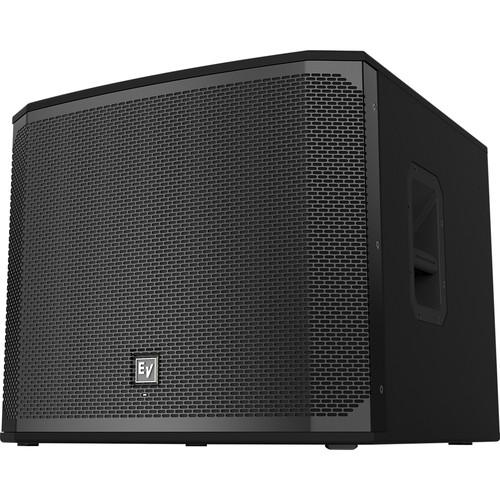

User Manual for Electro-Voice EKX-18S Passive 18" Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice EKX-18S Passive 18" Subwoofer
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EKX-18S Passive 18" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The EKX-18S Passive 18" Subwoofer from Electro-Voice has a 1600W peak and delivers up to 134 dB peak SPL utilizing high-sensitivity transducers. The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by onboard sensors).
The EKX-18S is ideal for portable and installed applications. It has a lightweight and compact 15mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole-mounts, and metal handles. - 1600 W (peak), 134 dB peak SPL utilizing high sensitivity transducers
- Lightweight, compact 15mm wood enclosure with internal bracing, and durable EVCoat finish
- Large slot ports for low distortion and excellent bass extension
- Two metal grille reinforcement bars
- M20 threaded pole mount plate.
UPC: 800549772150 In the Box Electro-Voice EKX-18S Passive 18" Subwoofer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EKX-18S Passive 18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EKX-18S Specs | Axial Sensitivity | 96 dB (SPL 1 W/3.3' (1 m) | | Connector Type | Dual NL4 | | Coverage | Nominal: -6 dB
Horizontal: 90°
Vertical: 60° | | Enclosure Material | 15 mm plywood with EVCoat | | Frequency Response | -10 dB: 35 to 300 Hz
-3 dB: 50 to 100 Hz Half Space Measurement | | Grille | 18 AWG steel with powder-coat | | Low Frequency Transducer | EVS-18C 18" (457 mm) | | Maximum SPL | 134 dB Maximum SPL is measured at 3.3' (1 m) using broadband pink noise at rated peak power rating | | Impedance | Minimum: 7 ohms
Nominal: 8 ohms | | Power Handling | Continuous: 400 W
Peak: 1600 W | | High Pass Crossover | 30 Hz (recommended frequency) | | Dimensions | 20.47 x 23.86 x 24.09" (52.0 x 60.6 x 61.2 cm) | | Weight | 70.11 lb (31.8 kg) | | | | Package Weight | 84.8 lb | | Box Dimensions (LxWxH) | 28.0 x 26.0 x 24.0" |
