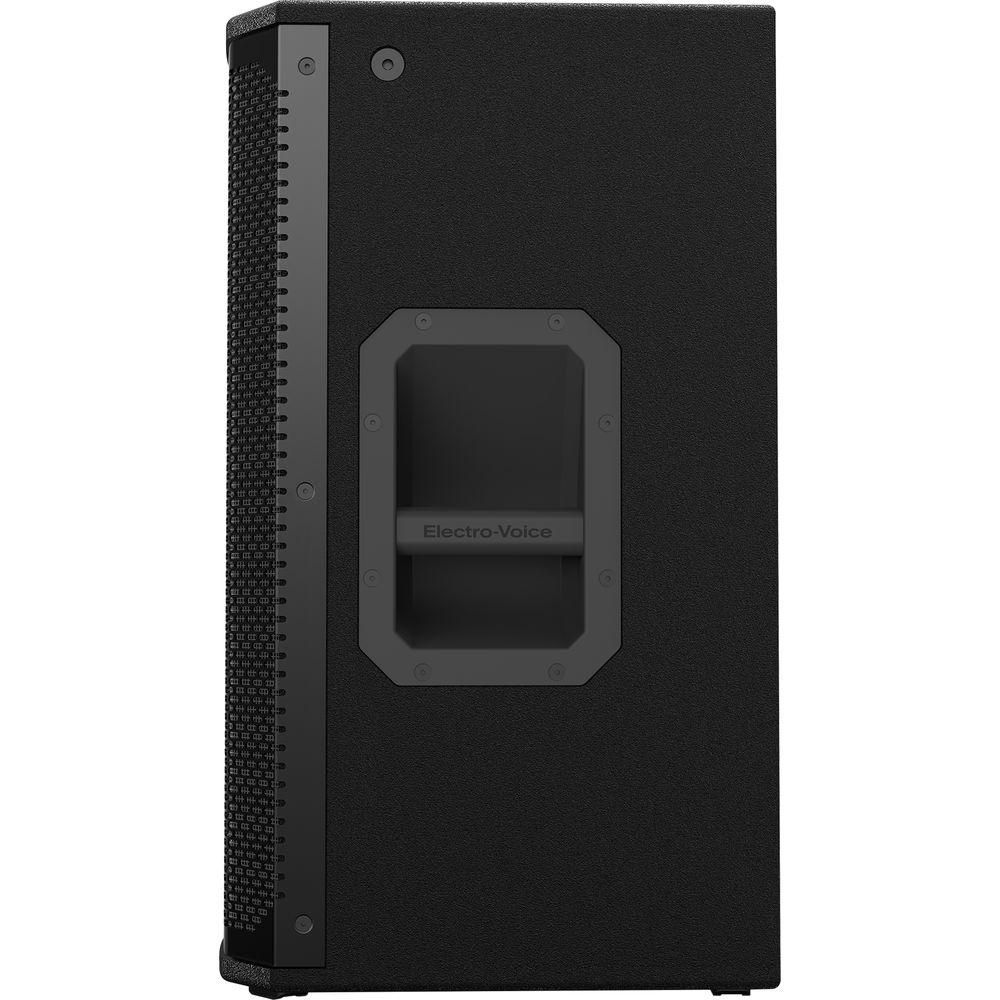

User Manual for Electro-Voice EKX Series EKX-12 12" Two-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice EKX Series EKX-12 12" Two-Way
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EKX Series EKX-12 12" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

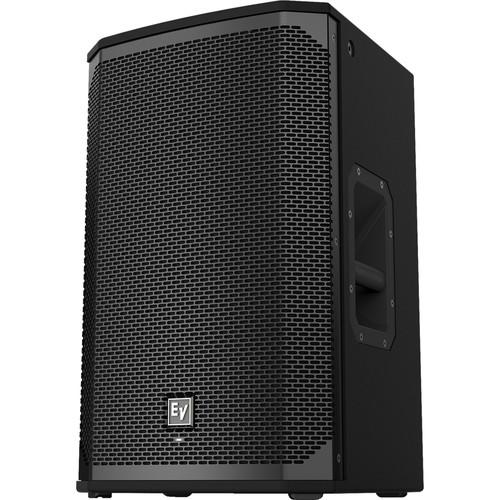

Product description The black EKX Series EKX-12 Two-Way Loudspeaker from Electro-Voice comes housed in a robust and compact wood enclosure with durable EVCoat finish. The Signal Synchronized Transducers (SST) waveguide design provides precise coverage and good sound quality at high SPLs. The 12" EVS-12M woofer, coupled with a DH-1M 1" titanium compression driver, allows the EKX-12 2-Way loudspeaker to deliver SPL of up to 131 dB. It is suitable for a wide range of sound reinforcement scenarios including musicians/DJs and live/club/installed sound applications. -
- 1400W peak power
- 90° x 60° pattern coverage for best coverage on mid-size stages
- 40° monitor angle with rubber feet
- Lightweight, compact 15mm wood enclosure with internal bracing and durable EVCoat finish
- Eight M10 threaded mounting points, aluminum pole-mounts, and all-metal handles
UPC: 800549772129 In the Box Electro-Voice EKX Series EKX-12 12" Two-Way Loudspeaker (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EKX Series EKX-12 12" Two-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.303.364 Specs | Active or Passive | Active | | Frequency Response | At -3 dB: 82 Hz to 18 kHz
At -10 dB: 55 Hz to 20 kHz
Full space measurement | | Frequency | Rec. High-Pass: 55 Hz | | Power Capacity | 350 W continuous, 1400 W peak | | Axial Sensitivity | 55 Hz to 20 kHz
Full space measurement | | Maximum Sound Pressure Level (SPL) | 131 dB
Maximum SPL is measured at 3.3' (1 m) using broadband pink noise at rated peak power rating | | Impedance | Nominal: 8 Ohms
Minimum Impedance: 7.5 Ohms | | Crossover | 1.6 kHz | | Coverage | 90° x 60° | | Low Frequency Driver | EVS-12M 12" (30 cm) | | High Frequency Driver | DH-1M 1" (2.54 cm) titanium compression driver | | Enclosure Material | 0.6" (1.5 cm) plywood with EVCoat finish | | Grille | 18 AWG steel with powdercoat | | Input Connections | Dual NL4 | | Suspension | 8 x M10 threaded mounting points | | Dimensions | 24 x 15 x 14" (607 x 375 x 356 mm) | | Weight | 38.3 lb (17.4 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
