User Manual for Electro-Voice ELX115 15" Live X 2-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX115 15" Live X 2-Way
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ELX115 15" Live X 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

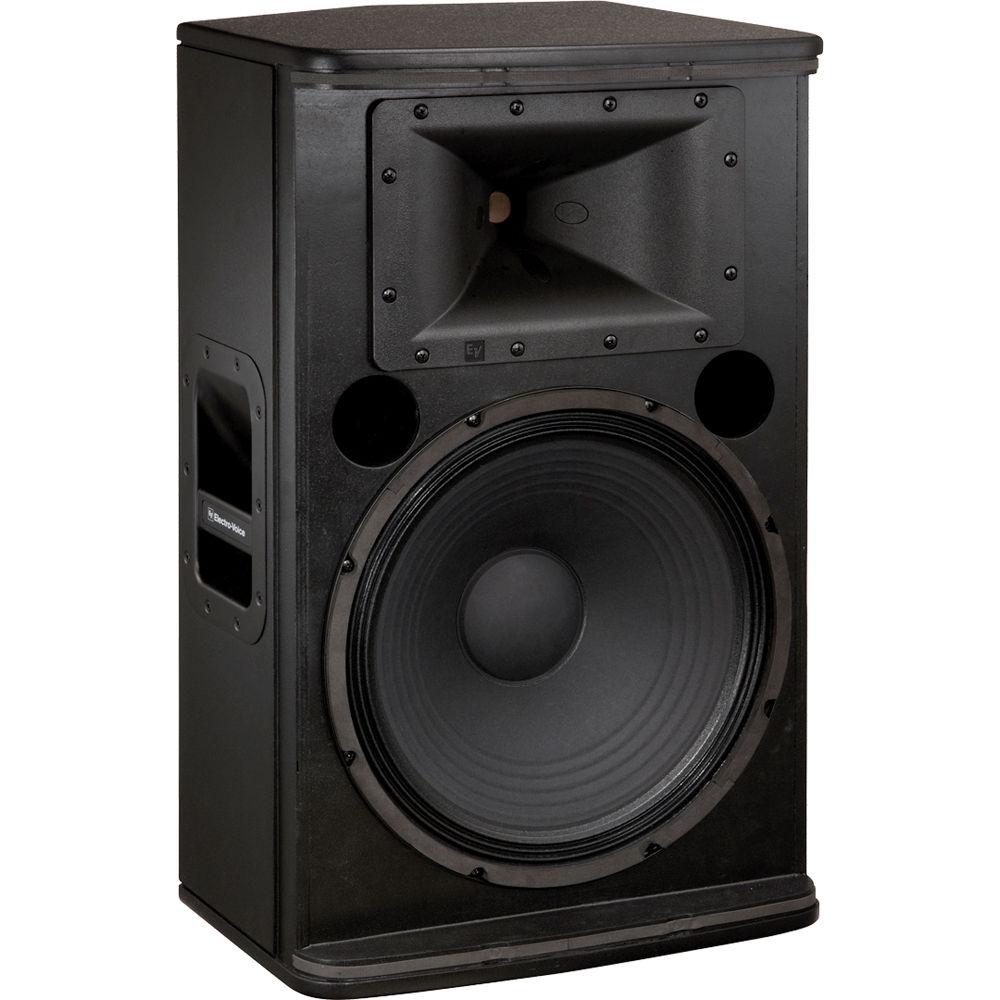

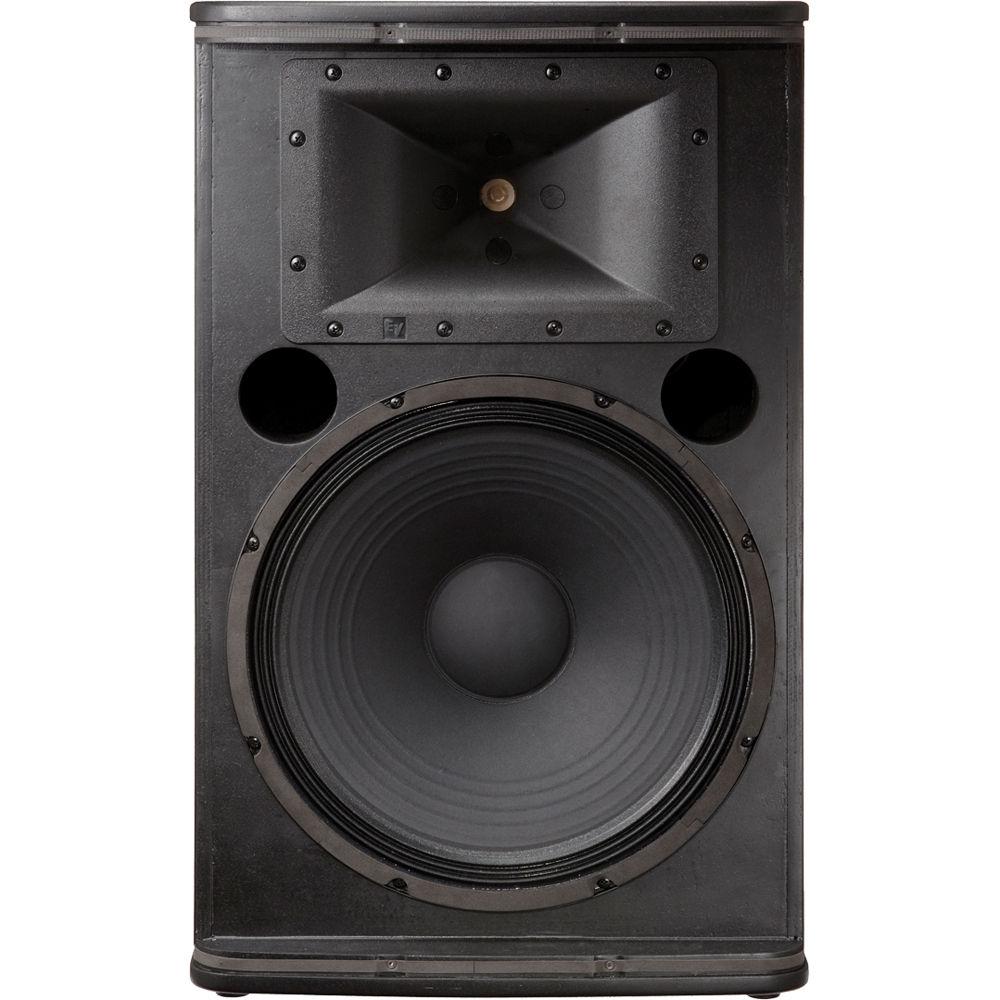

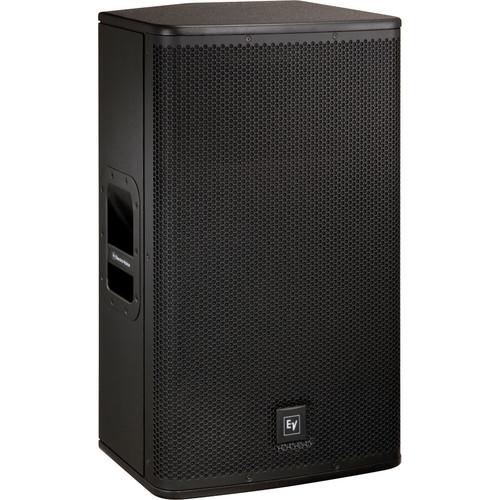

Product description The ELX115 from Electro-Voice is a 2-way passive loudspeaker that offers pro-quality audio for sound reinforcement, PA, and stage monitoring applications. The speaker has a 15" woofer and a 1.5" titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 400W continuous (1600W peak) power handling capability to provide a strong, distortion-free performance.
The plywood cabinet can be placed vertically or horizontally for terrific versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation. - The 15" woofer and a 1.5" titanium compression driver provide crisp, natural audio with a wide frequency response
- The speaker has a 400W continuous (1600W peak) power handling capability to provide a strong, distortion-free performance

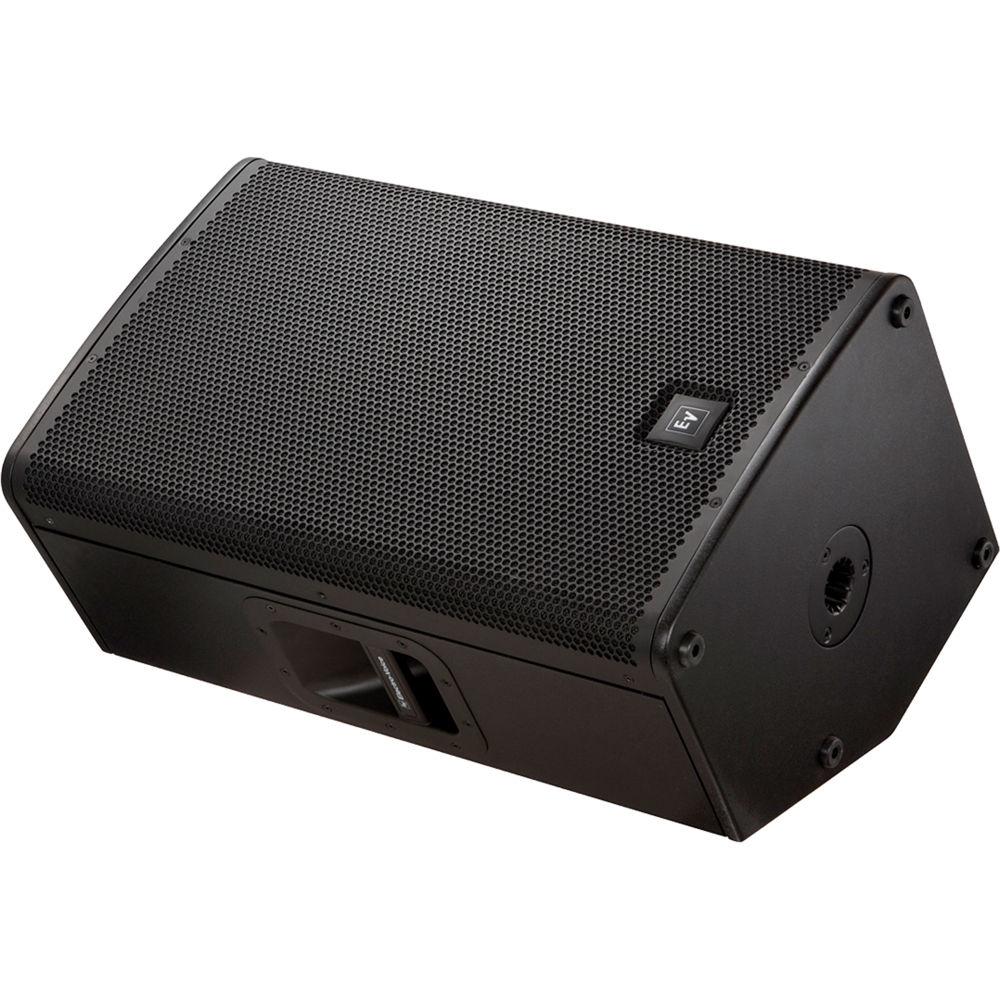

- The plywood cabinet can be placed vertically or horizontally for terrific versatility for PA or stage monitoring applications
- The standard 35mm pole socket lets you create stacks or mount the speaker on top of a subwoofer

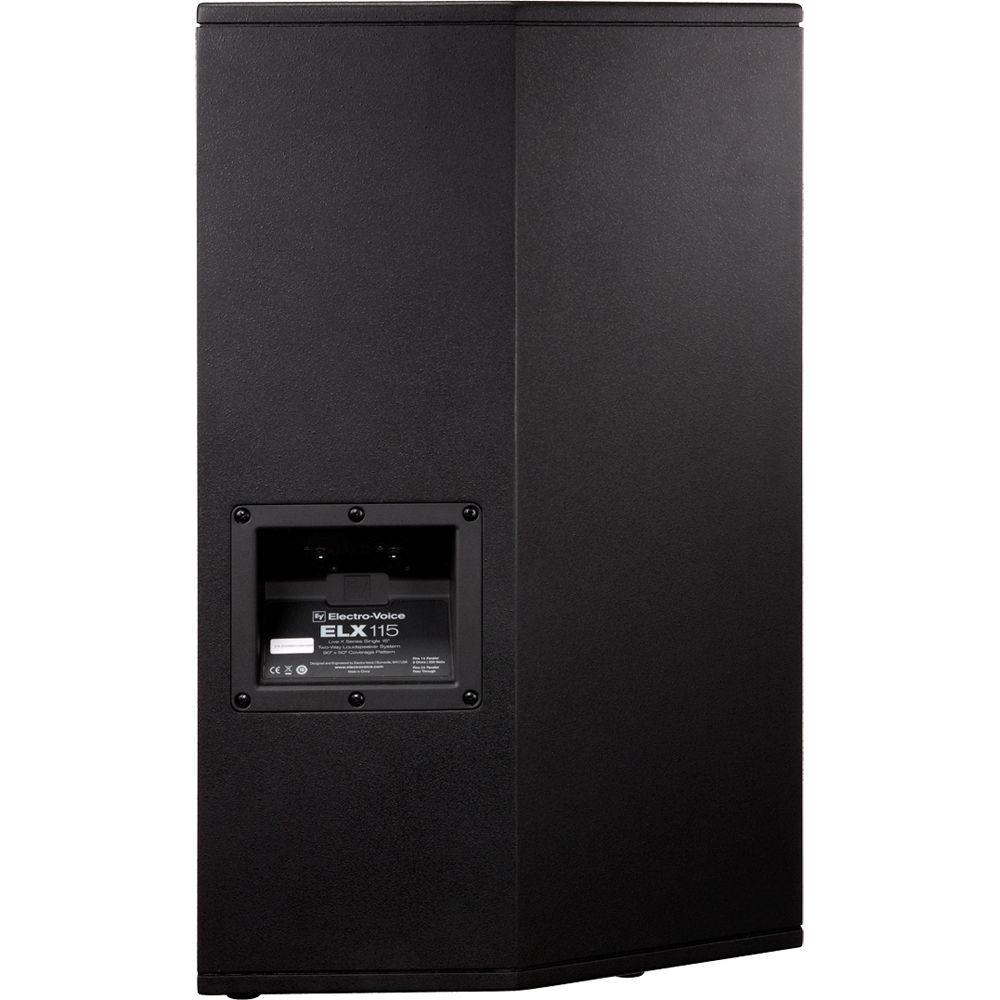

- A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system

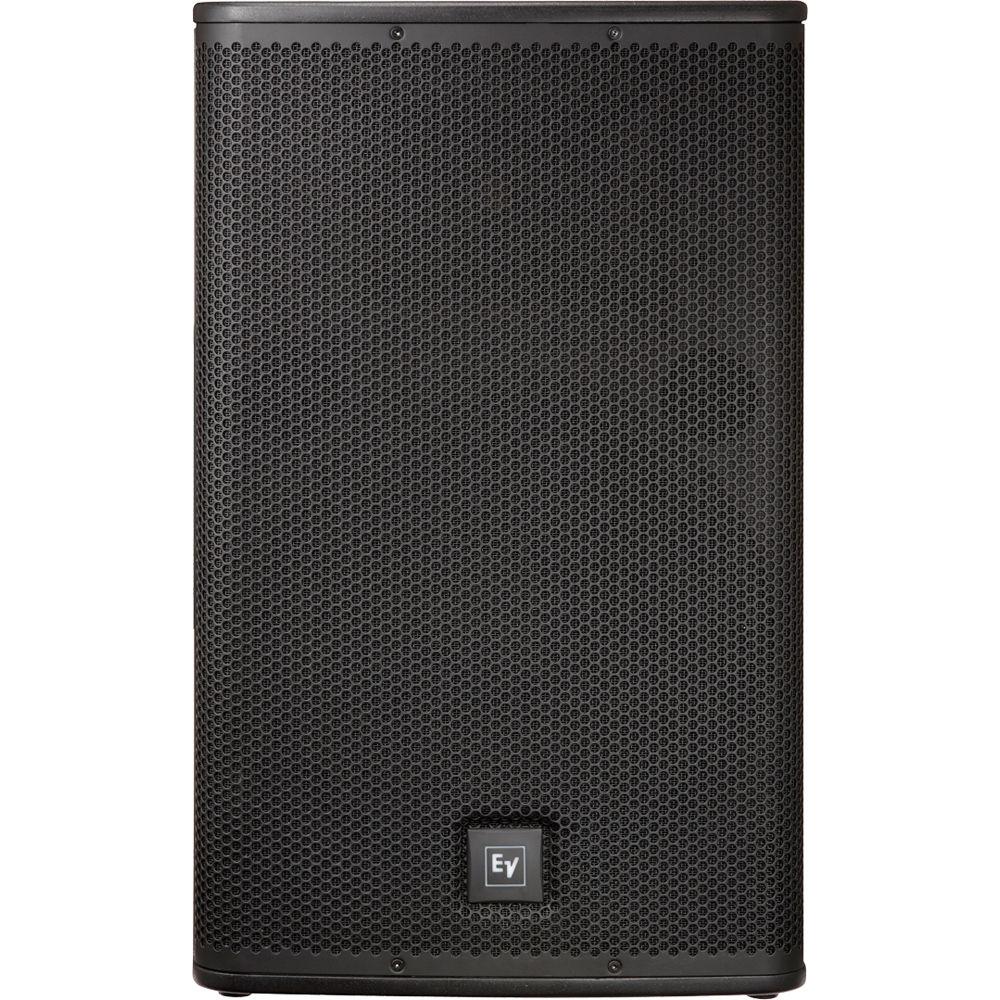

- The steel grille protects the driver elements and provides a sleek look

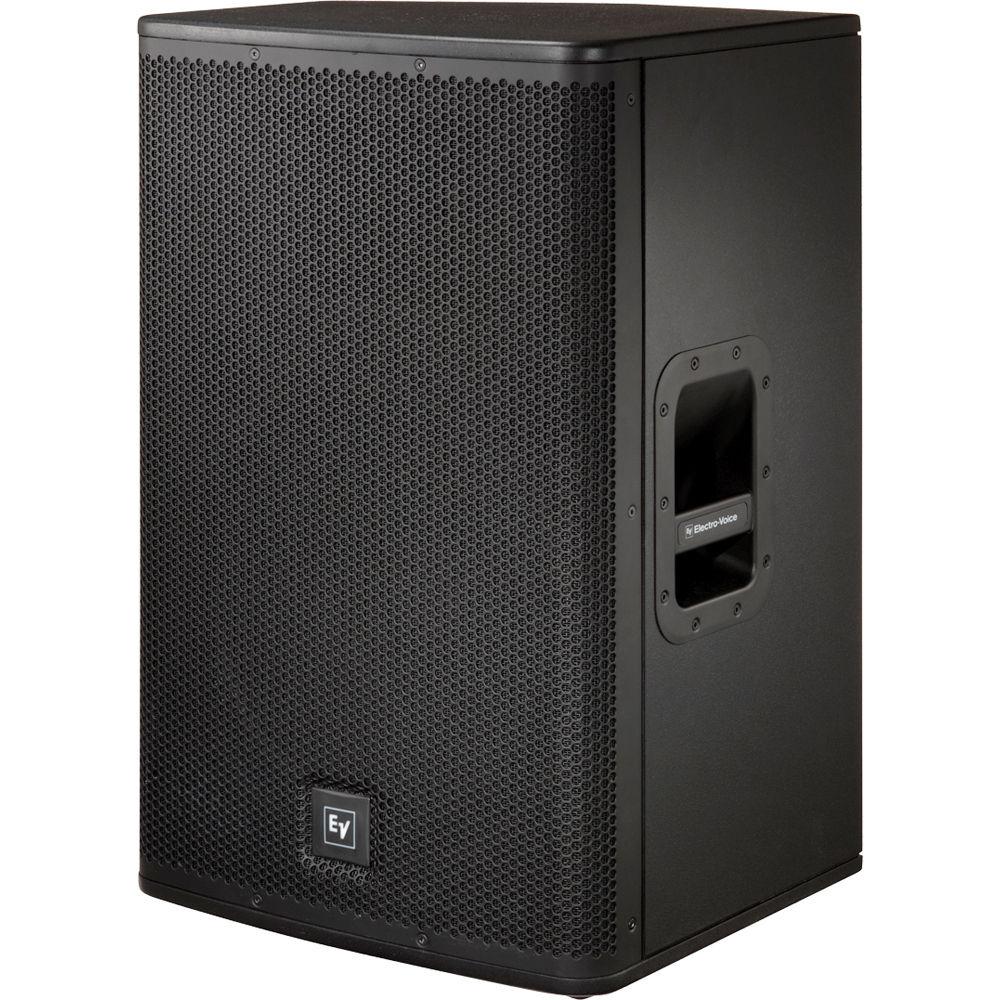

- Integrated carrying handles provide convenient transportation
UPC: 800549589543 In the Box Electro-Voice ELX115 15" Live X 2-Way Passive Loudspeaker 5-Year Limited Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX115 15" Live X 2-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ELX115 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 400 W RMS
1600 W Peak | | System Impedance | 8 Ohms (Nominal)
7.4 Ohms (Minimum) | | | | HF Driver | 1 x 1.5" / 39 mm Titanium Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 75 Hz to 18 kHz ±3 dB
50 Hz to 20 kHz ±10 dB | | Maximum SPL | 134 dB | | Coverage Angle | 90° H x 50° V | | Speaker Sensitivity | 95 dB | | | | Audio I/O | 2 x speakON NL4 | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket | | Handles | Yes | | Construction Material | Metal Grille, Plywood | | Dimensions | 27.9 x 17.0 x 15.0" / 708.0 x 432.0 x 382.0 mm | | Weight | 50.7 lb / 23 kg | | | | Package Weight | 59.0 lb | | Box Dimensions (LxWxH) | 27.87 x 17.01 x 15.04" |
