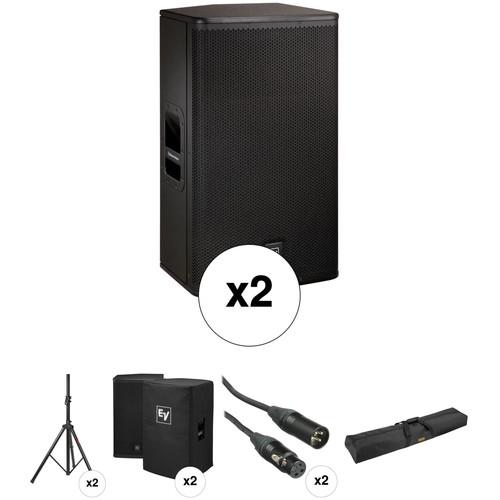

User Manual for Electro-Voice ELX115P Kit with 2x Speakers, Stands, Covers, Cables, and Bag Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX115P Kit with 2x Speakers,
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice ELX115P Kit with 2x Speakers, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description This B&H Kit combines two Electro-Voice ELX115P 15" Live X 2-Way Powered Loudspeakers with a pair of speaker stands, a pair of speaker covers, two 20' XLR cables, and a speaker stand bag to create the primary components of a stereo PA well suited for mobile DJs, bars, clubs, schools, houses of worship, public speaking events and more. Each ELX115P provides 1000W of Class-D amplification, which powers a 15" woofer and 1.5" titanium compression that combine to deliver 134 dB of SPL with a frequency response of 56 Hz to 18 kHz (±3 dB). The plywood cabinet can be placed vertically or horizontally for versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer.
Each steel speaker stand is built for durability and features a telescoping center column with five height adjustments ranging from 46 to 76". The pair of speaker covers are custom designed to protect each ELX115P from dust, dirt, and moisture, while the two black, 20' XLR cables are designed to be extremely quiet and flexible for the most demanding live sound and performance applications. The speaker stand bag is a heavy-duty 600 denier nylon bag designed to carry two speaker stands. - 2 x Electro-Voice ELX115P 15" Live X 2-Way Powered Loudspeaker The ELX115P 15" Live X 2-Way Powered Loudspeaker from Electro-Voice offers pro-quality audio for sound reinforcement, PA, and stage monitoring applications. The speaker has a 15" woofer and a 1.5" titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 1000W Class-D amplifier to provide a strong, distortion-free performance while keeping weight and heat to a minimum.
The plywood cabinet can be placed vertically or horizontally for terrific versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of XLR/TRS combo inputs, a stereo RCA input, and an XLR link output allow you to connect to virtually any sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation. - The 15" woofer and a 1.5" titanium compression driver provide crisp, natural audio with a wide frequency response
- The speaker has a 1000W Class-D amplifier to provide a strong, distortion-free performance, while keeping weight and heat to a minimum without needing fans
- The plywood cabinet can be placed vertically or horizontally for terrific versatility for PA or stage monitoring applications
- The standard 35mm pole socket lets you create stacks or mount the speaker on top of a subwoofer
- A pair of XLR/TRS combo inputs, a stereo RCA input, and an XLR link output allow you to connect to virtually any sound system
- The steel grille protects the driver elements and provides a sleek look
- Integrated carrying handles provide convenient transportation
UPC: 800549589512 - 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
- 2 x Electro-Voice Cover For ELX115 Loudspeaker The Cover For ELX115 Loudspeaker from Electro-Voice is a custom designed pull-over cover that protects your ELX115 15" 2-Way Full-Range Loudspeaker at all times from dust, dirt, and moisture, both on the road, and when it's in storage. UPC: 800549669580
- 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 - Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
- Durable Protection
- The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
- Reliable and Stylish
- Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
- Easy Transport
- Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
UPC: 847628002432 In the Box - 2 x ELX115P 15" Live X 2-Way Powered Loudspeaker wwxsraradteruedavsby
- Power Cord
- 3-Year Limited Warranty
- 2 x Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
- 2 x Cover For ELX115 Loudspeaker
- 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
- Auray - Speaker Stand Bag 51" Interior (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX115P Kit with 2x Speakers, Stands, Covers, Cables, and Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Electro-Voice ELX115P 15" Live X 2-Way Powered Loudspeaker
| | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.5" / 39 mm Titanium Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 56 Hz to 18 kHz ±3 dB
44 Hz to 20 kHz ±10 dB | | Maximum SPL | 134 dB | | Coverage Angle | 90° H x 50° V | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Input
1 x Stereo RCA Input
1 x XLR Thru/Output | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket | | Handles | Yes | | Construction Material | Metal Grille, Plywood | | Dimensions | 27.9 x 17.0 x 15.0" / 708.0 x 432.0 x 382.0 mm | | Weight | 53.6 lb / 24.3 kg | | | | Box Dimensions (LxWxH) | 31.0 x 18.0 x 17.5" | - 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" | - 2 x Electro-Voice Cover For ELX115 Loudspeaker
| | | Box Dimensions (LxWxH) | 18.5 x 13.8 x 2.6" | - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" | - Auray Speaker Stand Bag 51" Interior (Black)
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions (H × W × D) | 52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm | | Carrying/Transport Options | Dual carry handles with padded touch-fastener wrap | | Weight | 1.2 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 16.6 x 10.8 x 2.2" |
