User Manual for Electro-Voice ELX118P 18" Live X Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX118P 18" Live X Powered
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ELX118P 18" Live X Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

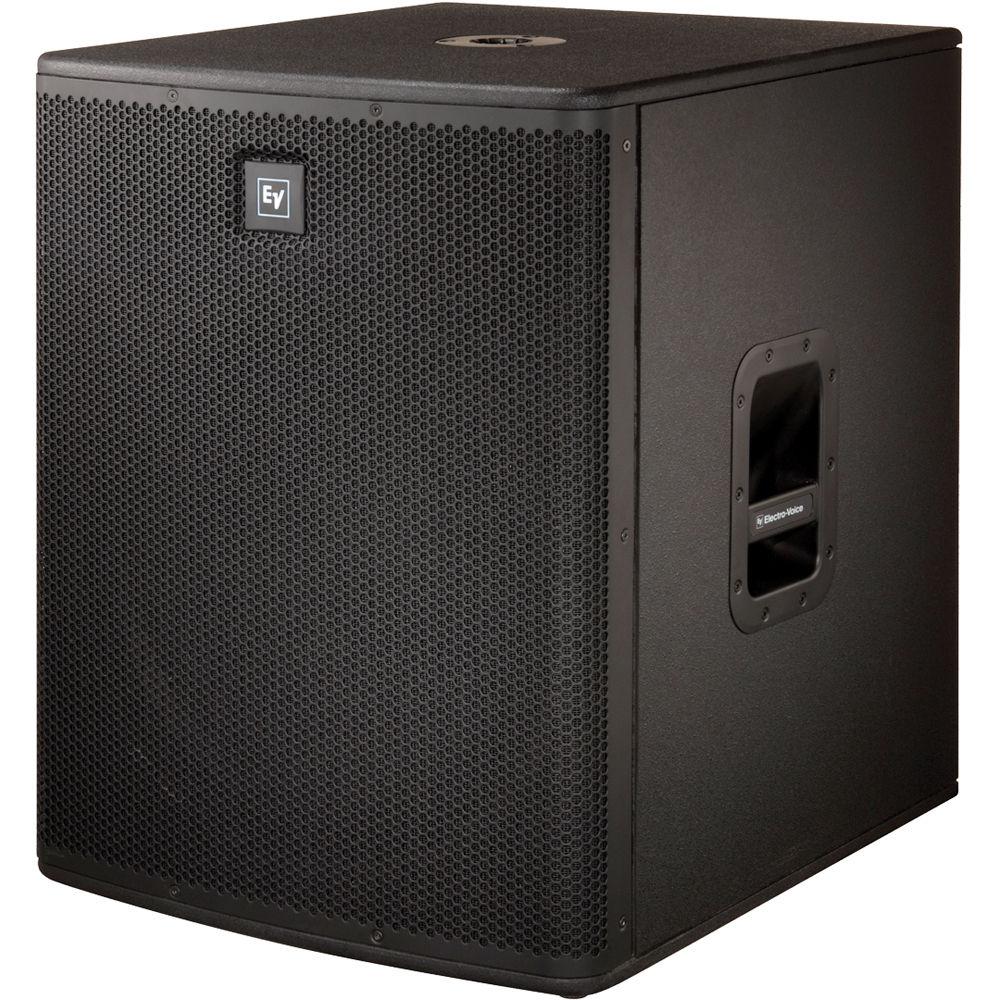

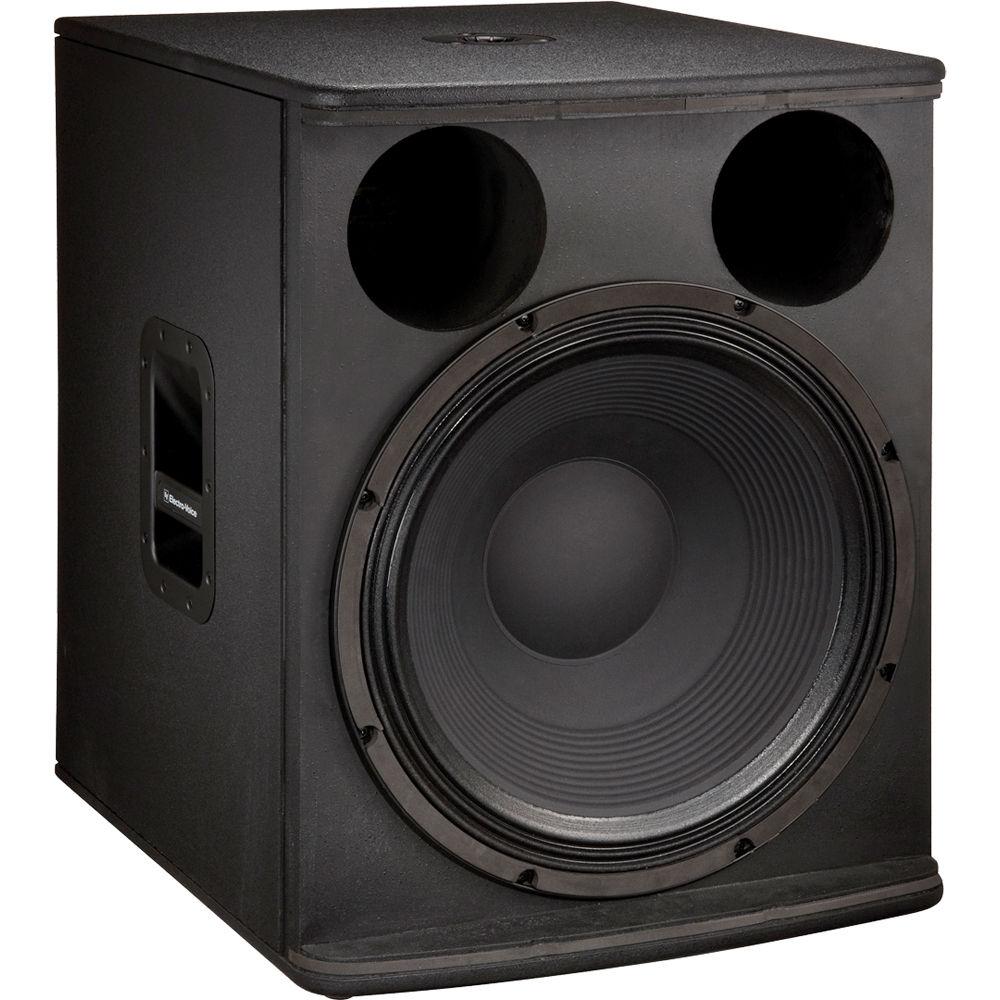

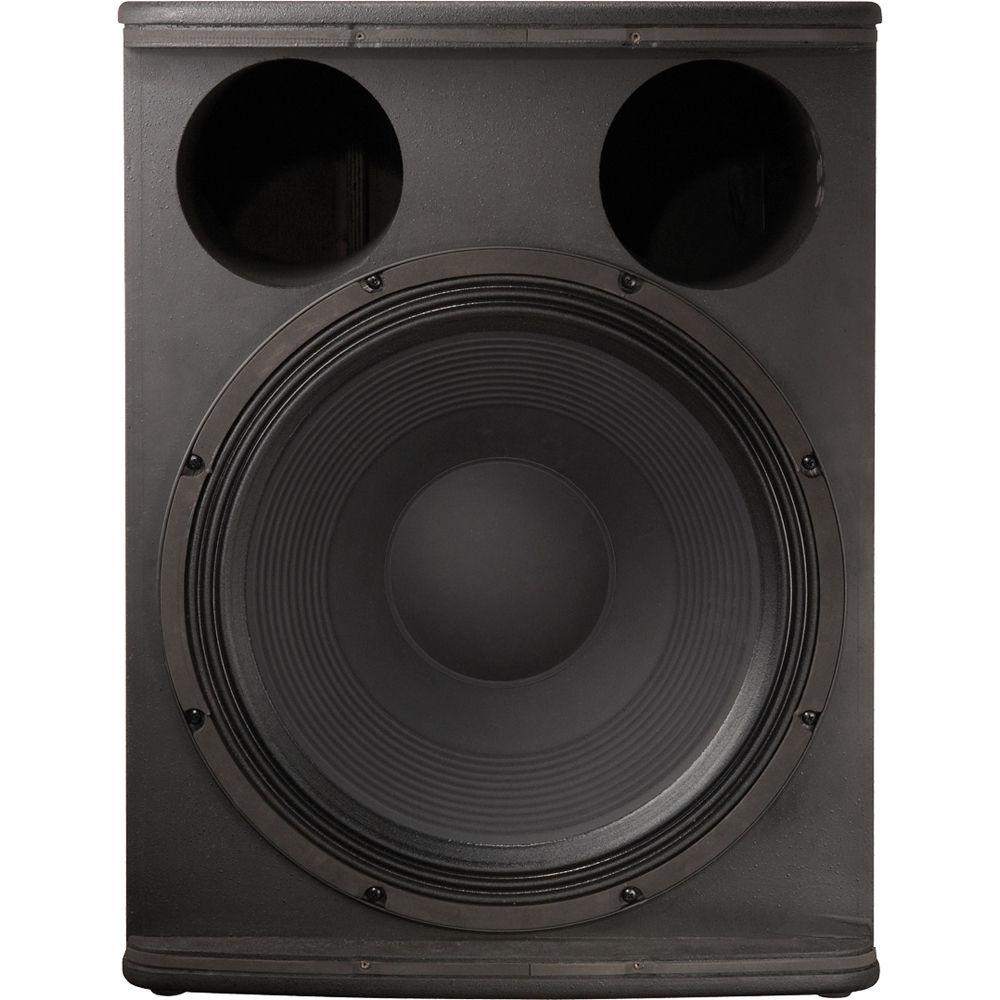

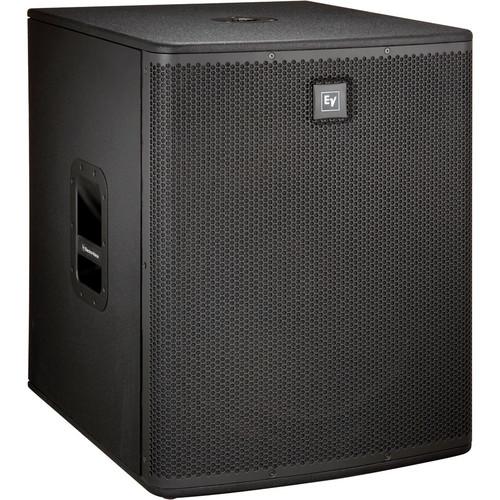

Product description The ELX118P 18" Live X Powered Subwoofer from Electro-Voice offers pro-quality bass reinforcement, and is an ideal companion for full-range loudspeakers such as the ELX112P and ELX115P. The sub has an 18" woofer to provide bass frequencies as low as 32Hz. A 700W Class-D amplifier provides a strong, distortion-free performance while keeping weight and heat to a minimum.
The plywood cabinet has a standard 35mm pole socket for creating stacks or mounting speakers on top. An XLR/TRS combo input and an XLR link output connector allow you to connect to virtually any professional sound system. The steel grille protects the driver and provides a sleek look. Integrated carrying handles provide convenient transportation. - The 18" woofer provides powerful bass at frequencies as low as 32Hz, ideal for use with full-range loudspeakers such as the ELX112P and ELX115P
- A 700W Class-D amplifier provides a strong, distortion-free performance, while keeping weight and heat to a minimum without the need for fans
- The plywood cabinet has a standard 35mm pole socket that lets you create stacks or mount a speaker on top of the subwoofer

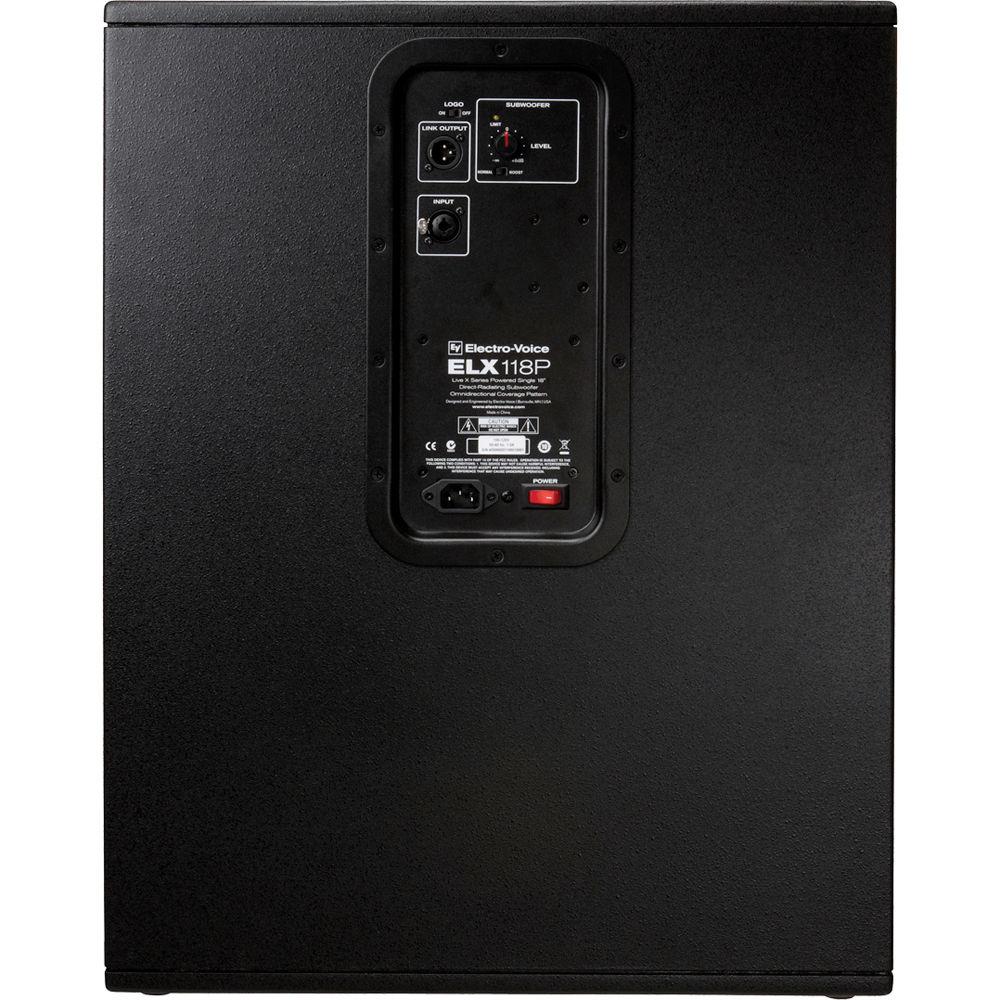

- An XLR/TRS combo input and an XLR link output connector allow you to connect to virtually any professional sound system

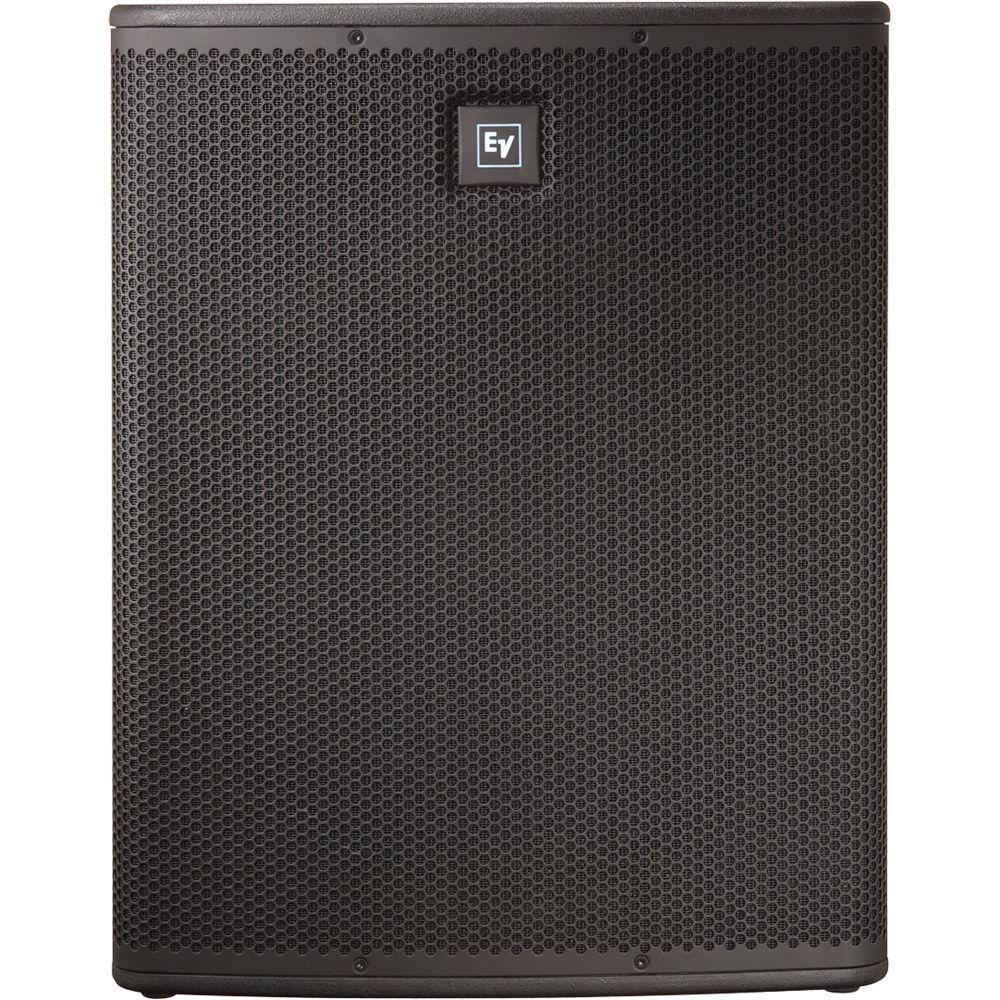

- The steel grille protects the driver and provides a sleek look
- Integrated carrying handles provide convenient transportation
UPC: 800549589529 In the Box Electro-Voice ELX118P 18" Live X Powered Subwoofer Power Cord 3-Year Limited Warranty User Manual PDF 2.2mbfrrxbtceqcfxstdwydvvxut Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX118P 18" Live X Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ELX118P Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 700 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 457 mm Woofer | | | | Frequency Response | 42 Hz to 100 Hz ±3 dB
32 Hz to 130 Hz ±10 dB | | Maximum SPL | 134 dB | | | | Audio I/O | 1 x Combo XLR / 1/4" TRS Input
1 x XLR Thru/Output | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket | | Handles | Yes | | Construction Material | Metal Grille, Plywood | | Dimensions | 26.0 x 20.0 x 22.6" / 661.0 x 507.0 x 574.0 mm | | Weight | 69.9 lb / 31.7 kg | | | | Package Weight | 89.2 lb | | Box Dimensions (LxWxH) | 26.02 x 22.6 x 19.96" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
