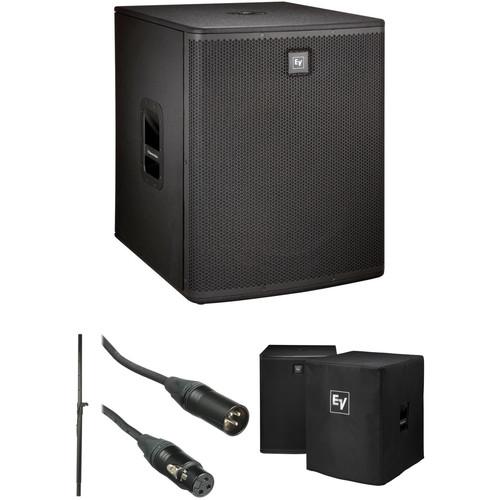

User Manual for Electro-Voice ELX118P 18" Subwoofer Kit with Speaker Pole, Cable, and Cover Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX118P 18" Subwoofer Kit with
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice ELX118P 18" Subwoofer Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Electro-Voice ELX118P 18" Live X Powered Subwoofer with an adjustable speaker mounting pole, 10' XLR cable, and a case to provide low-frequency extension to any sound system and is well suited to bars, clubs, schools, houses of worship, and mobile DJ applications. The ELX118P features a 700W Class-D amplifier to power the 18" woofer and provide an SPL of 134 dB at frequencies as low as 32 Hz.The speaker mounting pole attaches to the top of the ELX118P subwoofer, allowing the addition of a small full range speaker, which can be adjusted for height from 36 to 60". The black, 10' XLR-M to XLR-F cable is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications, while the cover is custom designed to pull-over and protect your ELX118P subwoofer from dust, dirt, and moisture. - Electro-Voice ELX118P 18" Live X Powered Subwoofer The ELX118P 18" Live X Powered Subwoofer from Electro-Voice offers pro-quality bass reinforcement, and is an ideal companion for full-range loudspeakers such as the ELX112P and ELX115P. The sub has an 18" woofer to provide bass frequencies as low as 32Hz. A 700W Class-D amplifier provides a strong, distortion-free performance while keeping weight and heat to a minimum.
The plywood cabinet has a standard 35mm pole socket for creating stacks or mounting speakers on top. An XLR/TRS combo input and an XLR link output connector allow you to connect to virtually any professional sound system. The steel grille protects the driver and provides a sleek look. Integrated carrying handles provide convenient transportation. - The 18" woofer provides powerful bass at frequencies as low as 32Hz, ideal for use with full-range loudspeakers such as the ELX112P and ELX115P
- A 700W Class-D amplifier provides a strong, distortion-free performance, while keeping weight and heat to a minimum without the need for fans
- The plywood cabinet has a standard 35mm pole socket that lets you create stacks or mount a speaker on top of the subwoofer
- An XLR/TRS combo input and an XLR link output connector allow you to connect to virtually any professional sound system
- The steel grille protects the driver and provides a sleek look
- Integrated carrying handles provide convenient transportation
UPC: 800549589529 - Electro-Voice ASP-1 Adjustable Mounting Pole for Select Speakers & Subwoofers (Blk) The ASP-1 from Electro Voice is an accessory pole that attaches to the top of the SB122 bass module, allowing the addition of a small full range speaker such as the Zx1 or Sx80 for a more complete system. It can be adjusted for height from 36 to 60" so that you can position it right where you need it.
- Height adjusts from 36-60"
- Fits most speakers and subwoofers with 1-3/8" stand cups
- Supports speakers and subwoofers up to 80 lbs
- Durable, powder-coat finish
UPC: 701001043217 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558274 - Electro-Voice Cover For ELX118 Subwoofer The Cover For ELX118 Subwoofer from Electro-Voice is a custom designed pull-over cover that protects your ELX118 18" Subwoofer at all times from dust, dirt, and moisture, both on the road, and when it's in storage. UPC: 800549669597
In the Box - ELX118P 18" Live X Powered Subwoofer wwxsraradteruedavsby
- Power Cord
- 3-Year Limited Warranty
- ASP-1 Adjustable Mounting Pole for Select Speakers & Subwoofers (Blk)
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
- Cover For ELX118 Subwoofer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX118P 18" Subwoofer Kit with Speaker Pole, Cable, and Cover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Electro-Voice ELX118P 18" Live X Powered Subwoofer
| | | Configuration | Active Subwoofer | | Total Power Capacity | 700 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 457 mm Woofer | | | | Frequency Response | 42 Hz to 100 Hz ±3 dB
32 Hz to 130 Hz ±10 dB | | Maximum SPL | 134 dB | | | | Audio I/O | 1 x Combo XLR / 1/4" TRS Input
1 x XLR Thru/Output | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket | | Handles | Yes | | Construction Material | Metal Grille, Plywood | | Dimensions | 26.0 x 20.0 x 22.6" / 661.0 x 507.0 x 574.0 mm | | Weight | 69.9 lb / 31.7 kg | | | | Box Dimensions (LxWxH) | 26.02 x 22.6 x 19.96" | - Electro-Voice ASP-1 Adjustable Mounting Pole for Select Speakers & Subwoofers (Blk)
| Type | Subwoofer Pole | | Load Capacity | 80 lb / 36.3 kg | | Height Adjustment Range | 36 to 60" / 91.4 to 152.4 cm | | | | Box Dimensions (LxWxH) | 31.5 x 4.0 x 4.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 10' / 3 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 5.7 x 2.2 x 1.0" | - Electro-Voice Cover For ELX118 Subwoofer
| | | Box Dimensions (LxWxH) | 26.1 x 20.0 x 1.2" |
