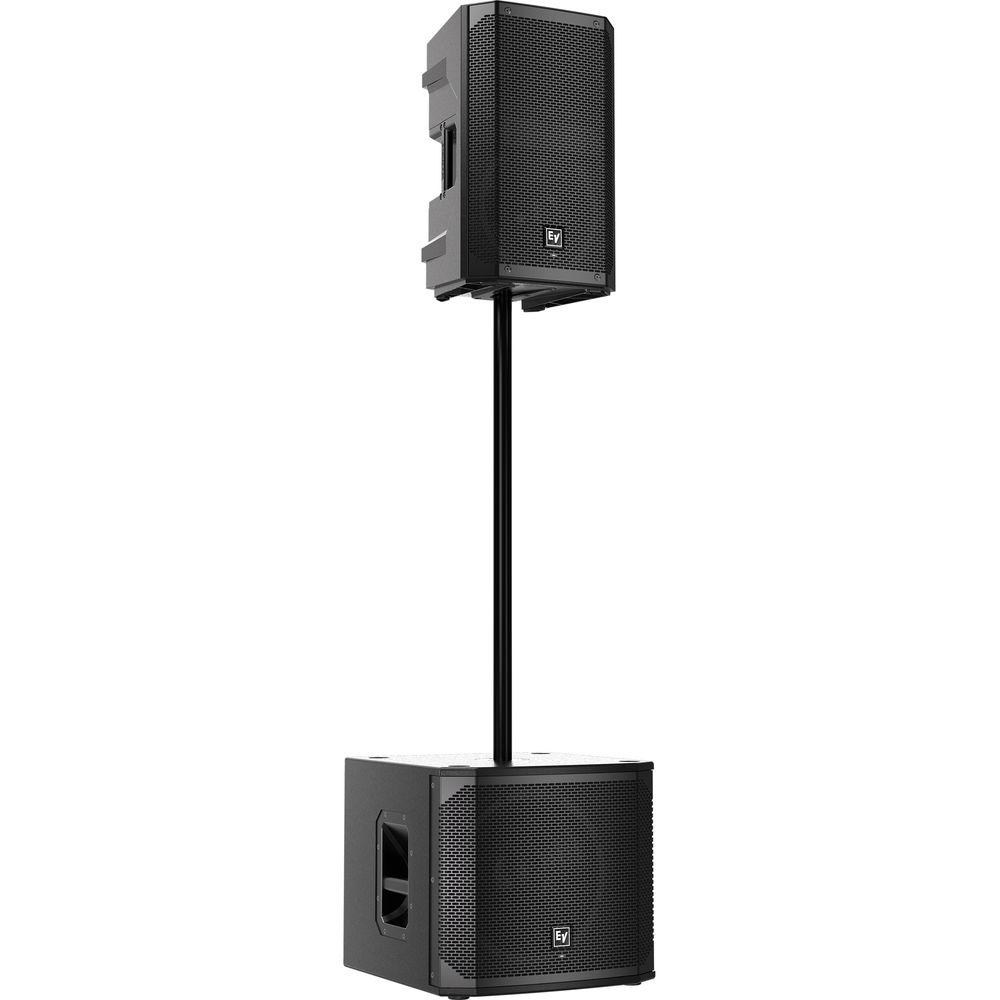

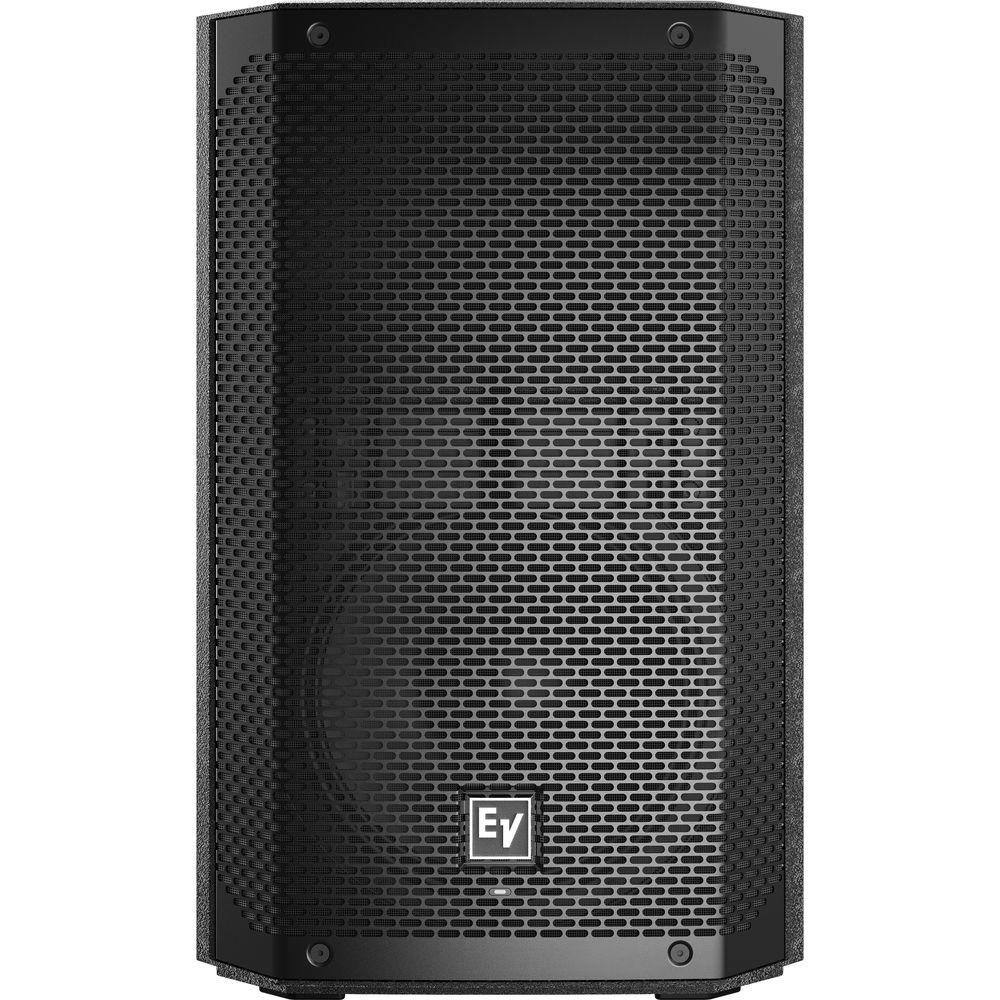

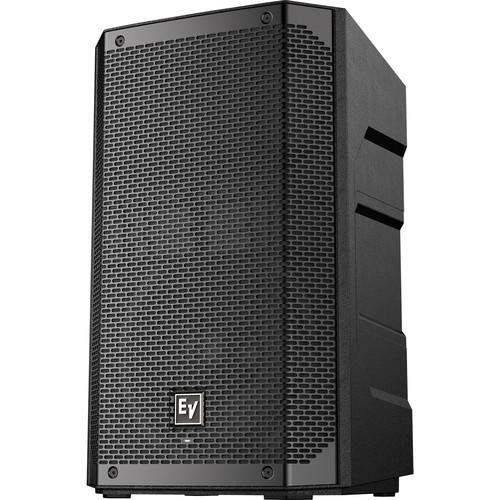

Product description The black Electro-Voice ELX200-10 is a 10" 2-way 1200W passive speaker designed to provide reliable, full-range frequency reproduction and flexible installation for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It has a 1200W power rating and features a 10" woofer and a 1" titanium high-frequency compression driver, yielding a frequency range of 49 Hz to 22 kHz (-10 dB) and a frequency response of 65 Hz to 20 kHz (-3 dB).Connect the output of your amplifier to either of the two NL4 speakON input jacks. Being passive, the ELX200-10 requires no power source; only the audio connection is necessary. The polypropylene enclosure and steel grille ensure a combination of durability and light weight. Three carry handles allow easy loading and unloading at gigs. The loudspeaker can be placed vertically or horizontally and integrated pole mounts and three M10 suspension points enable versatile mounting and orientation. - 10" woofer, 1" titanium high-frequency compression driver
- Handles up to 1200W peak (300W continuous)
- 49 Hz to 22 kHz frequency range (-10 dB), 65 Hz to 20 kHz frequency response (-3 dB)
- Durable polypropylene enclosure
- 90° horizontal coverage, 60° vertical coverage
- Integrated handles and three M10 suspension points
UPC: 800549826846 In the Box Electro-Voice ELX200-10 10" 2-Way 1200W Passive Loudspeaker (Black, Single) Limited 5-Year Warranty User Manual PDF 7.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX200-10 10" 2-Way 1200W Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ELX200-10 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 1200 W Peak
300 W RMS | | System Impedance | 8 Ohms (Nominal)
7.2 Ohms (Minimum) | | | | HF Driver | 1 x 1" / 51 mm Horn-Loaded Titanium Compression Driver | | LF Driver | 1 x 10" / 25.4 cm Woofer | | | | Frequency Range | 49 Hz to 22 kHz -10 dB | | Frequency Response | 65 Hz to 20 kHz -3 dB | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 60° V | | Speaker Sensitivity | 90 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Mounting | 3 x M10 | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 20.9 x 13.0 x 12.6" / 531.0 x 330.0 x 319.0 mm | | Weight | 29.6 lb / 13.4 kg | | | | Package Weight | 34.2 lb | | Box Dimensions (LxWxH) | 23.6 x 15.9 x 15.7" |
