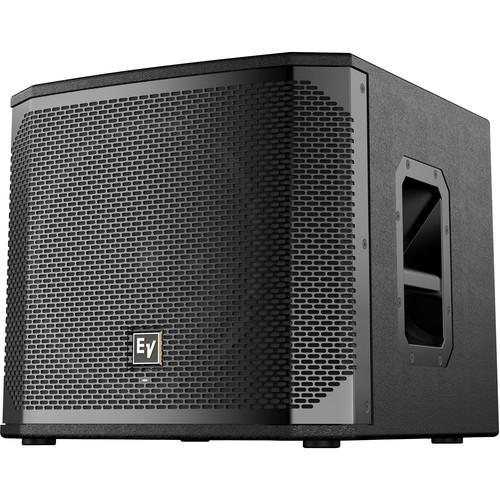

User Manual for Electro-Voice ELX200-12S 12" 1600W Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX200-12S 12" 1600W Passive Subwoofer
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice ELX200-12S 12" 1600W Passive Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The black Electro-Voice ELX200-12S is a 12" 1600W passive subwoofer designed to provide dependable low-frequency reinforcement, easy installation, and convenient control for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It is rated to handle up to 1600W of power and features a 12” woofer capable of producing a 33 to 300 Hz frequency range (-10 dB) and a 42 to 220 Hz frequency response (-3 dB). Being passive, the ELX200-12S does not require a power source. Simply connect the output of your power amplifier to either of the two NL4 speakON input jacks. The plywood enclosure and steel grille ensure durability and stability. Built-in carry handles allow easy loading and unloading at gigs. Mount a full-range speaker above the subwoofer via the top-panel M20 threaded hole. - 33 to 300 Hz frequency range (-10 dB), 42 to 220 Hz frequency response (-3 dB)
- Handles up to 1600W peak power (400W continuous)
- Tuned 15mm-thick wood enclosure
- Two NL4 speakON connectors
- M20 thread for pole-mounting a speaker on top of subwoofer
UPC: 800549826907 In the Box Electro-Voice ELX200-12S 12" 1600W Passive Subwoofer (Black, Single) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX200-12S 12" 1600W Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ELX200-12S Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 1600 W Peak
400 W RMS | | System Impedance | 8 Ohms (Nominal)
6.9 Ohms (Minimum) | | | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 33 Hz to 300 Hz -10 dB | | Frequency Response | 42 Hz to 220 Hz -3 dB | | Maximum SPL | 129 dB | | Speaker Sensitivity | 93 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Mounting | 1 x M20 (Top) | | Construction Material | Metal Grille, Plywood | | Dimensions | 15.6 x 17.5 x 18.0" / 397.0 x 445.0 x 457.0 mm | | Weight | 38 lb / 17.2 kg |
