User Manual for Electro-Voice ELX200-12SP-US 12" 1200W Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX200-12SP-US 12" 1200W Powered Subwoofer
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ELX200-12SP-US 12" 1200W Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

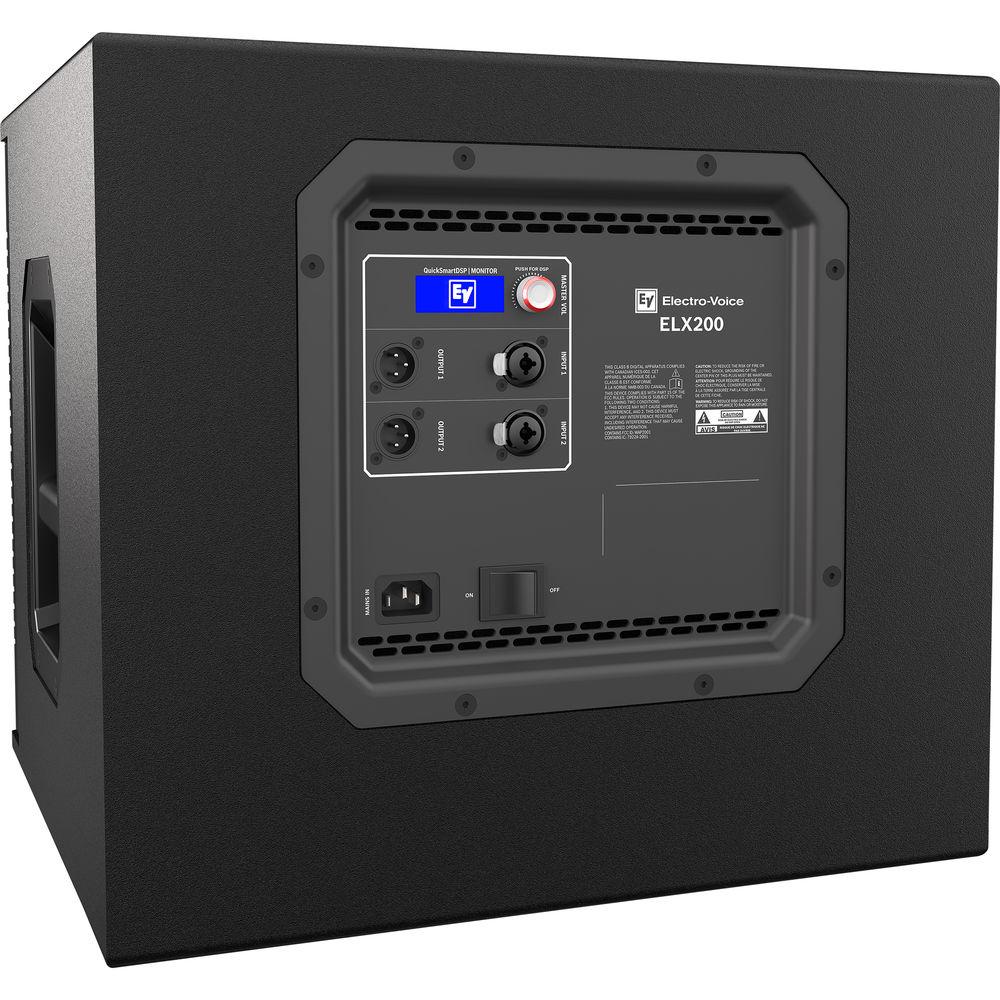

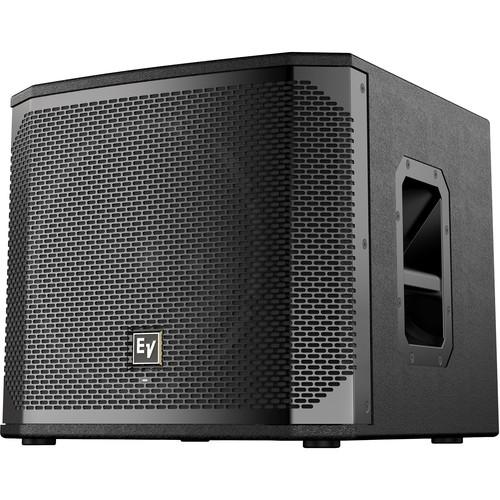

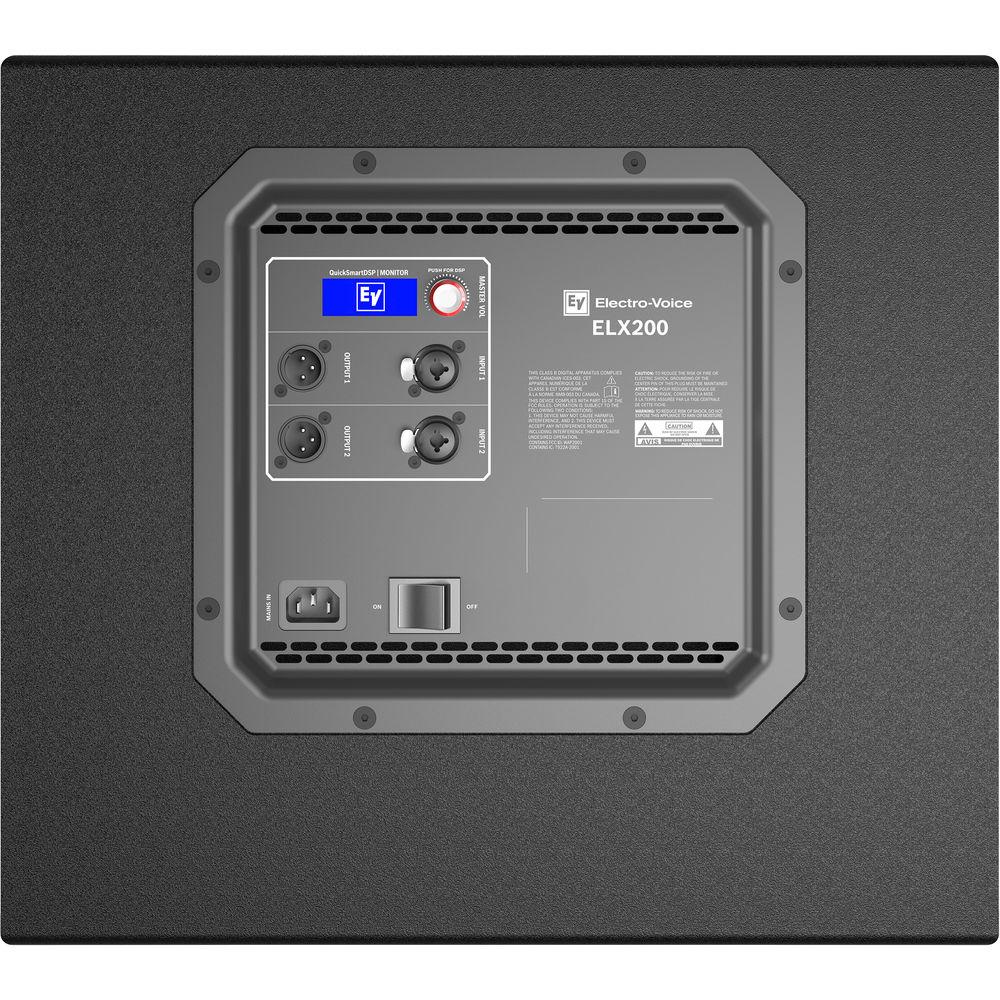

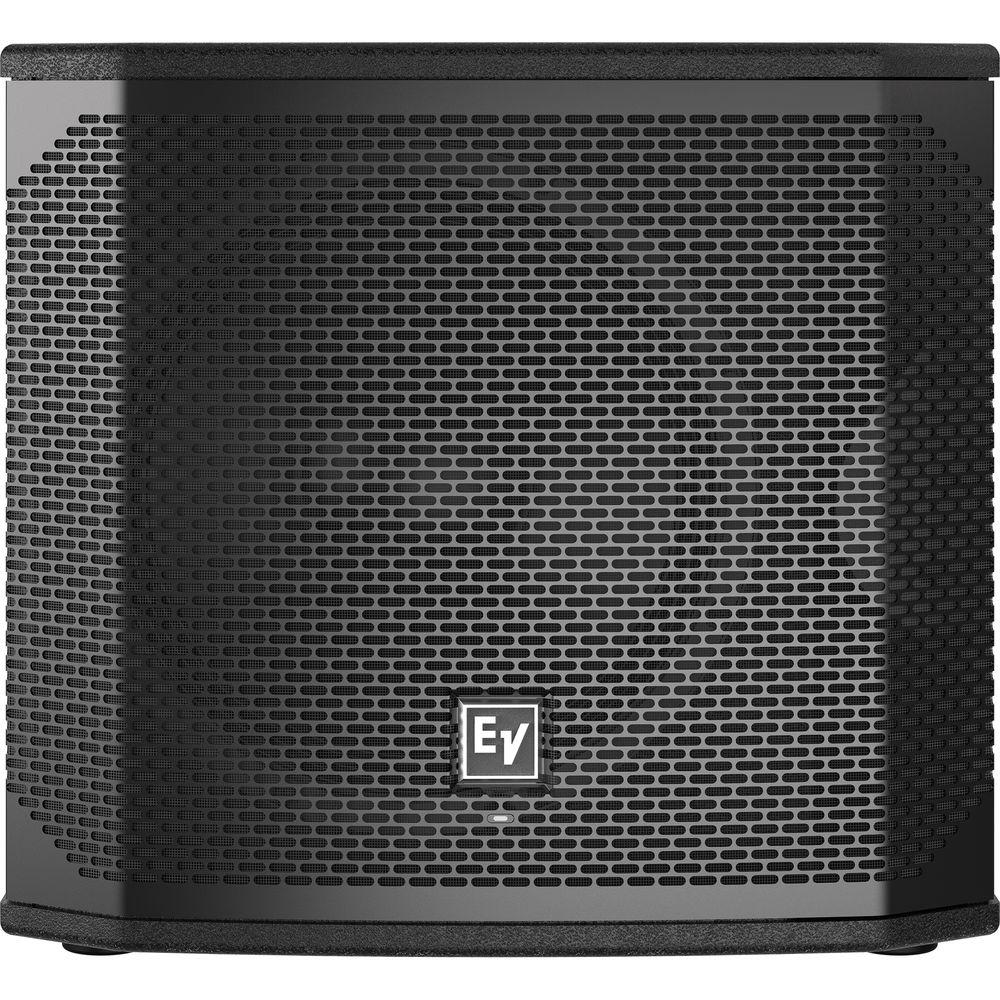

Product description The black Electro-Voice ELX200-12SP-US is a 12” 1200W powered subwoofer designed to provide dependable low-frequency amplification, easy installation, and convenient control for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It features 1200W of Class-D amplification, which drives a 12” woofer to produce a frequency range of 41 to 165 Hz.Route a balanced source such as a stereo mixer output via two XLR-1/4” combo jack inputs, then utilize the two XLR Link outputs to connect to full-range speakers. A rear-panel knob and LCD allow access to master volume and the on-board DSP functions, which include three easy-setup presets, five user-programmable presets, adjustable low-pass frequency, and metering. Adjust parameters via the single-knob interface and LCD, or control the subwoofer via Bluetooth.Its plywood enclosure and steel grille ensure durability and stability. Built-in carry handles allow easy loading and unloading at gigs. Mount a full-range speaker above the subwoofer via the top-panel M20 threaded hole. The ELX200-12SP-US ships with a power cable. - 41 to 165 Hz frequency range
- 1200W of Class-D amplification
- 2 x XLR-1/4" combo jack inputs
- Adjustable low-pass frequency at 80/100/120/150 Hz
- On-board DSP and master volume control
- Three preset modes and five user-programmable presets
- Single-knob user interface and LCD
- Supports configuration via Bluetooth

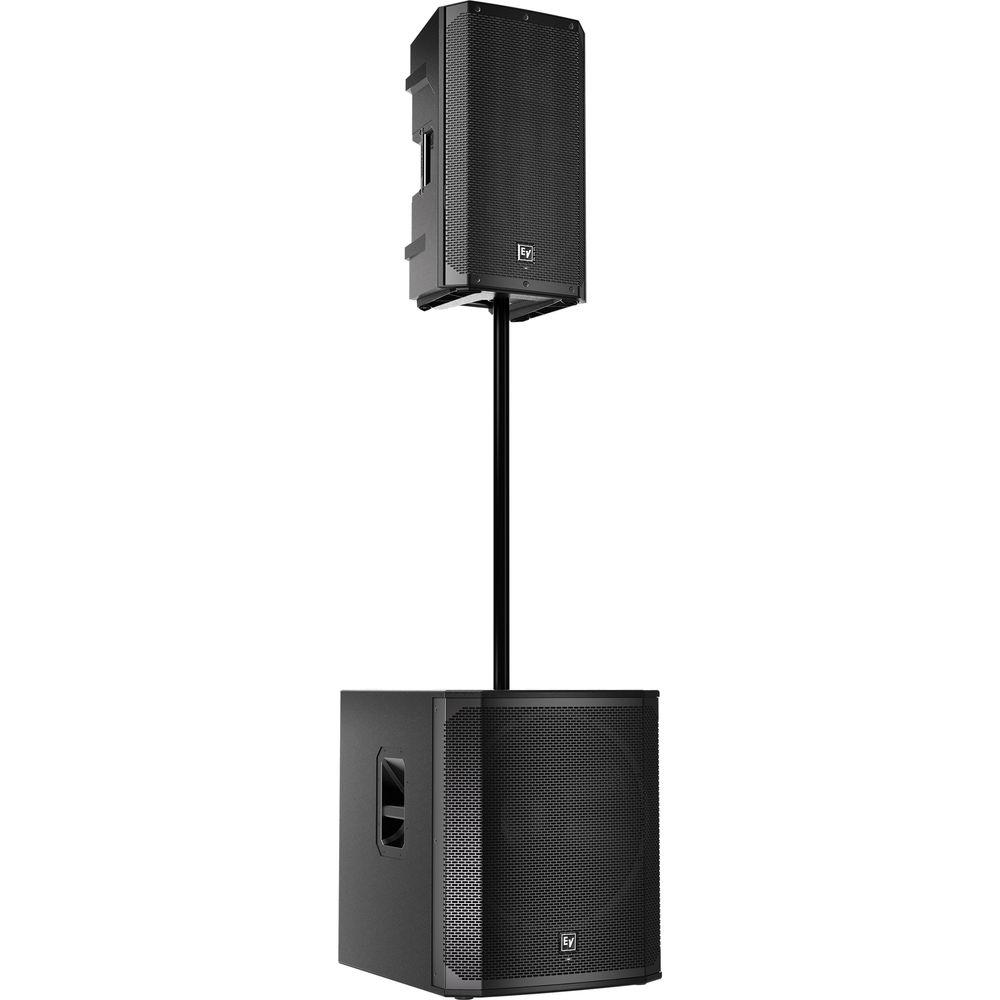

- M20 thread for pole-mounting a speaker on top of subwoofer
UPC: 800549826785 In the Box Electro-Voice ELX200-12SP-US 12" 1200W Powered Subwoofer (Black, Single) Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX200-12SP-US 12" 1200W Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ELX200-12SP-US Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1200 W | | | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 41 Hz to 165 Hz -10 dB | | Frequency Response | 49 Hz to 135 Hz -3 dB | | Maximum SPL | 129 dB | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
2 x XLR 3-Pin Output | | | | Filters | Low-Pass:
80 Hz to 150 Hz 80 / 100 / 120 / 150 Hz | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 1.8 A | | | | Mounting | 1 x M20 (Top) | | Construction Material | Metal Grille, Plywood | | Dimensions | 15.8 x 17.5 x 18.0" / 401.3 x 444.5 x 457.2 mm | | Weight | 42.2 lb / 19.1 kg | | | | Package Weight | 52.8 lb | | Box Dimensions (LxWxH) | 20.5 x 19.5 x 18.2" |
