User Manual for Electro-Voice ELX200-15P-US 15" 2-Way 1200W Powered Speaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ELX200-15P-US 15" 2-Way 1200W Powered
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ELX200-15P-US 15" 2-Way 1200W Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

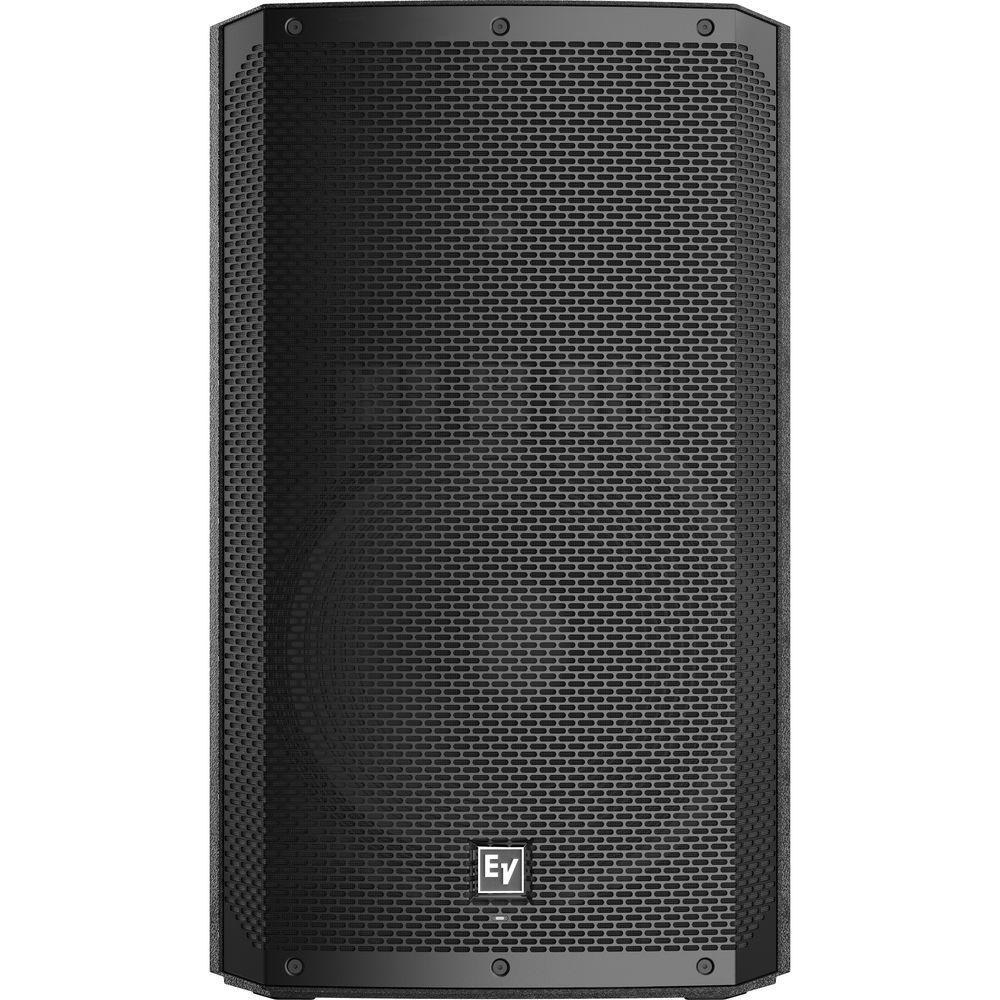

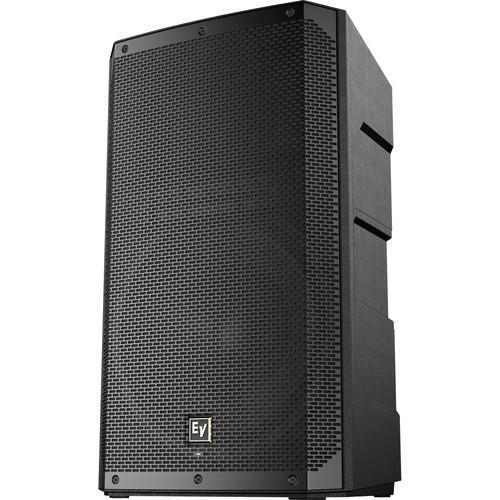

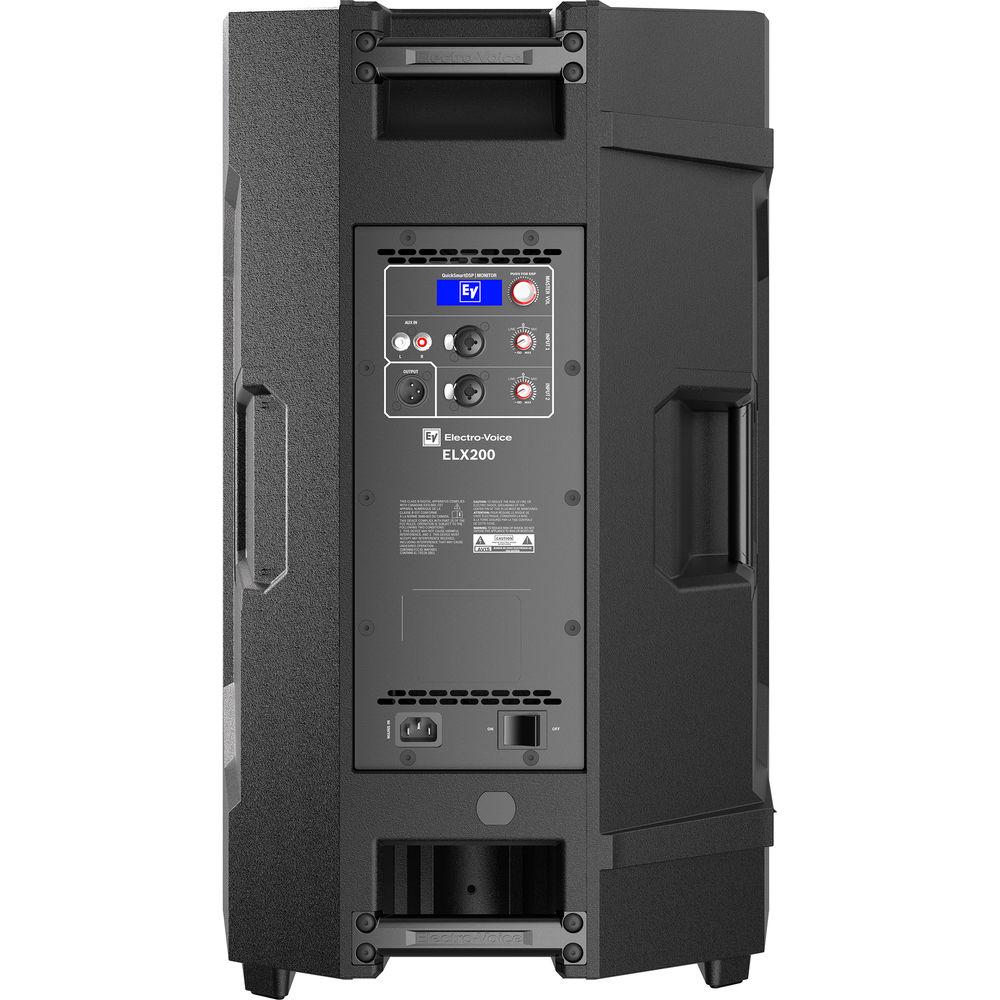

Product description The black Electro-Voice ELX200-15P-US is a 15" 2-way 1200W powered speaker designed to provide dependable amplification, flexible installation, and convenient control for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It features 1200W of Class-D amplification, which drives a 15” woofer and a 1” titanium high-frequency compression driver, yielding a frequency range of 48 Hz to 19 kHz.Connect balanced sources via two XLR-1/4” combo jack inputs; route an unbalanced stereo signal to the two RCA coaxial input jacks. Rear-panel knobs are provided for input levels and master volume. Onboard DSP offers four easy-setup presets, five user-programmable presets, 3-band EQ, and metering. Adjust parameters via the single-knob interface and LCD, or control the speaker via Bluetooth.Its polypropylene enclosure and steel grille ensure a combination of durability and light weight. Three carry handles allow easy loading and unloading at gigs. Integrated pole mounts and three M10 suspension points enable versatile mounting and orientation. The ELX200-15P-US ships with a power cable. - 15" woofer, 1" titanium high-frequency compression driver
- 48 Hz to 19 kHz frequency range
- 1200W of Class-D power amplification
- SST (Signal Synchronized Transducer) waveguide contributes to 90° x 60° coverage
- Two XLR-1/4" combo jack inputs and a stereo RCA coaxial input
- Input level controls and master volume
- Onboard DSP functions include four easy-setup presets, five user-programmable presets, 3-band EQ, sub/top system-match crossovers, and metering
- Single-knob user interface with LCD
- Supports wireless control and monitoring via Bluetooth
- Polypropylene enclosure with steel grille

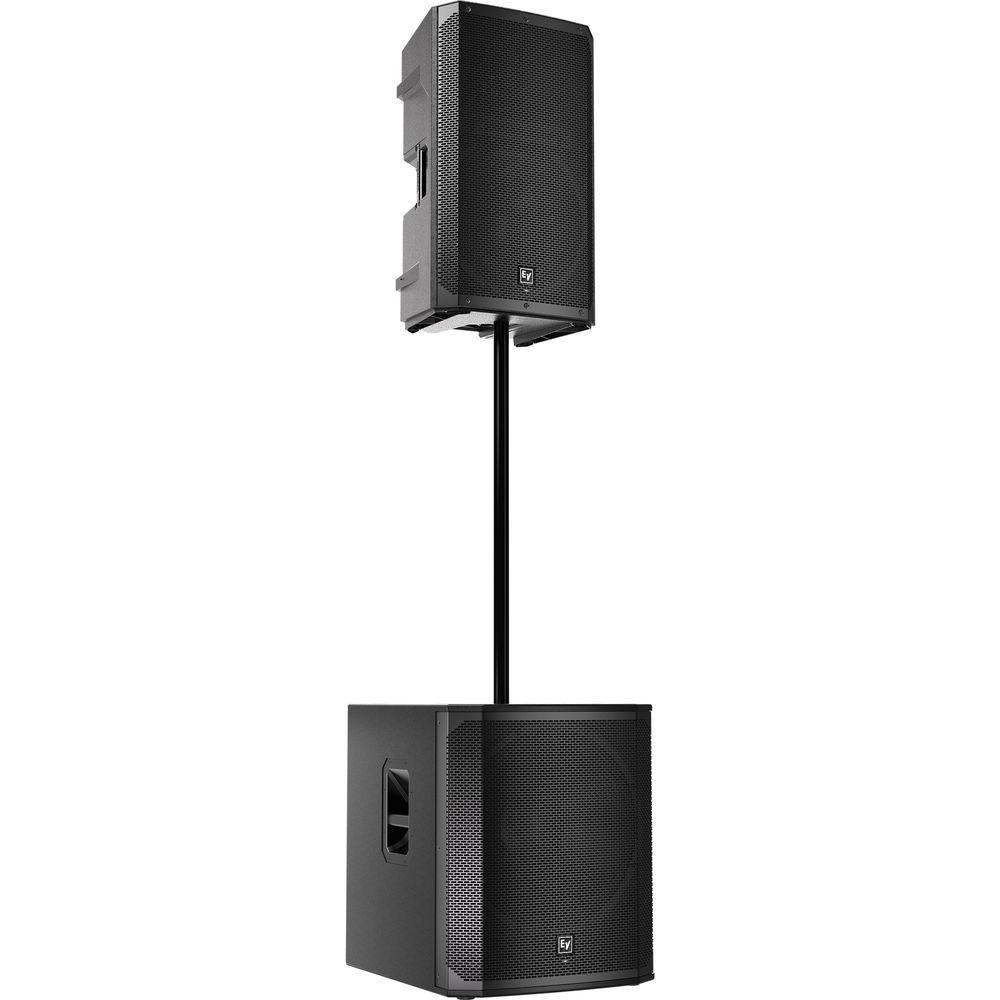

- Integrated carry handles, pole mounts, and suspension points
UPC: 800549826716 In the Box Electro-Voice ELX200-15P-US 15" 2-Way 1200W Powered Speaker (Black, Single) Power Cable Limited 3-Year Warranty User Manual PDF 9.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ELX200-15P-US 15" 2-Way 1200W Powered Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ELX200-15P-US Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1200 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 51 mm Horn-Loaded Titanium Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Range | 48 Hz to 19 kHz -10 dB | | Frequency Response | 55 Hz to 16 kHz -3 dB | | Maximum SPL | 132 dB | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x Stereo RCA Input
1 x XLR 3-Pin Output | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 1.8 A | | | | Mounting | 3 x M10 | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 27.9 x 16.8 x 15.5" / 708.7 x 426.7 x 393.7 mm | | Weight | 41.7 lb / 18.9 kg | | | | Package Weight | 49.65 lb | | Box Dimensions (LxWxH) | 29.5 x 20.0 x 17.5" |
