Product description

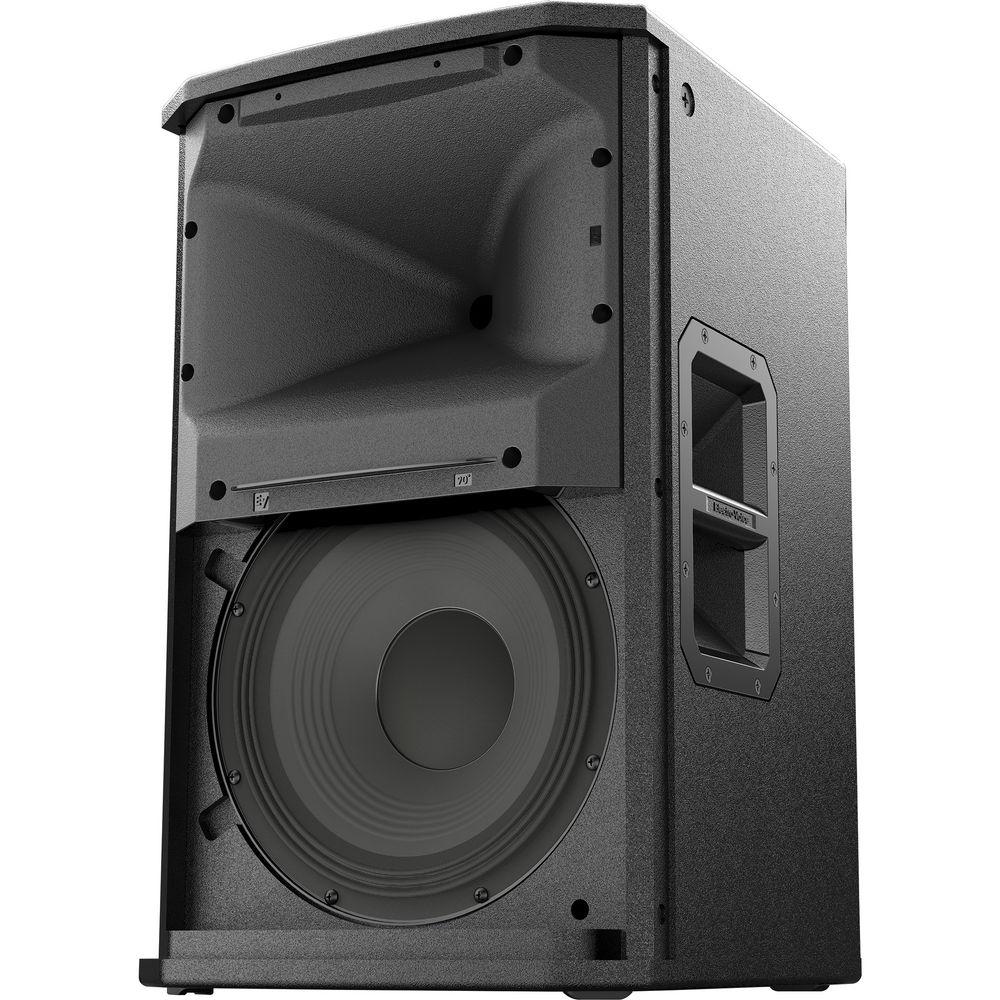

Signal Synchronized Transducers (SST) Waveguide Design
• The waveguide is placed forward in the enclosure to help physically time-align the LF and HF transducers, minimizing the need for latency correction via DSP
• Placing the port under the waveguide positions it in its ideal acoustic location in the enclosure without spacing the woofer and driver apart. The port location minimizes distortion and standing waves inside the loudspeaker
• All waveguides are optimized using simulation software and proprietary algorithms for precise control and lowest distortion

High-Sensitivity, Low-Distortion Transducer Design
• All ETX woofers use Faraday rings for better vocal reproduction
• The woofers not only have high power handling but also feature a robust mechanical design to ensure long-term reliability
• EV focuses on engineering transducers with linear frequency response, minimizing the need for additional equalization

Components and Testing
• All ETX components are designed from the ground up by Electro-Voice. No off-the- shelf components are used
• The handles, pole cups and amplifier chassis are die-cast aluminum, not plastic
• 18-mm, 13-ply birch plywood with EVCoat is used throughout the ETX product line
• In addition to industry-standard pink noise abuse tests, all models must survive EV's proprietary 1,000-hour torture test that uses real-world signals driven beyond full output

Processing and Control
• System DSP presets support quick and easy setup via selections for type of use, crossover frequencies and top/sub combinations
• ETX employs the same proprietary PAL and TEMP limiters developed for Electro Voice's concert loudspeakers
• Boundary compensation filters are included so that an ETX loudspeaker sounds the same whether it is used as a floor monitor, on a tripod or suspended from a ceiling
• ETX offers user-adjustable features including delay out to several hundred feet, three-band parametric equalization, polarity and multiple high-pass crossover points
• The Class-D design of the amplifier is designed to be efficient and features blower-controlled thermal management, allowing it to work in hot environments. The fan is of a quiet design and does not turn on under normal circumstances
• Lockout mode helps prevent casual users from changing settings

LCD Interface
• Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure
