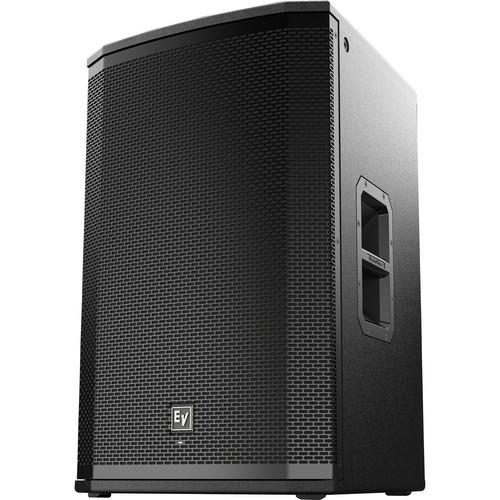

User Manual for Electro-Voice ETX-15P 15" Portable Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ETX-15P 15" Portable Powered Loudspeaker
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ETX-15P 15" Portable Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

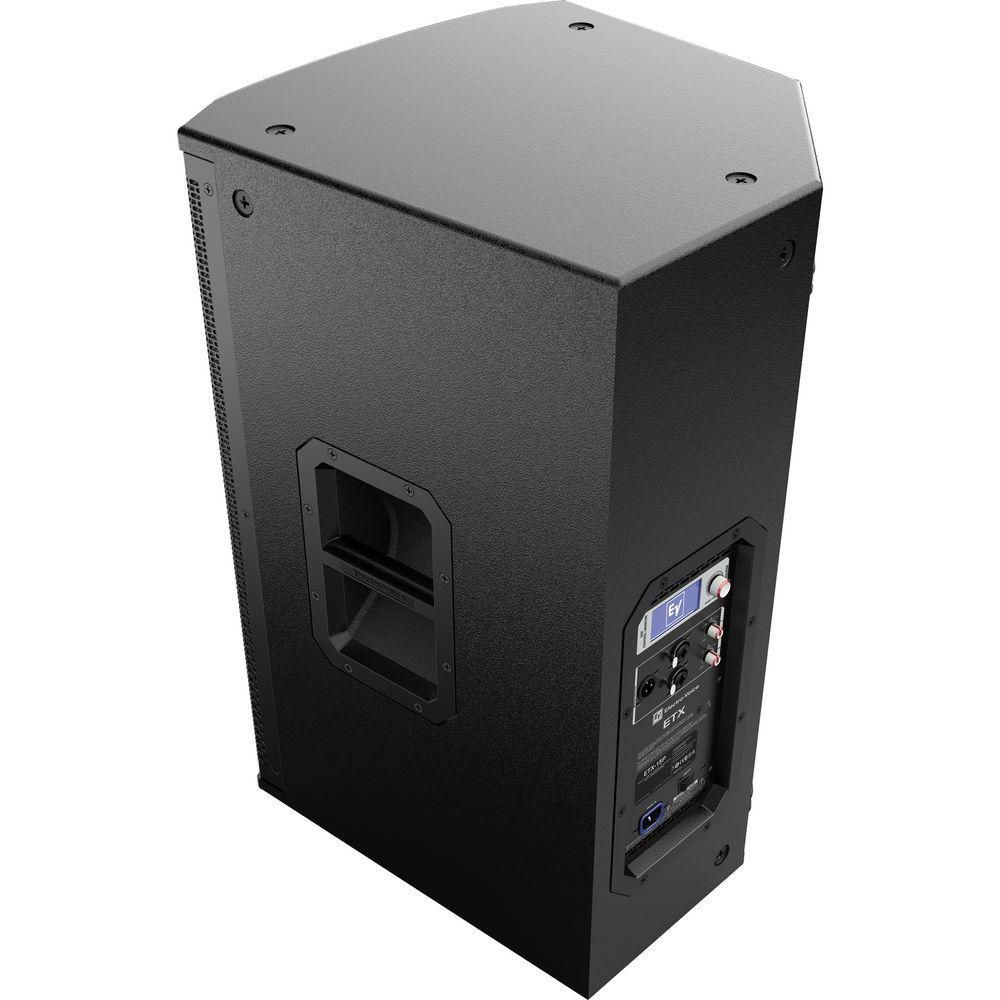

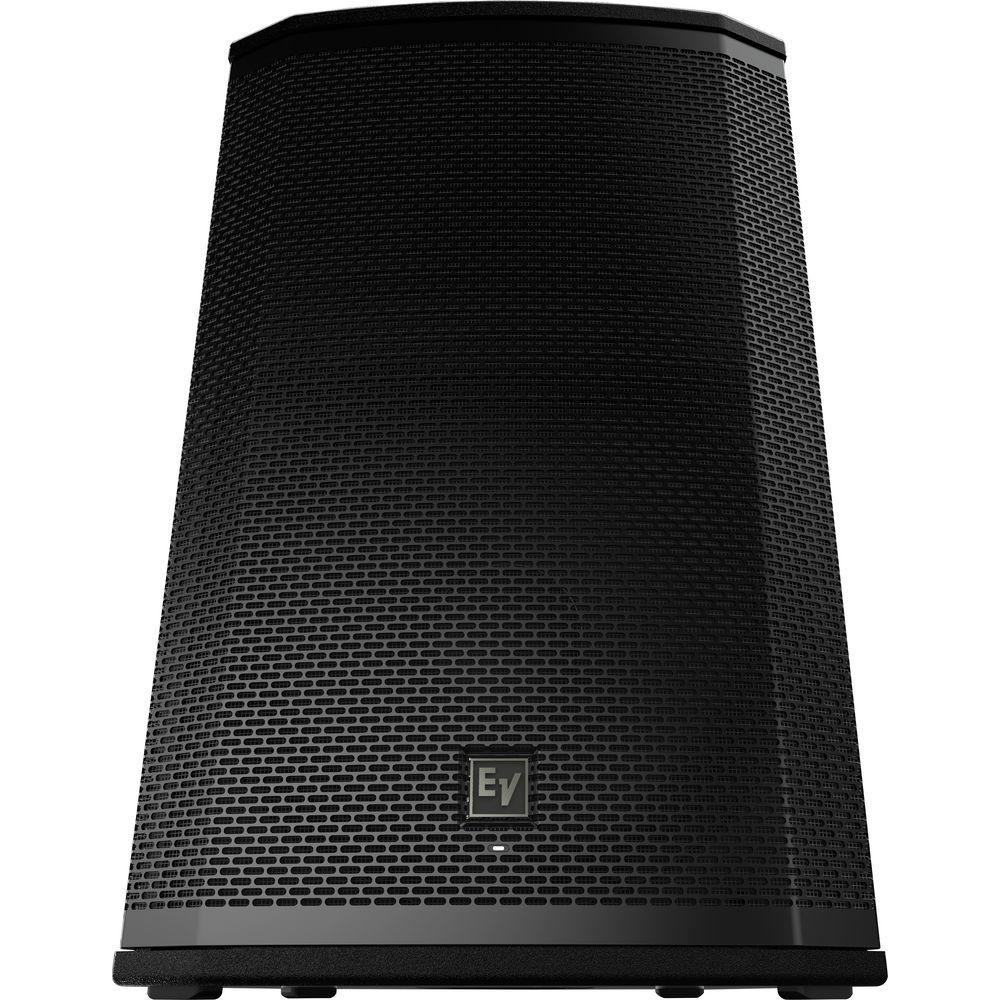

Product description The ETX-15P 15" Portable Powered Loudspeaker from Electro-Voice is a portable powered Class-D loudspeaker that can be used as a floor monitor, mounted on a tripod, or suspended from the ceiling. It is capable of up to 2,000-watts of output for a peak SPL rating of up to 135 dB and features a 15-inch woofer and a 1.25-inch titanium high-frequency driver. The speaker's integrated DSP can be controlled via the rear panel LCD and provides EQ, boundary compensation, a limiting function, delay, and more.

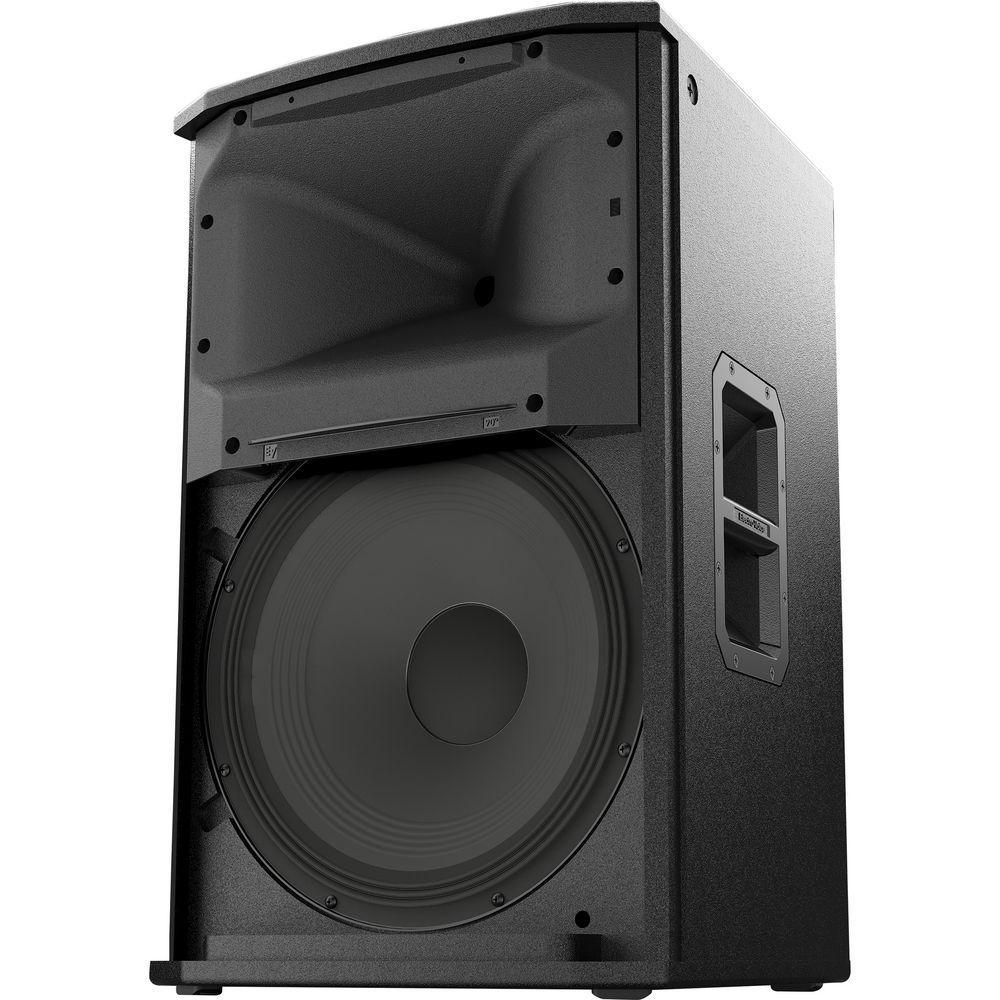

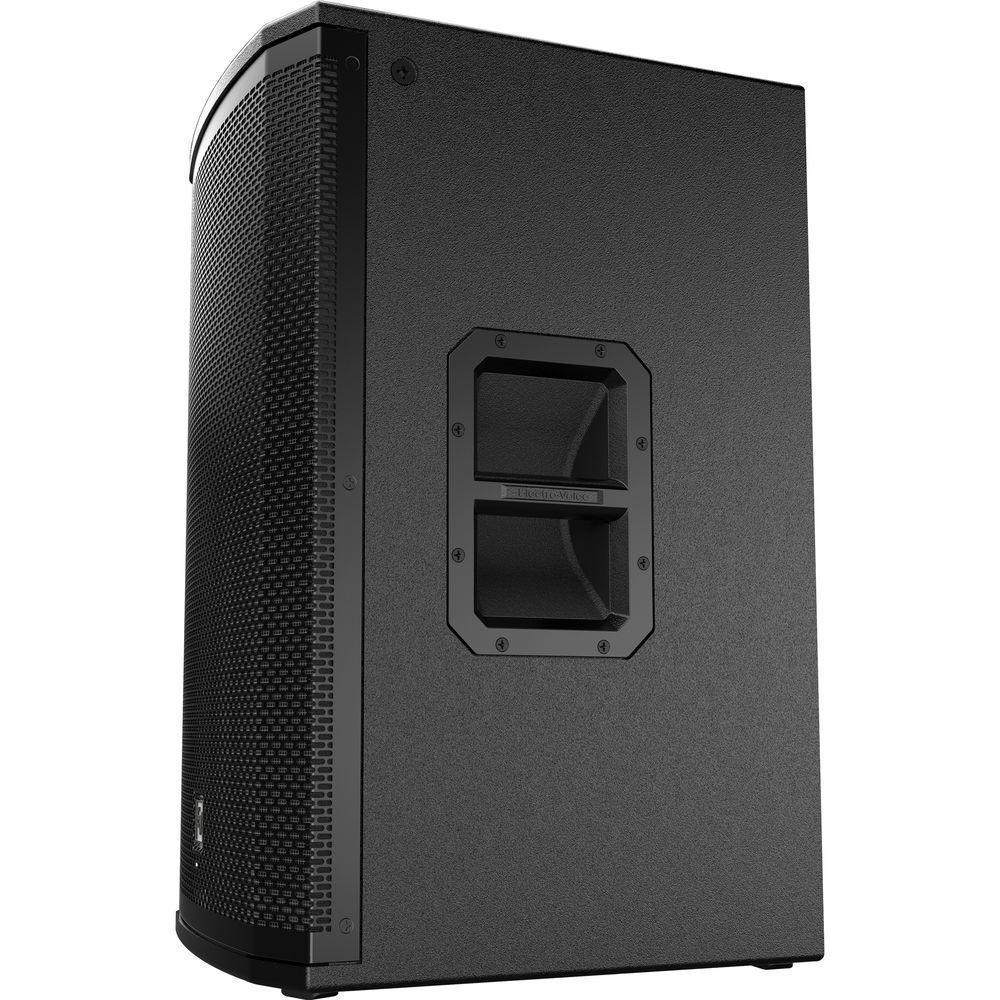

Featuring Electro-Voice's SST waveguide, the EXT-15P has a uniform beamwidth, allowing for even distribution of sound thanks to the time-alignment of the high and low-frequency transducers. Sturdy construction is provided in the form of the die-cast aluminum chassis, pole cup, and handles. - Signal Synchronized Transducers (SST) Waveguide Design
-
- The waveguide is placed forward in the enclosure to help physically time-align the LF and HF transducers, minimizing the need for latency correction via DSP
- Placing the port under the waveguide positions it in its ideal acoustic location in the enclosure without spacing the woofer and driver apart. The port location minimizes distortion and standing waves inside the loudspeaker
- All waveguides are optimized using simulation software and proprietary algorithms for precise control and lowest distortion
- High-Sensitivity, Low-Distortion Transducer Design
-
- All ETX woofers use Faraday rings for better vocal reproduction
- The woofers not only have high power handling but also feature a robust mechanical design to ensure long-term reliability
- EV focuses on engineering transducers with linear frequency response, minimizing the need for additional equalization
- Components and Testing
-
- All ETX components are designed from the ground up by Electro-Voice. No off-the-shelf components are used
- The handles, pole cups and amplifier chassis are die-cast aluminum, not plastic
- 18mm, 13-ply birch plywood with EVCoat is used throughout the ETX product line
- In addition to industry-standard pink noise abuse tests, all models must survive EV's proprietary 1,000-hour torture test that uses real-world signals driven beyond full output
- Processing and Control
-
- System DSP presets support quick and easy setup via selections for type of use, crossover frequencies and top/sub combinations
- ETX employs the same proprietary PAL and TEMP limiters developed for Electro Voice's concert loudspeakers
- Boundary compensation filters are included so that an ETX loudspeaker sounds the same whether it is used as a floor monitor, on a tripod or suspended from a ceiling
- ETX offers user-adjustable features including delay out to several hundred feet, three-band parametric equalization, polarity and multiple high-pass crossover points
- The Class-D design of the amplifier is designed to be efficient and features blower-controlled thermal management, allowing it to work in hot environments. The fan is of a quiet design and does not turn on under normal circumstances
- Lockout mode helps prevent casual users from changing settings

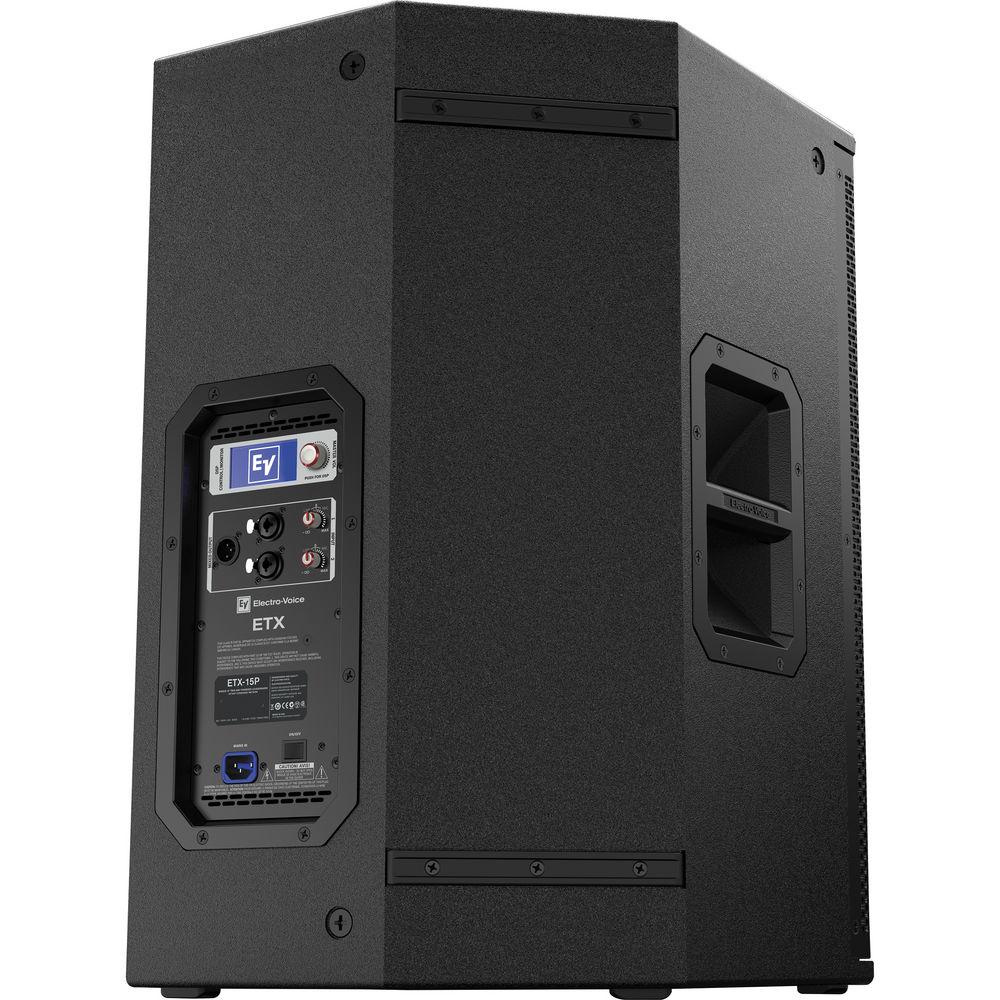

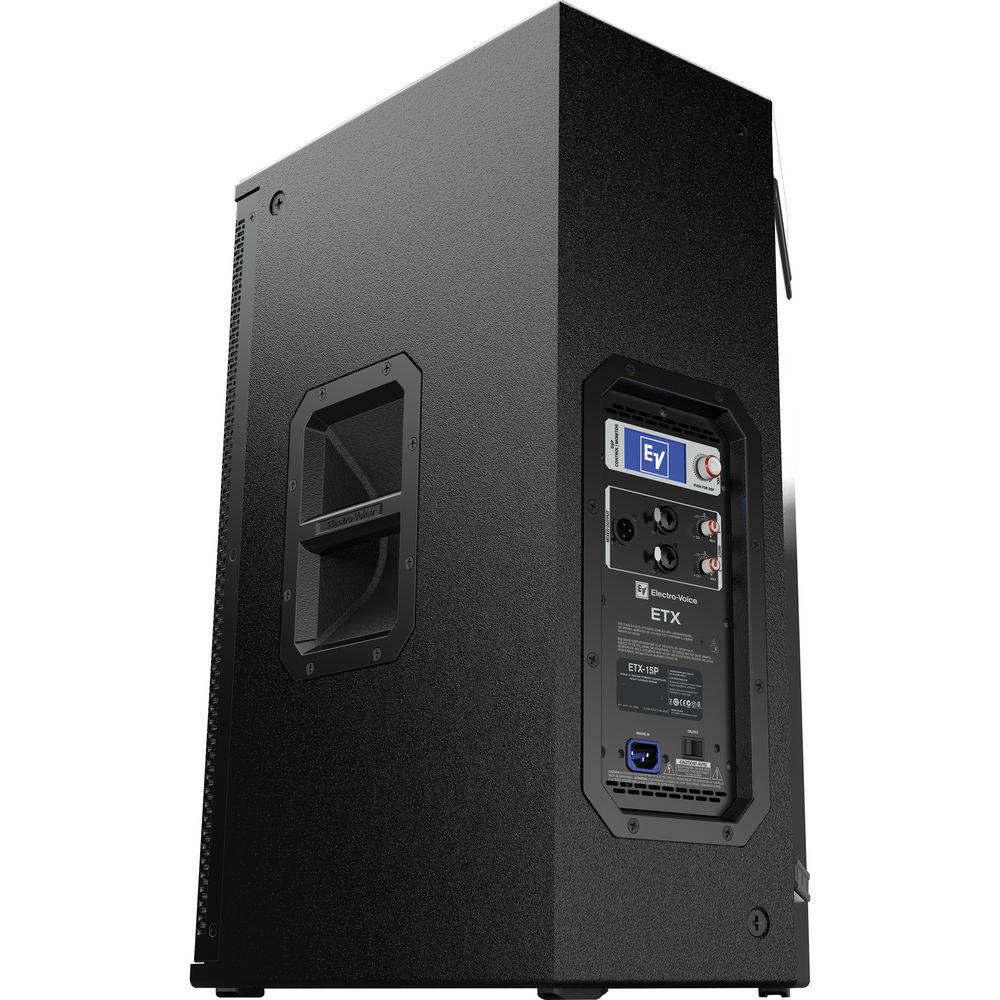

- LCD Interface
- Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure
UPC: 800549738910 In the Box Electro-Voice ETX-15P 15" Portable Powered Loudspeaker Limited 3-Year Warranty User Manual PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ETX-15P 15" Portable Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ETX-15P-US Specs | | | Configuration | Active | | Total Power Capacity | 2000 W | | | | HF Driver | 1 x 1.25" / 31.75 mm Titanium Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 48 Hz to 20 kHz -3 dB
40 Hz to 20 kHz -10 dB | | Maximum SPL | 135 dB (Peak) | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS
1 x XLR Thru/Output | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 0.8 to 1.6 A | | | | Mounting | 8 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 27.0 x 17.0 x 18.0" / 691.0 x 431.0 x 447.0 mm | | Weight | 61.1 lb / 27.7 kg | | | | Package Weight | 71.4 lb | | Box Dimensions (LxWxH) | 27.5 x 20.0 x 18.2" |
