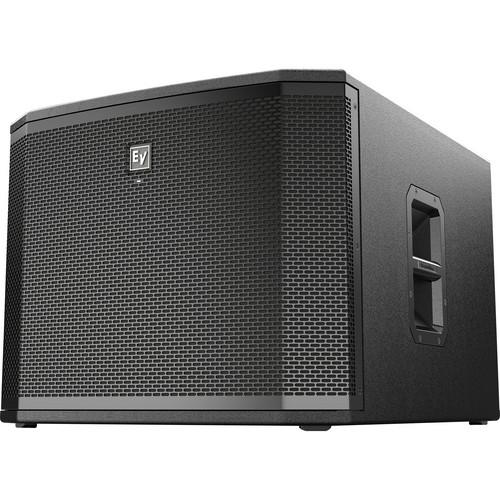

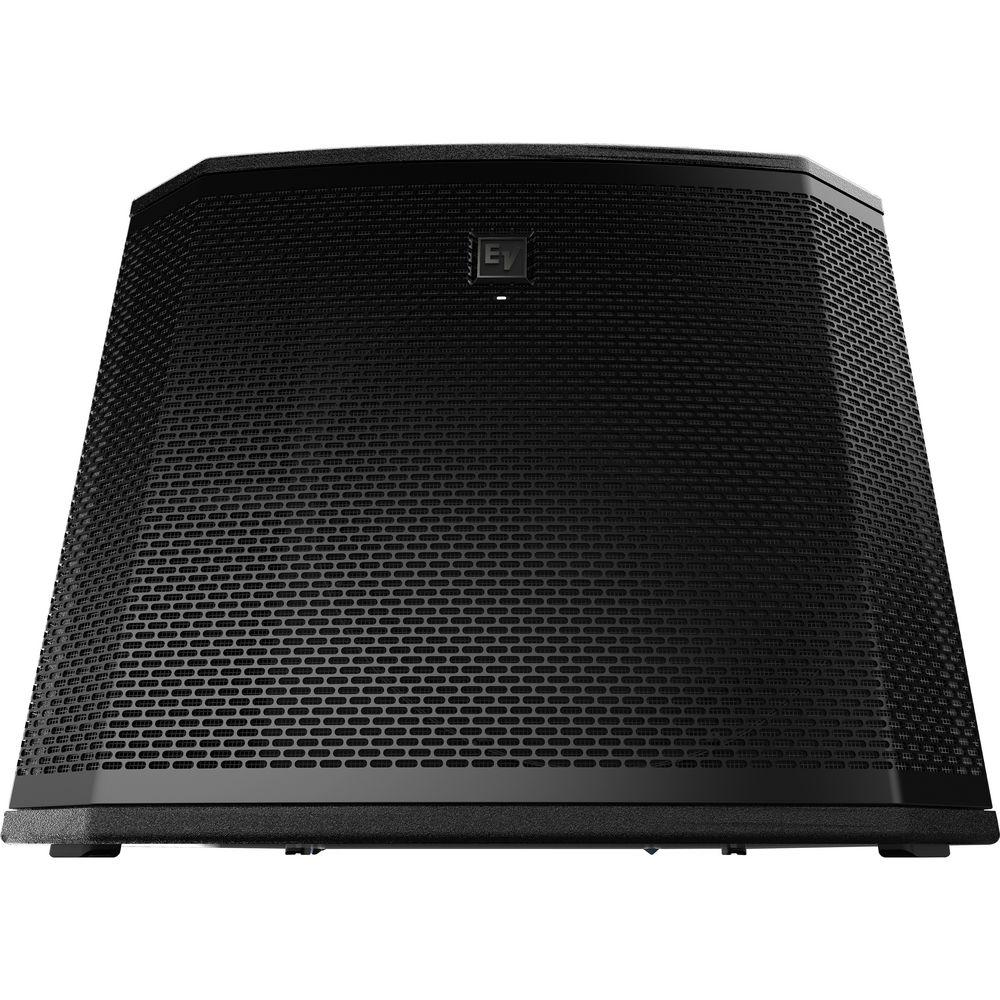

User Manual for Electro-Voice ETX-15SP 15", 1800W Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice ETX-15SP 15", 1800W Powered Subwoofer
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ETX-15SP 15", 1800W Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

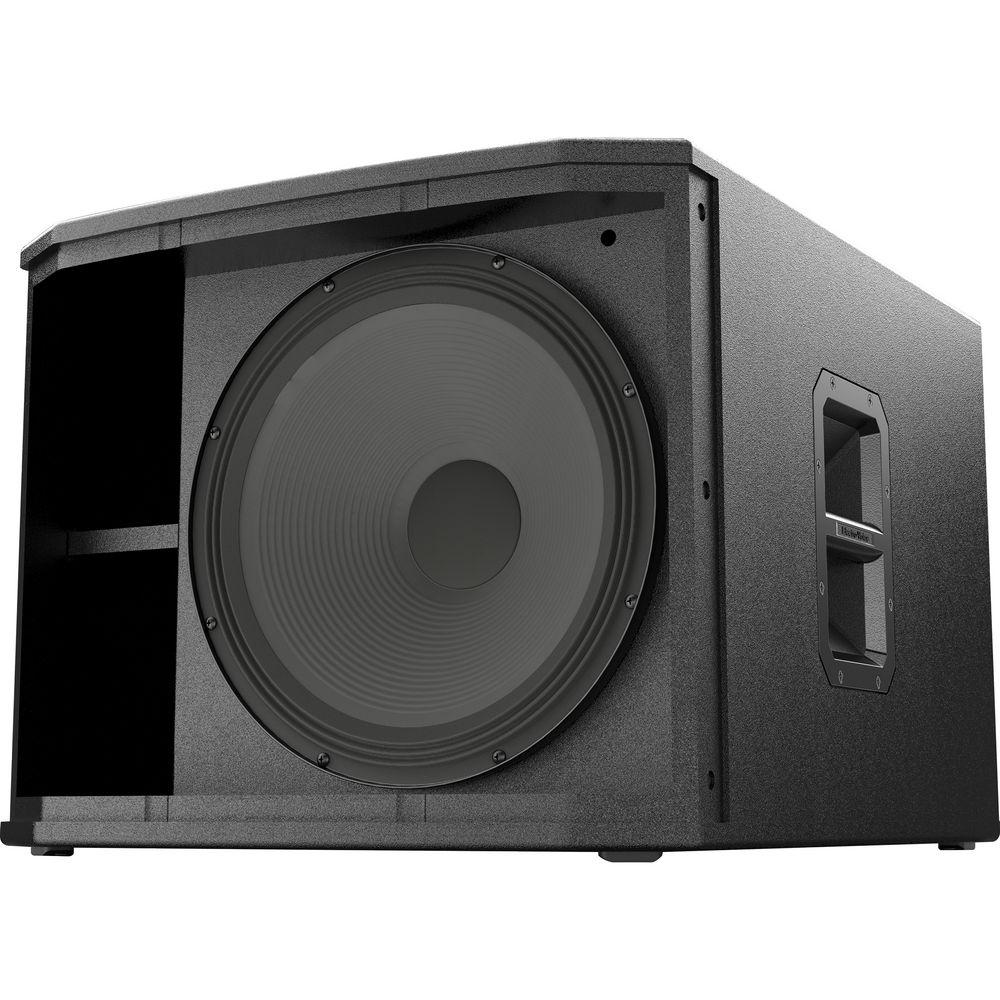

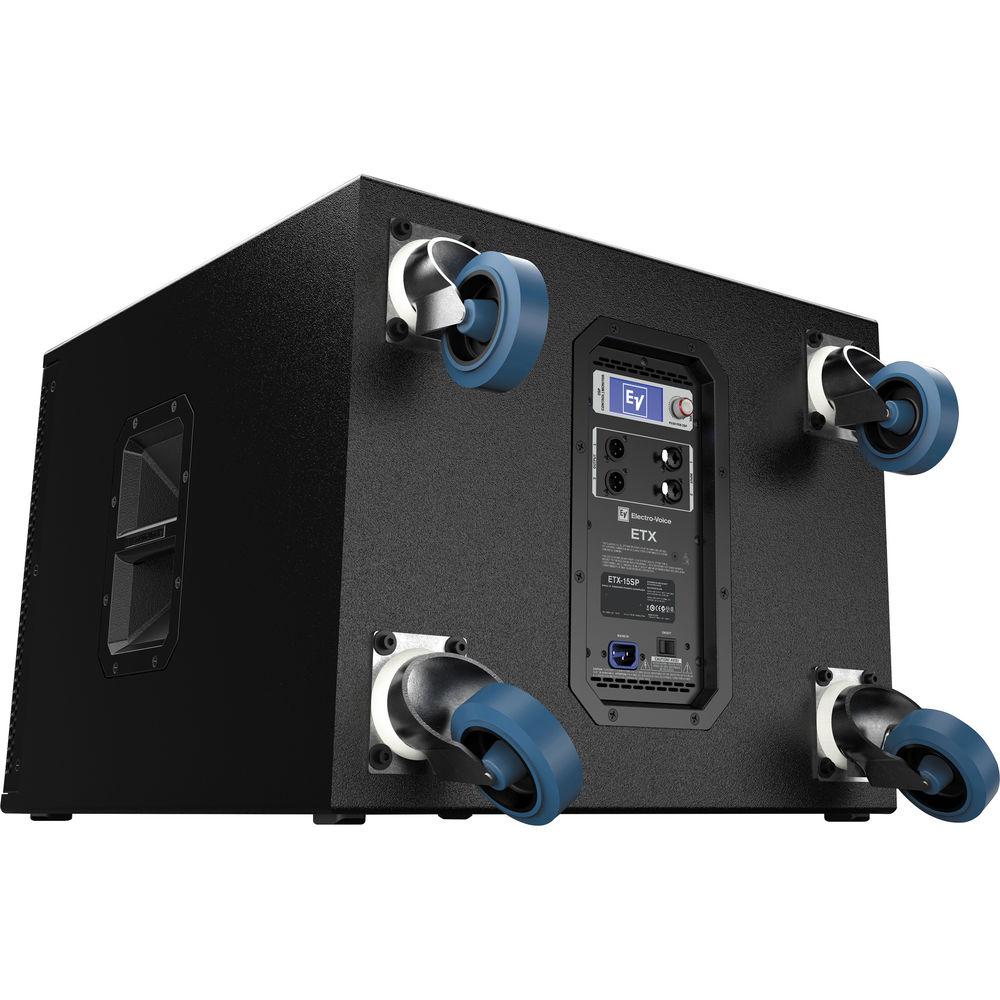

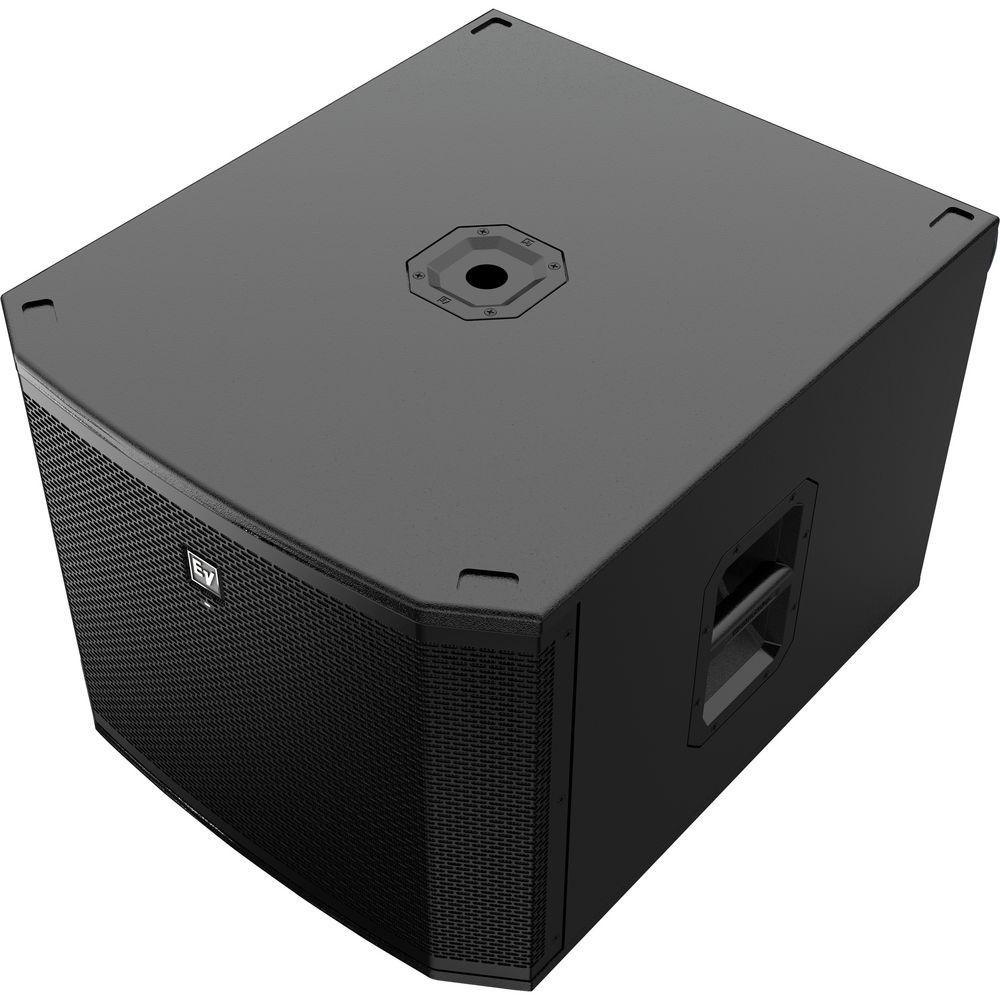

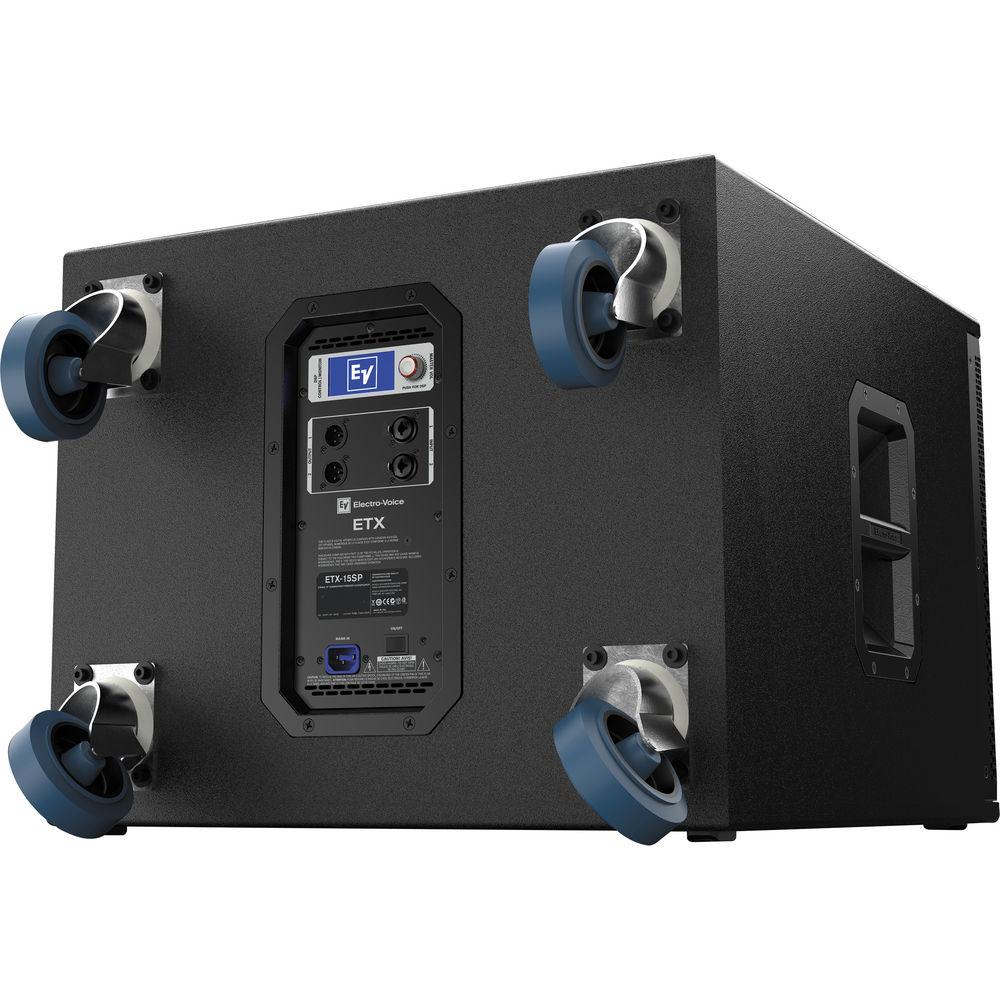

Product description The ETX-15SP 15", 1800W Powered Subwoofer from Electro-Voice is a portable powered Class-D subwoofer capable of up to 1800 watts of output power for a peak SPL rating of 134dB. It has an adjustable low-pass filter, allowing you to select from 80, 100, 120, or 150Hz. The subwoofer has integrated FIR-Drive DSP, including a preset for true cardioid output across its bandwidth. Its combo pole cup supports both insert and threaded inputs allowing it to be used with a variety of other loudspeakers. 4 removable casters are included for easy transport. - High-Sensitivity, Low-Distortion Transducer Design
-
- All ETX woofers use Faraday rings for better vocal reproduction
- The woofers not only have high power handling but also feature a robust mechanical design to ensure long-term reliability
- EV focuses on engineering transducers with linear frequency response, minimizing the need for additional equalization
- Components and Testing
-
- All ETX components are designed from the ground up by Electro-Voice. No off-the-shelf components are used

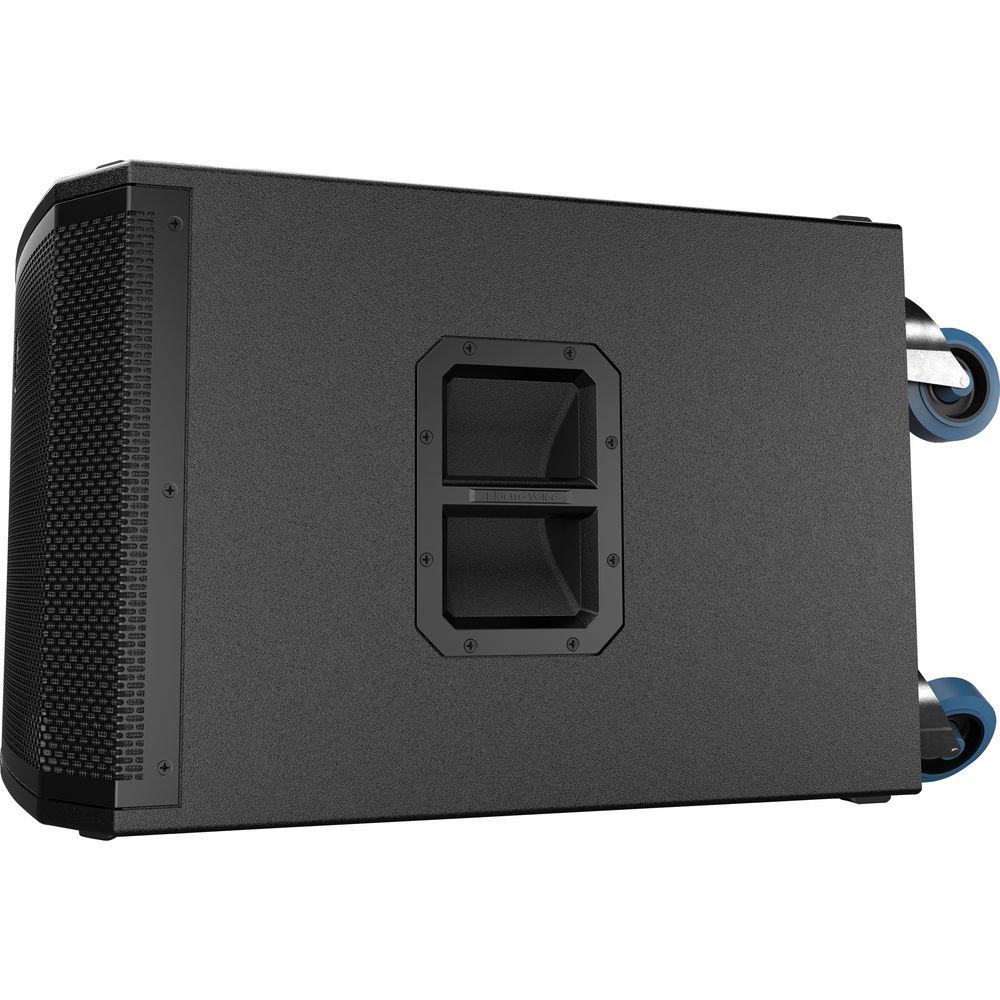

- The handles, pole cups and amplifier chassis are die-cast aluminum, not plastic
- 18mm, 13-ply birch plywood with EVCoat is used throughout the ETX product line
- In addition to industry-standard pink noise abuse tests, all models must survive EV's proprietary 1,000-hour torture test that uses real-world signals driven beyond full output
- Processing and Control
-
- System DSP presets support quick and easy setup via selections for type of use, crossover frequencies and top/sub combinations
- Includes a DSP preset for "true cardioid" configuration
- ETX employs the same proprietary PAL and TEMP limiters developed for Electro Voice's concert loudspeakers
- Boundary compensation filters are included so that an ETX loudspeaker sounds the same whether it is used as a floor monitor, on a tripod or suspended from a ceiling
- ETX offers user-adjustable features including delay out to several hundred feet, three-band parametric equalization, polarity and multiple high-pass crossover points
- The Class-D design of the amplifier is designed to be efficient and features blower-controlled thermal management, allowing it to work in hot environments. The fan is of a quiet design and does not turn on under normal circumstances
- Lockout mode helps prevent casual users from changing settings
- LCD Interface
- Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure
UPC: 800549738958 In the Box Electro-Voice ETX-15SP 15", 1800W Powered Subwoofer 4 x Removable Casters Limited 3-Year Warranty User Manual PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ETX-15SP 15", 1800W Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ETX-15SP-US Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1800 W | | | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Range | 32 Hz to 180 Hz -10 dB (Half-Space) | | Frequency Response | 37 Hz to 150 Hz -3 dB (Half-Space) | | Maximum SPL | 134 dB (Peak) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Input
2 x XLR Thru/Output | | | | Filters | Low-Pass:
80 Hz to 150 Hz 80 / 100 / 120 / 150 Hz | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 0.8 to 1.6 A | | | | Construction Material | Metal Grille, Plywood | | Dimensions | 19.0 x 23.0 x 32.0" / 471.0 x 576.0 x 825.0 mm (with Casters)
19.0 x 23.0 x 27.0" / 471.0 x 576.0 x 692.0 mm (without Casters) | | Weight | 91.9 lb / 41.7 kg | | | | Package Weight | 106.0 lb | | Box Dimensions (LxWxH) | 35.0 x 24.0 x 20.0" |
