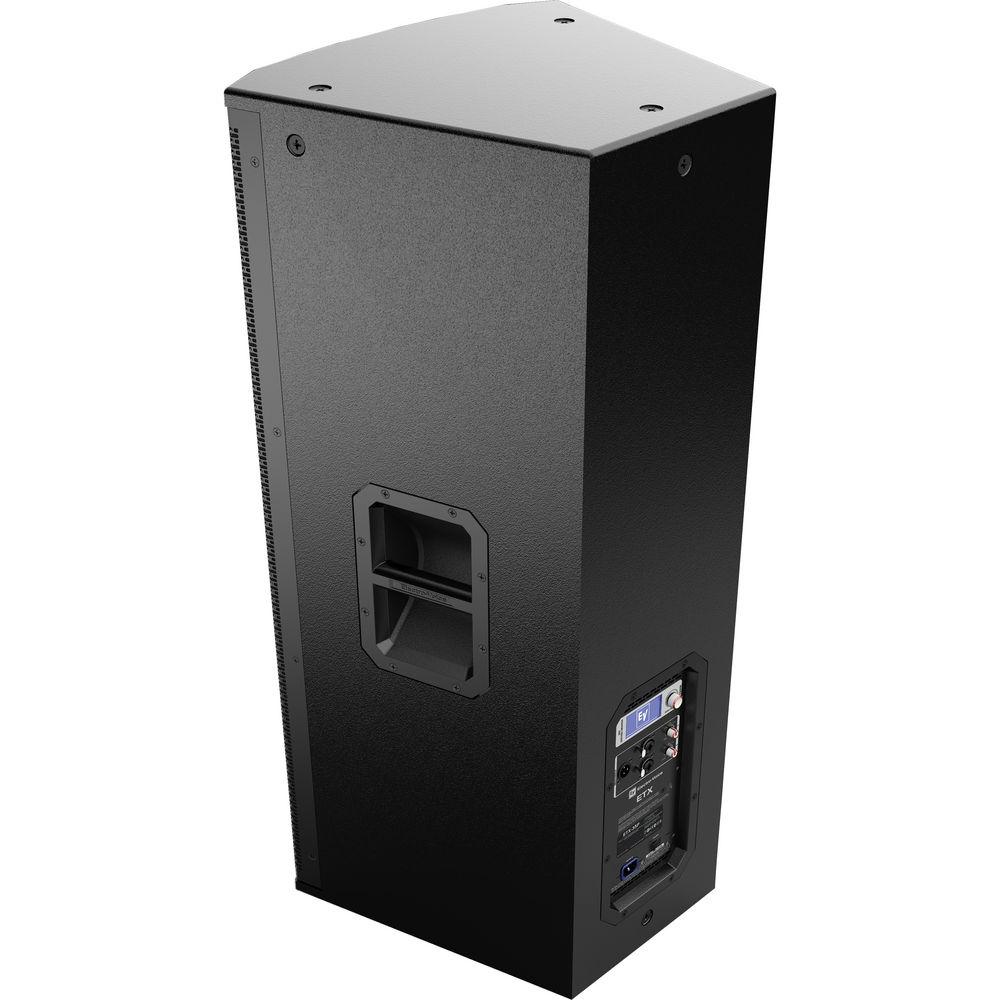

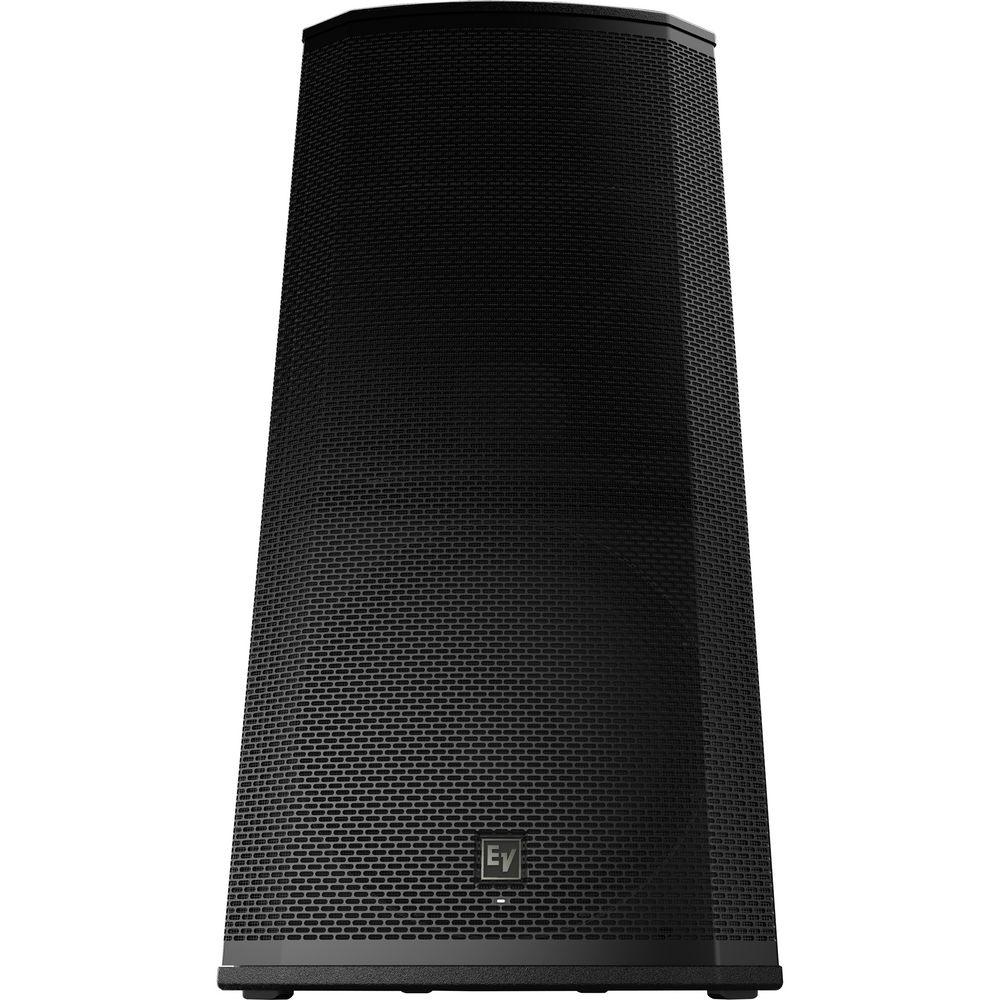

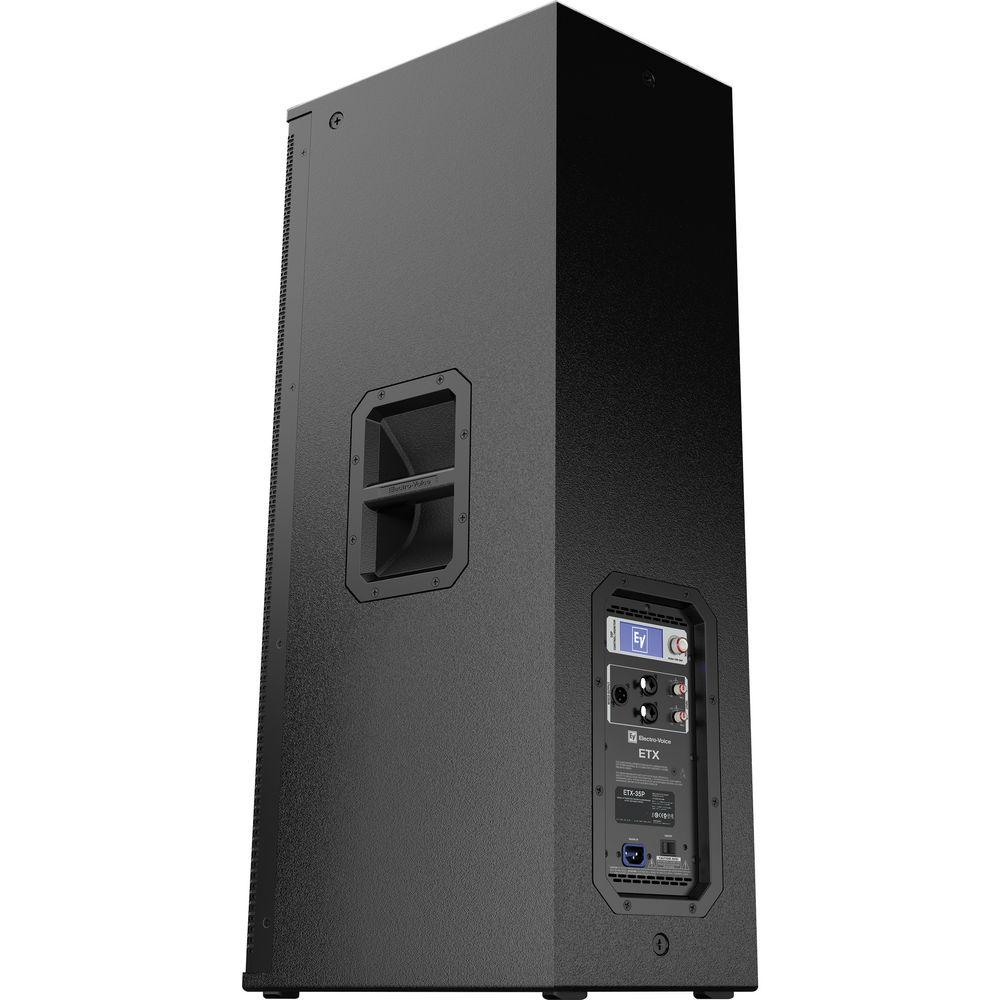

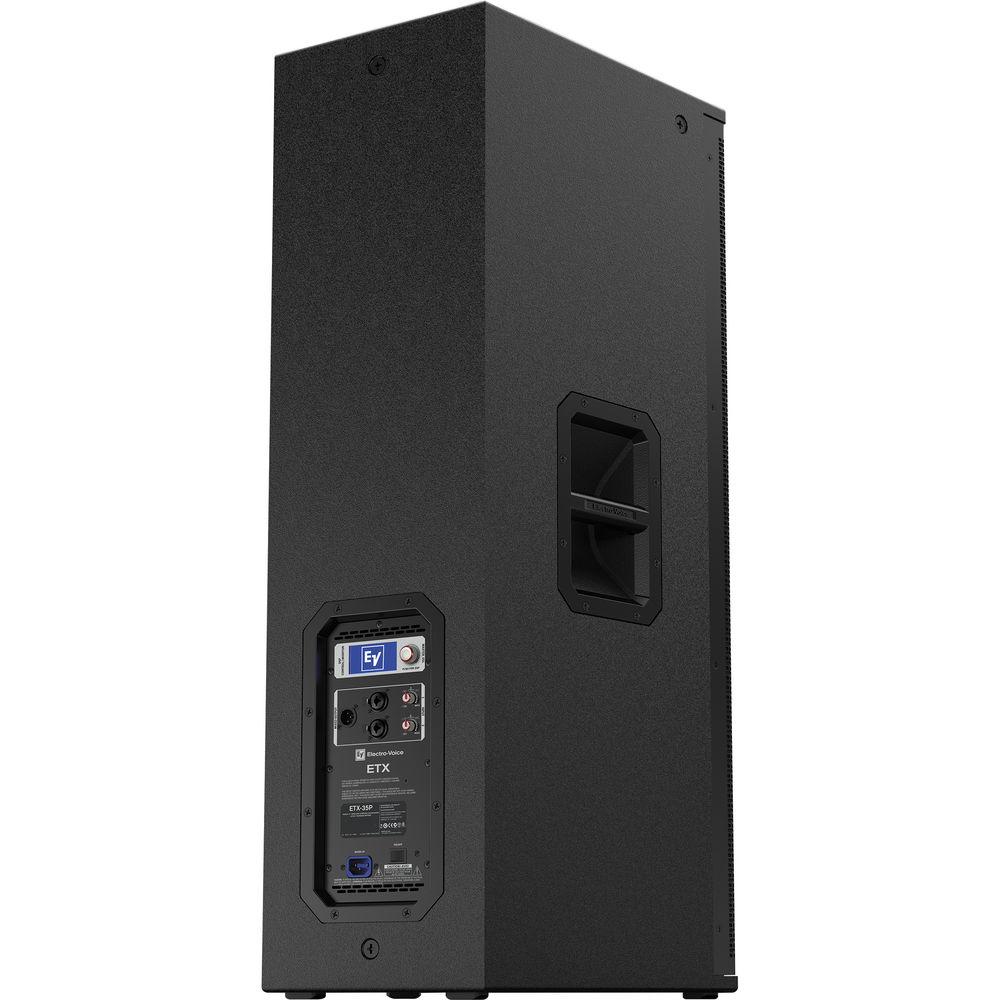

User Manual for Electro-Voice ETX-35P - Three-Way Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ETX-35P - Three-Way Powered Loudspeaker
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ETX-35P - Three-Way Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The ETX-35P from Electro-Voice is a high-power three-way loudspeaker that is suitable for a variety of portable and permanent applications. The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, selective voicing, protection limiters, EQ modes, and a lockout mode that prevents casual changes to the system. The system performance is optimized via an LCD screen and the front LED indicates power, or can be configured to indicate limit.
The high-sensitivity transducers have been optimized for precise coverage and low distortion. The subwoofer is manufactured using composite cone materials, flux stabilizing rings, and thermal management, yielding lower distortion, smooth response, and the ability to handle high SPL. The high-efficiency DH3-B compression driver (tweeter) has a convex diaphragm driving a coherent phase device, thereby extending frequency response to 20 kHz.
The company's FIR-Drive (Finite Impulse Response) technology utilized the latest filter technology to optimize transducer linearity, and advanced limiter algorithms for independent peak and thermal transducer protection. The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat. Designed for floor, stacked, or a combo pole cup installation, the speaker also features eight M10 threaded suspension points. - Three-way loudspeaker that can be used in a variety of portable and permanent applications
- Optimized for precise coverage and low distortion
- 2000 W amplifier and 136 dB peak SPL
- Single-knob DSP includes presets for multiple configurations and top+sub combinations (performance style, locations, and space)
- System performance monitoring via integrated LCD and front panel LED

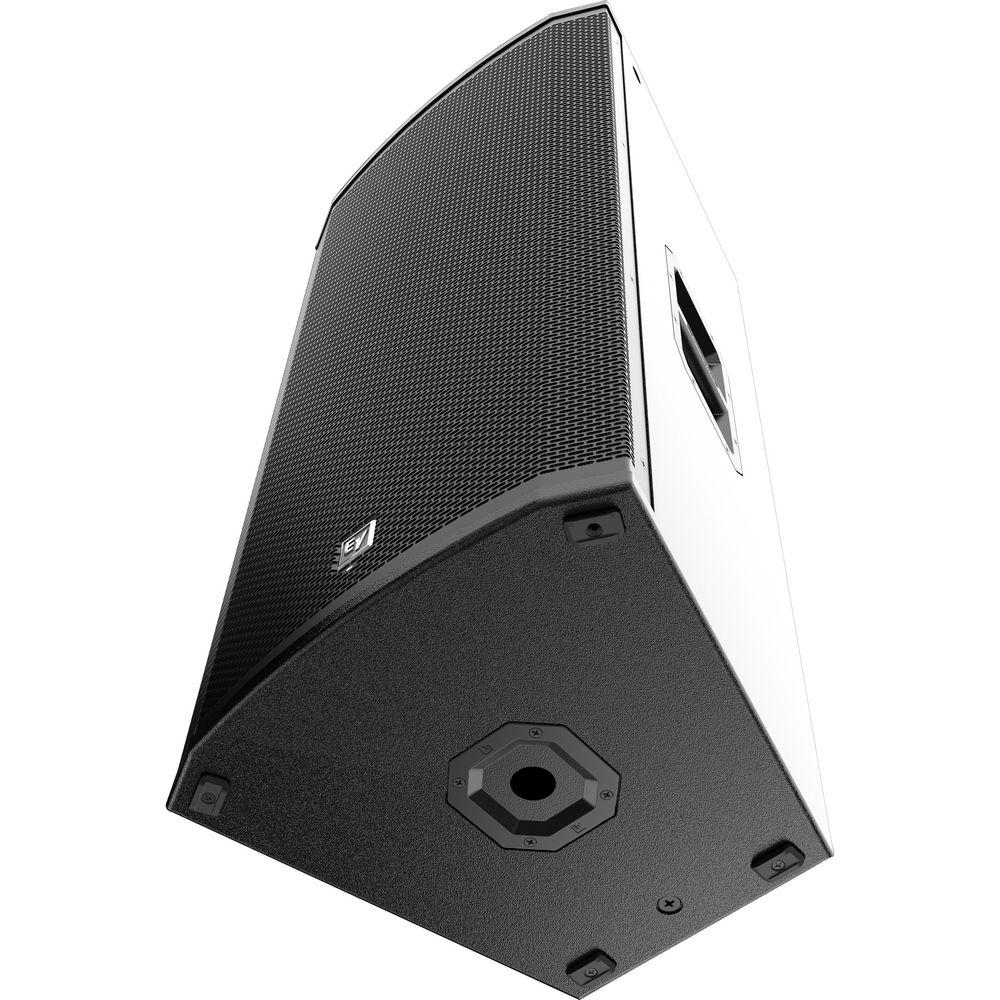

- Designed for floor, stacked, or a combo pole cup (insert and threaded)
- Eight M10 threaded suspension points
UPC: 800549738934 In the Box Electro-Voice ETX-35P - Three-Way Powered Loudspeaker AC Power Cable Three (3) Year Limited Warranty User Manual PDF 6.8mbrtbwbtzstazdwaacbq Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ETX-35P - Three-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ETX-35P-US Specs | | | Configuration | Active 3-Way | | Total Power Capacity | 2000 W | | | | HF Driver | 1 x 1.25" / 32 mm Titanium Compression Driver | | MF Driver | 1 x 6.5" / 165 mm | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Range | 38 Hz to 20 kHz -10 dB | | Frequency Response | 48 Hz to 20 kHz -3 dB | | Maximum SPL | 136 dB (Peak) | | Coverage Angle | 60° H x 40° V | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Line Input
1 x XLR Thru/Output | | | | Crossover | Low-Pass:
700 Hz
High-Pass:
2.9 kHz | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 0.8 to 1.6 A | | | | Mounting | 8 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 18.0 x 17.0 x 40.0" / 1023.0 x 469.0 x 426.0 mm | | Weight | 84.2 lb / 38.2 kg | | | | Package Weight | 96.5 lb | | Box Dimensions (LxWxH) | 41.5 x 21.0 x 18.0" |
